Jungheinrich ECP 100-3 - Checking the Transmission Oil Level; Changing the Transmission Oil

0803.GB
F 10
6.5 Checking the transmission oil level / changing the transmission oil
f
Always be especially careful when handling consumption-type materials.
Always heed section 5.1.
A
Change the transmission oil when the truck is at operating temperature.
– Start up the truck (refer to chapter E).
– Set the drive wheel to a 90° position (to the right as seen in the direction of the
drive); the transmission can be seen through the opening provided for servicing (7).
– Prepare the truck for the servicing and maintenance operations
(refer to section 6.1).
– If necessary, drain the transmission oil. To do so, unscrew the drain plug for trans-
mission oil (8).
A

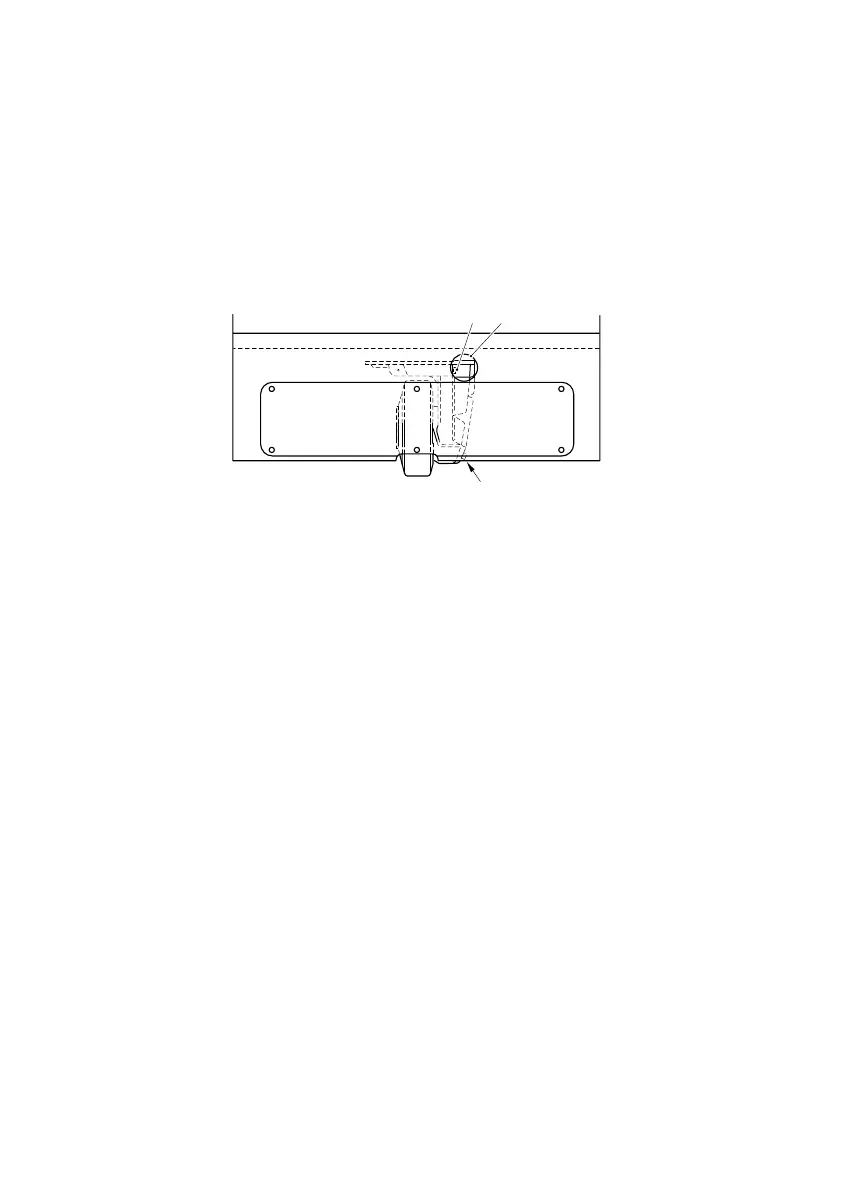

The filler plug for transmission oil can be accessed through the bore hole provided for
servicing (7).
– Unscrew the plug (6) and top up the transmission oil until the oil reaches the upper
edge of the opening.
– Then screw the drain plug for transmission oil (8) in again.
6 7
8
0803.GB
F 10
6.5 Checking the transmission oil level / changing the transmission oil
f
Always be especially careful when handling consumption-type materials.
Always heed section 5.1.
A
Change the transmission oil when the truck is at operating temperature.
– Start up the truck (refer to chapter E).
– Set the drive wheel to a 90° position (to the right as seen in the direction of the
drive); the transmission can be seen through the opening provided for servicing (7).
– Prepare the truck for the servicing and maintenance operations
(refer to section 6.1).
– If necessary, drain the transmission oil. To do so, unscrew the drain plug for trans-
mission oil (8).
A
The filler plug for transmission oil can be accessed through the bore hole provided for
servicing (7).
– Unscrew the plug (6) and top up the transmission oil until the oil reaches the upper
edge of the opening.
– Then screw the drain plug for transmission oil (8) in again.
6 7
8
