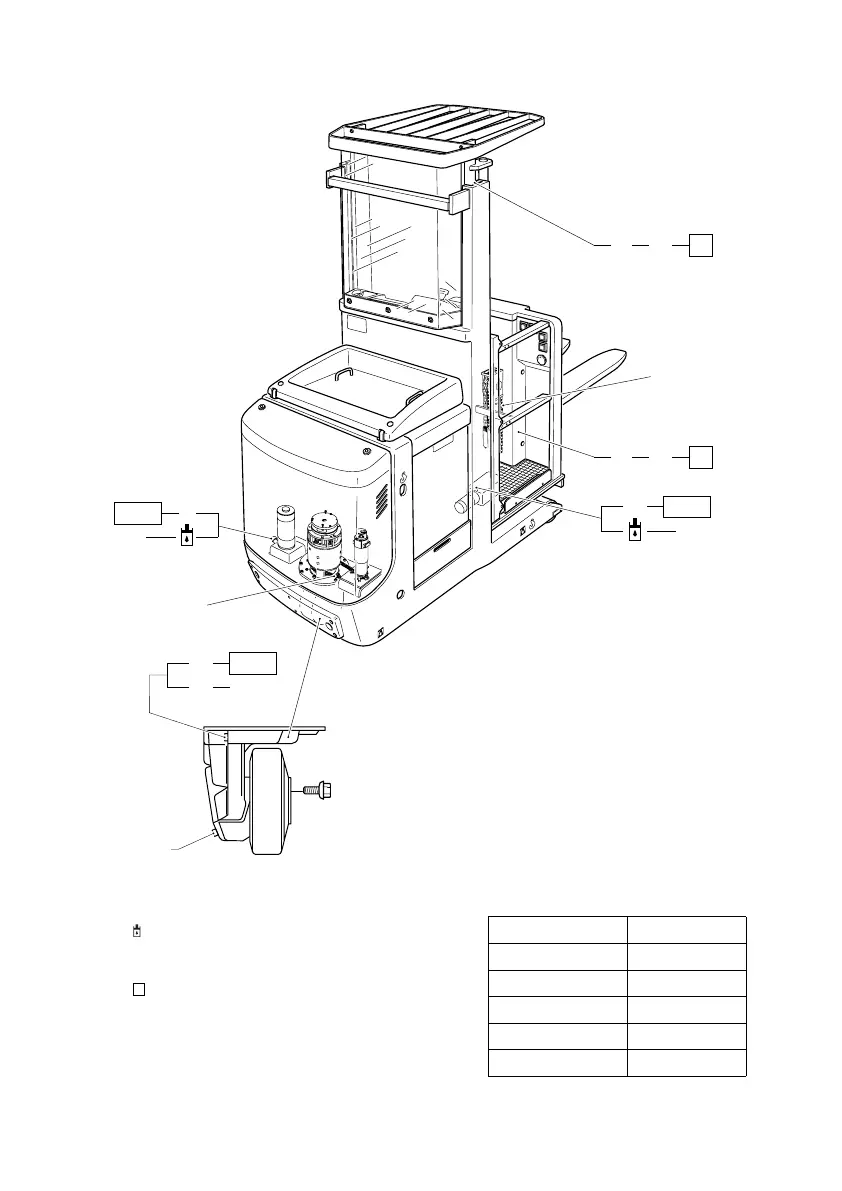

5 Lubrication schedule
g Gliding surfaces
s Grease nipples
Filler plug for hydraulic oil
b Filler plug for transmission oil
a Drain plug for transmission oil
Cold store usage
1)
Compound for cold store usage 1:1
2)
See the table for the filling level
a
b
B
G
1,4 l
B+C
1)
G
AA+C
2)
A
2 l
A+C
1)
Eg F
Eg F
M = 110 Nm
Hydraulic oil filling leve
Lift. height in mm Filling level in l
1000 2.3
1600 3.7
1900 4.2
2400 8.9
2900 10.1
0803.GB
F 6
5 Lubrication schedule
g Gliding surfaces
s Grease nipples
Filler plug for hydraulic oil
b Filler plug for transmission oil
a Drain plug for transmission oil
Cold store usage
1)
Compound for cold store usage 1:1
2)
See the table for the filling level
a
b
B
G
1,4 l
B+C
1)
G
AA+C
2)
A
2 l
A+C
1)
Eg F
Eg F
M = 110 Nm
Hydraulic oil filling leve
Lift. height in mm Filling level in l
1000 2.3
1600 3.7
1900 4.2
2400 8.9
2900 10.1
