6.4 Checking the hydraulic oil level
– Prepare the vehicle for maintenance and servicing
(see Section 6.1)
– Open the front cover
(see Section 6.2)
– Check the hydraulic oil level in the hydraulic oil tank (10).

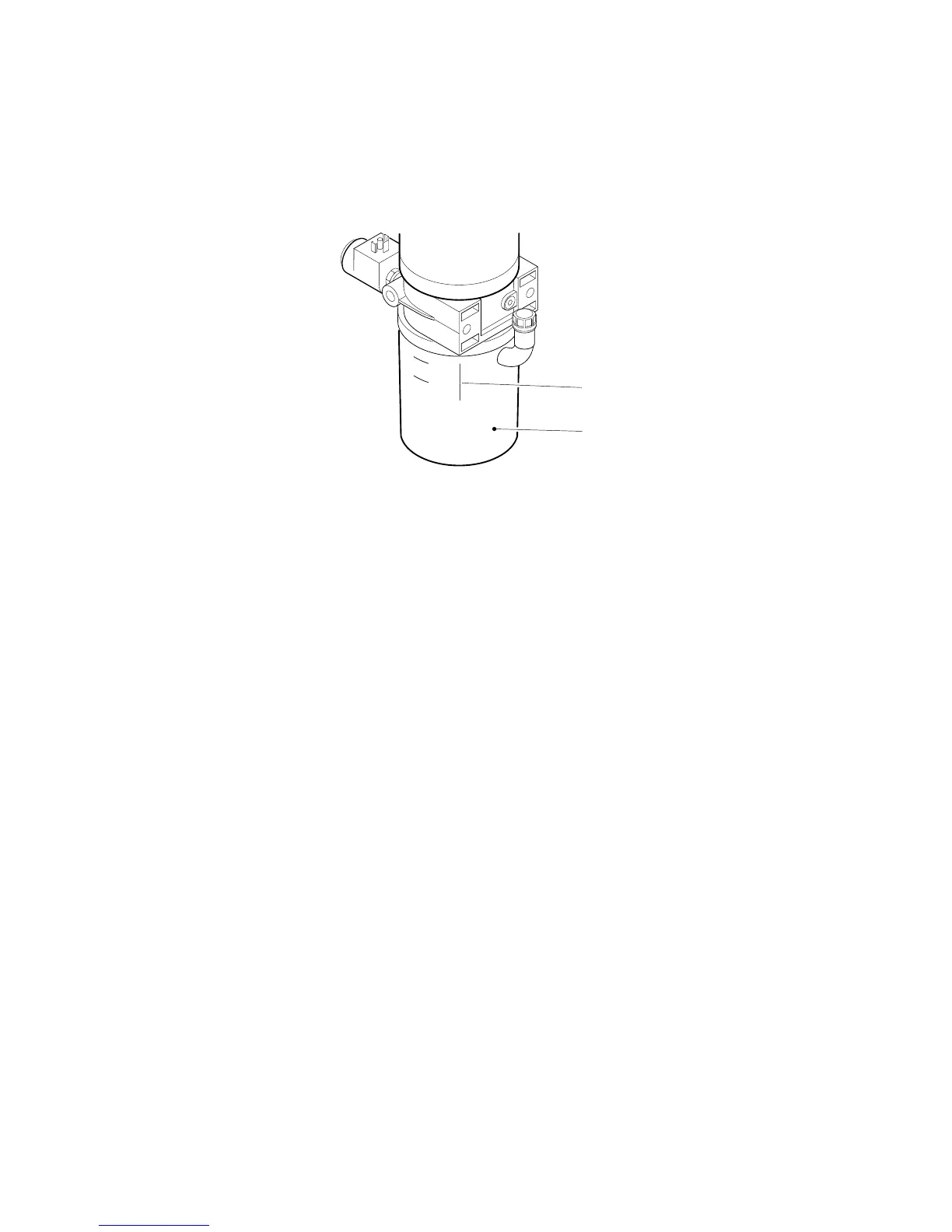

QwK There are markers (9) on the hydraulic oil tank. With the fork lowered, the oil
level must be between the "max." and "min." markers.
If necessary, top up with hydraulic oil of the correct specification as far as the "max."
marker (hydraulic oil specification, see Section 5.1).
min
max
10
9
