CAUTION: The maximum torque rating of the terminal screws on the DC power
supply is 9 lb-in. (1.02 Nm). The terminal screws may be damaged if excessive torque
is applied. Use only a torque-controlled driver to tighten screws on the DC power
supply terminals. Use an appropriately sized driver, with a maximum torque capacity
of 9 lb-in. or less. Ensure that the driver is undamaged and properly calibrated and
that you have been trained in its use. You may wish to use a driver that is designed
to prevent overtorque when the preset torque level is achieved.
7. Replace the clear plastic cover over the terminals on the faceplate.
8. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the strap to
an approved site ESD grounding point. See the instructions for your site.
9. Connect each DC power cable to the appropriate external DC power source.
NOTE: For information about connecting to external DC power sources, see the instructions
for your site.
10. Switch on the external circuit breakers to provide voltage to the DC power source cable leads. Observe
the system LED on front of the router. If the DC power cable is correctly installed and functioning
normally, the system LED lights green steadily. If the system LED is not lit, the power supply is not
functioning normally. Repeat the installation and cabling procedures.

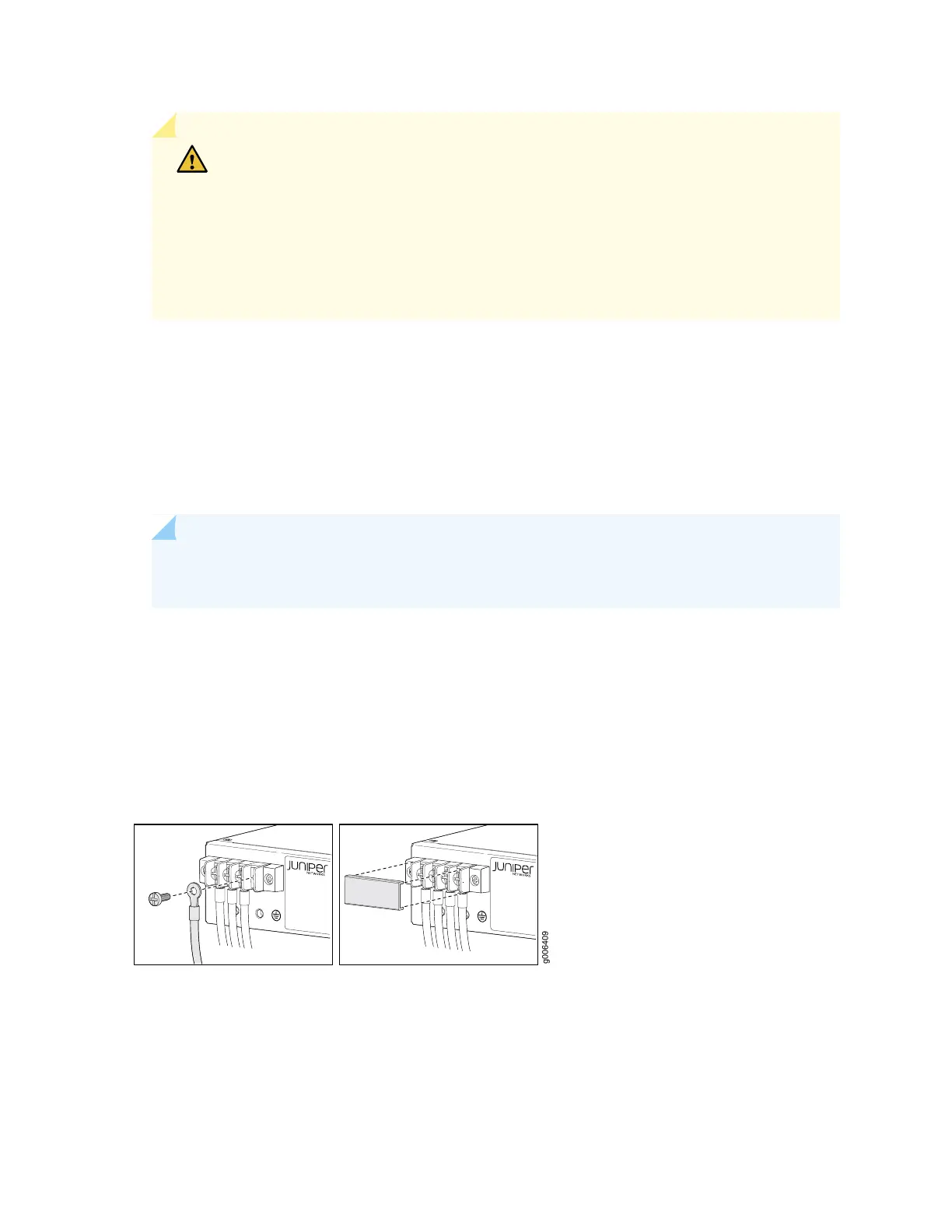

Figure 10: Connecting DC Power to the Router
20
