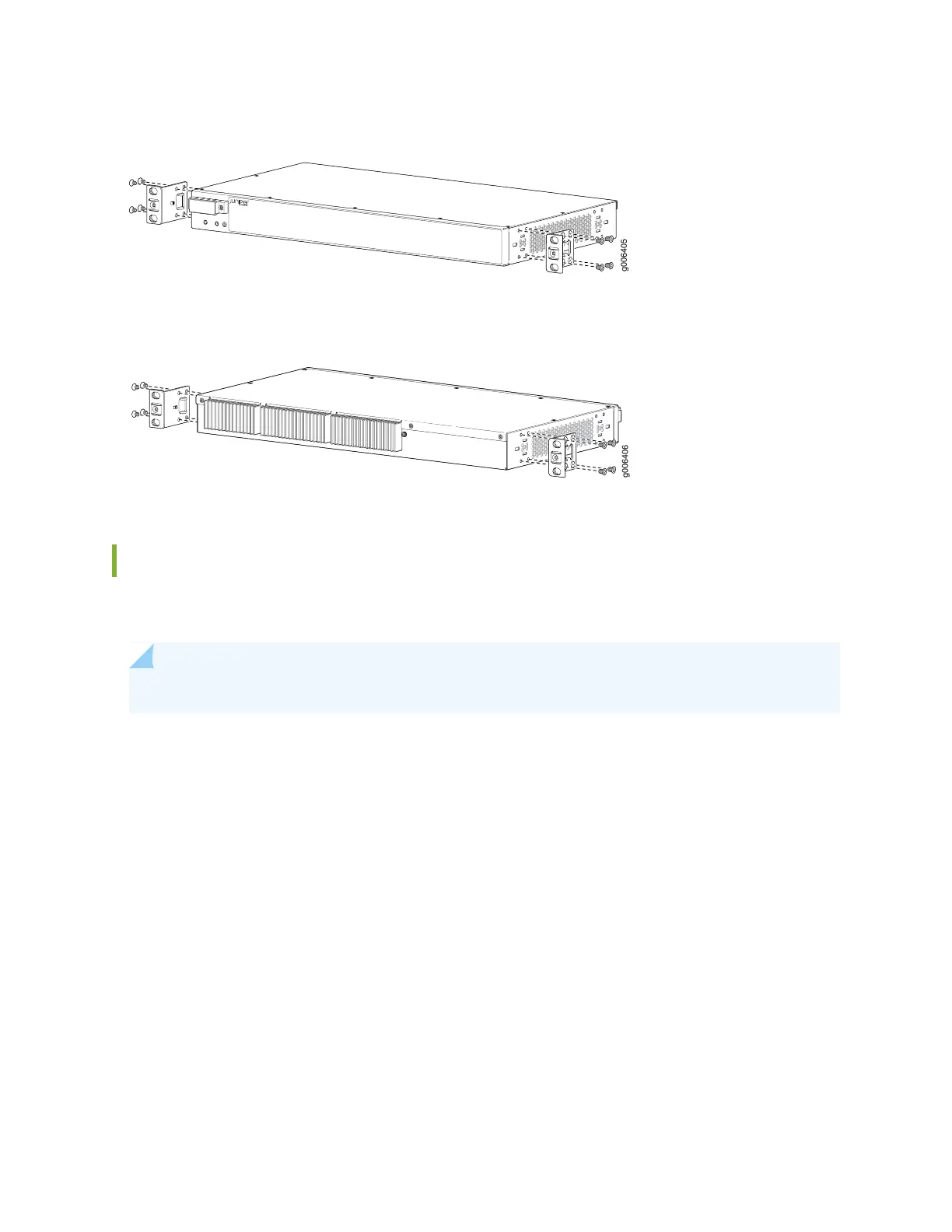

Figure 5: Installing the Mounting Brackets to the Front of the ACX Series Router
Figure 6: Installing the Mounting Brackets to the Rear of the ACX Series Router
Install the ACX Series Router in the Rack
The router can be installed horizontally in a rack or cabinet.
NOTE: For additional installation options, contact JTAC.
One person must be available to lift the router while another secures the router to the rack. The chassis
weighs approximately 7 lb (3.2 kg). To install the chassis (see Figure 7 on page 10):
1. Ensure that the rack is in its permanent location and is secured to the building. Ensure that the installation
site allows adequate clearance for both airflow and maintenance.
2. Position the router in front of the rack or cabinet.
3. Have one person grasp both sides of the router, lift the router, and position it in the rack, aligning the
mounting bracket holes with the threaded holes in the rack rails. Make sure the chassis is level.
9
