CAUTION: Do not mix different types of airflow modules in the same chassis. The fan modules and
PSMs must be of the same airflow type (AFO or AFI).
Tools Required to Prepare the ACX5400 Router for Installation
•
ESD grounding strap (not provided).
•
One pair of rear-mounting blades (provided). These mounting blades support the rear of the chassis and must be installed.
•
One pair of front-mounting rails, with mounting brackets attached at one end (provided). The mounting rails accommodate
the mounting blades that slide into the rails.
•
Twelve screws to secure the mounting rails to the chassis (provided).
•
Eight screws to secure the chassis and mounting blades to the rack (not provided).
•
Appropriate screwdriver for the mounting screws (not provided).
•
Two power cords with plugs appropriate for your geographical location (provided).
•
RJ-45 cable and RJ-45 to DB-9 serial port adapter (provided).
•
Management host, such as a PC laptop, with a serial port (not provided).
Step 2: Install the ACX5400 Chassis in the Rack
To install the router in a four-post rack or cabinet:
1. Position the router in front of the rack or cabinet.
2. Wrap and fasten one end of the ESD grounding strap around your bare wrist, and connect the other end of the strap
to the ESD point on the chassis.
3. Align the holes in the front-mounting rails with the holes on the side of the chassis (see Figure 16 for ACX5448,
Figure 17 for ACX5448-D, and Figure 18 for ACX5448-M).

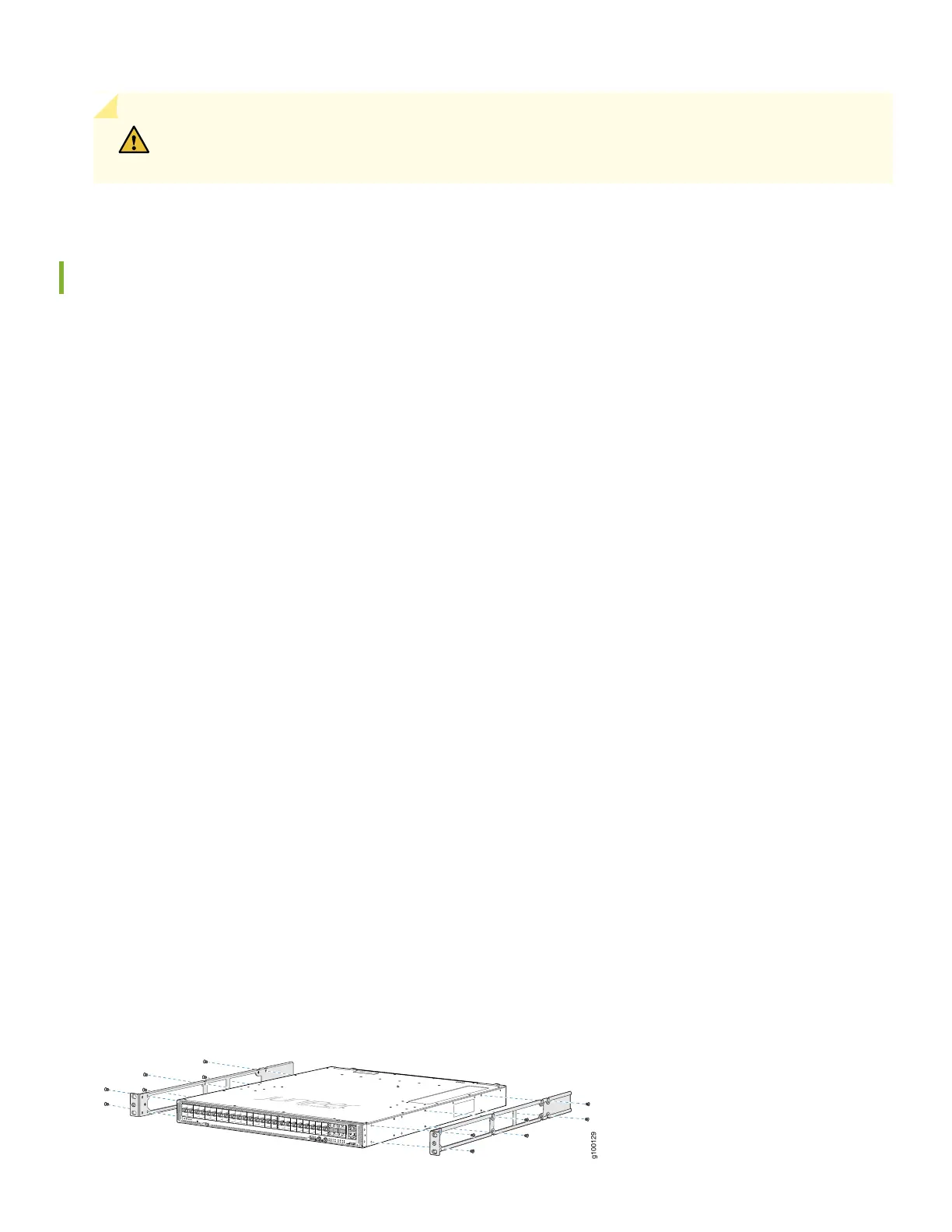

Figure 16: Install Mounting Rails on an ACX5448 Router
