Juniper AP64 - Page 30

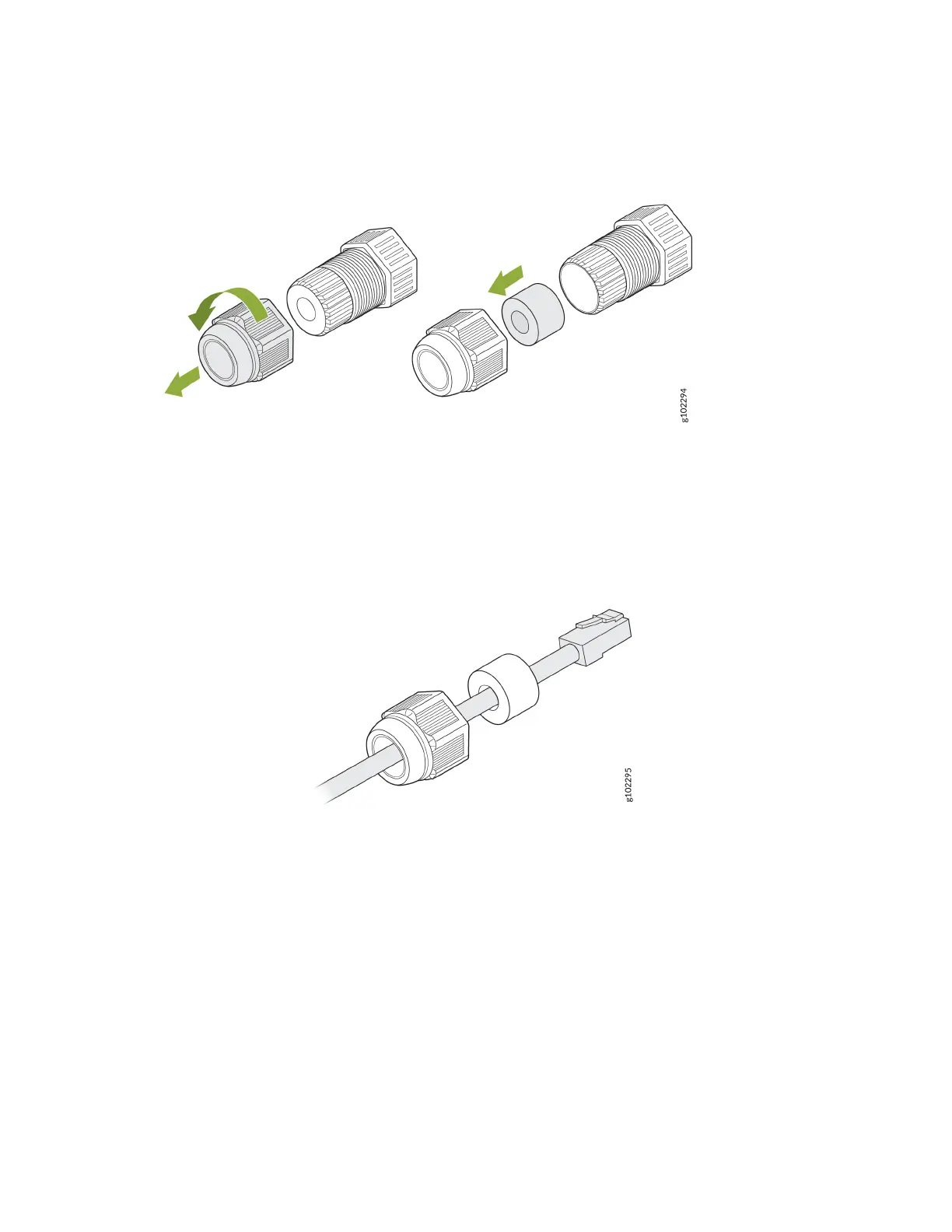

Figure 25: Disassemble an RJ-45 Cable Gland
2. Insert the RJ-45 cable through the cable gland:
a. Open the seal and insert the RJ-45 cable through the nut and the seal.
Figure 26: Insert the RJ-45 Cable Through the Nut and the Seal of the Cable Gland
b. Push the RJ-45 cable through the cable gland. Push the seal into the cable gland and loosely
ghten the nut.
26
