Juniper AP64 - Page 31

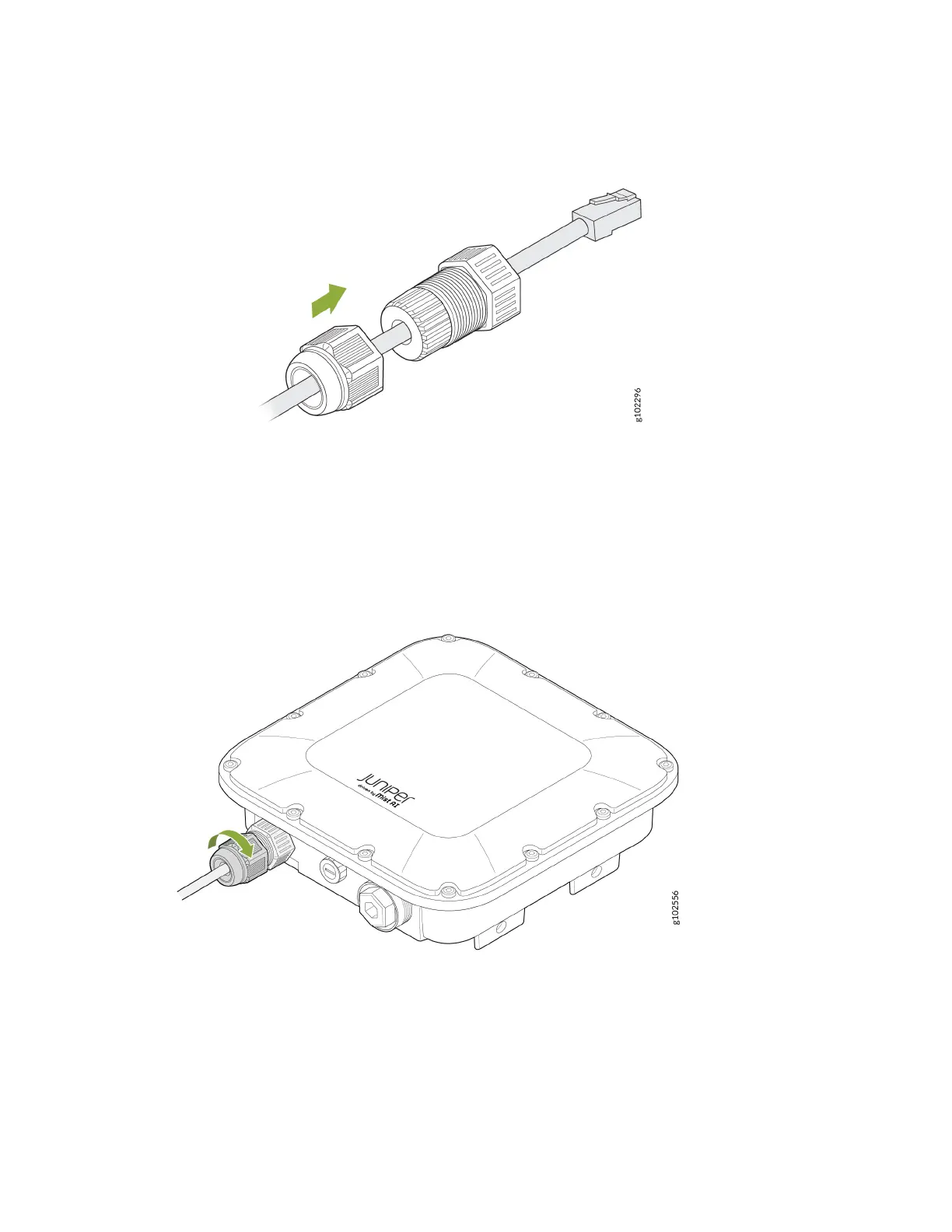

Figure 27: Push the RJ-45 Cable Through the Cable Gland
3. Connect the RJ-45 cable to the AP port. Aach the cable gland to the AP and ghten it with a torque
of 10–12 kg-cm. Then, fully ghten the nut to the cable gland with a torque of 7–10 kg-cm.
Figure 28: Aach a Cable Gland to the AP64
27
