Juniper SRX340 Quick Start

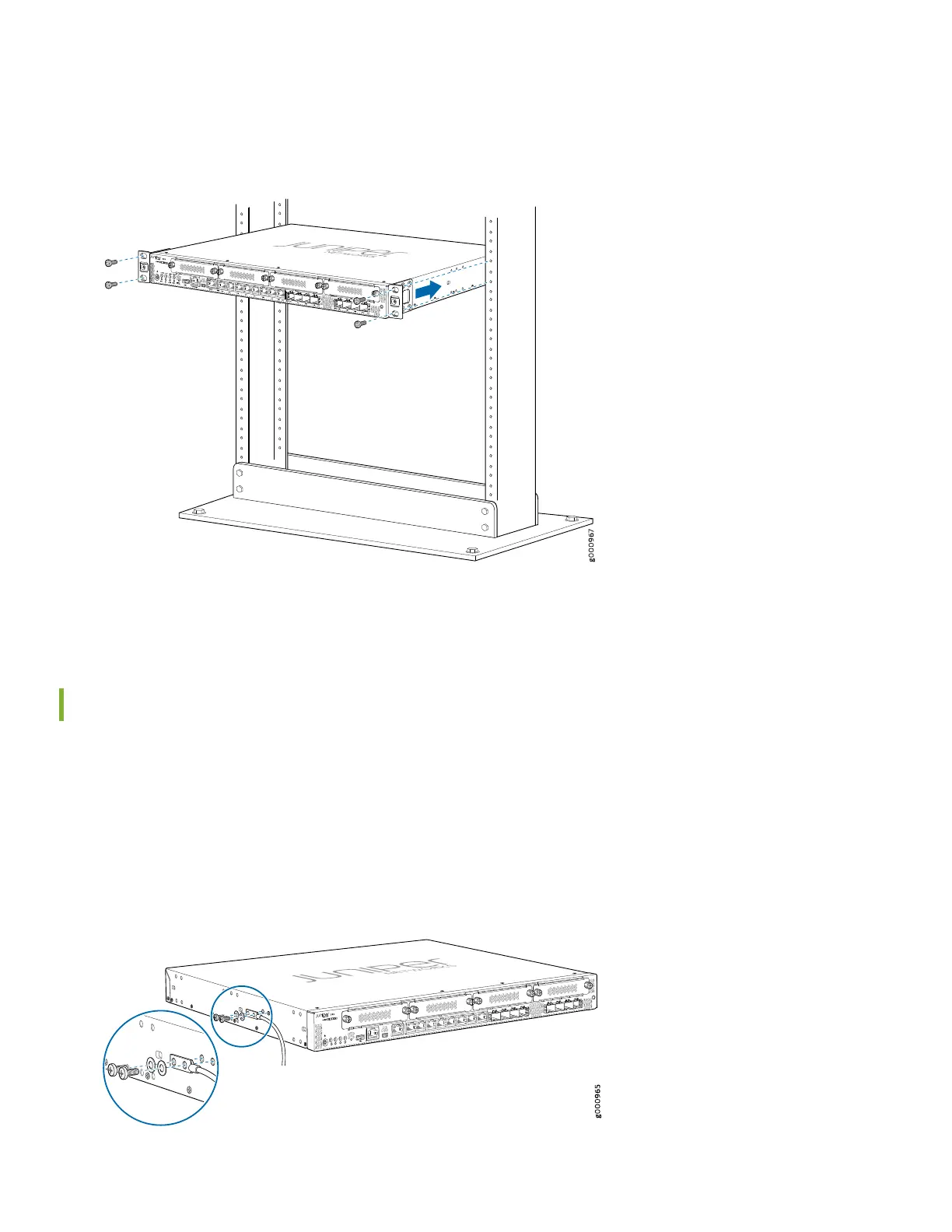

5. While you’re holding the SRX340 in place, have a second person insert and tighten the rack mount screws to secure
the mounting brackets to the rack. Make sure to tighten the screws in the two bottom holes first and then tighten the
screws in the two top holes.
6. Check that the mounting brackets on each side of the rack are level.
Power On
Now that you’ve installed your SRX340 in the rack, you’re ready to connect it to power.
1. Wrap and fasten one end of the electrostatic discharge (ESD) grounding strap around your bare wrist, and connect the
other end to a site ESD point.
2. Attach a grounding cable to earth ground, and then attach the other end to the grounding point on the side panel of
the SRX340.
4

Juniper SRX340 Specifications

General

Firewall Throughput	3 Gbps
Maximum Concurrent Sessions	256, 000
Memory	4 GB
Redundant Power Supplies	No
Operating Temperature	32°F to 104°F (0°C to 40°C)
Humidity	10% to 90% non-condensing
Storage	8 GB
