Connecting a Device to a Network  31

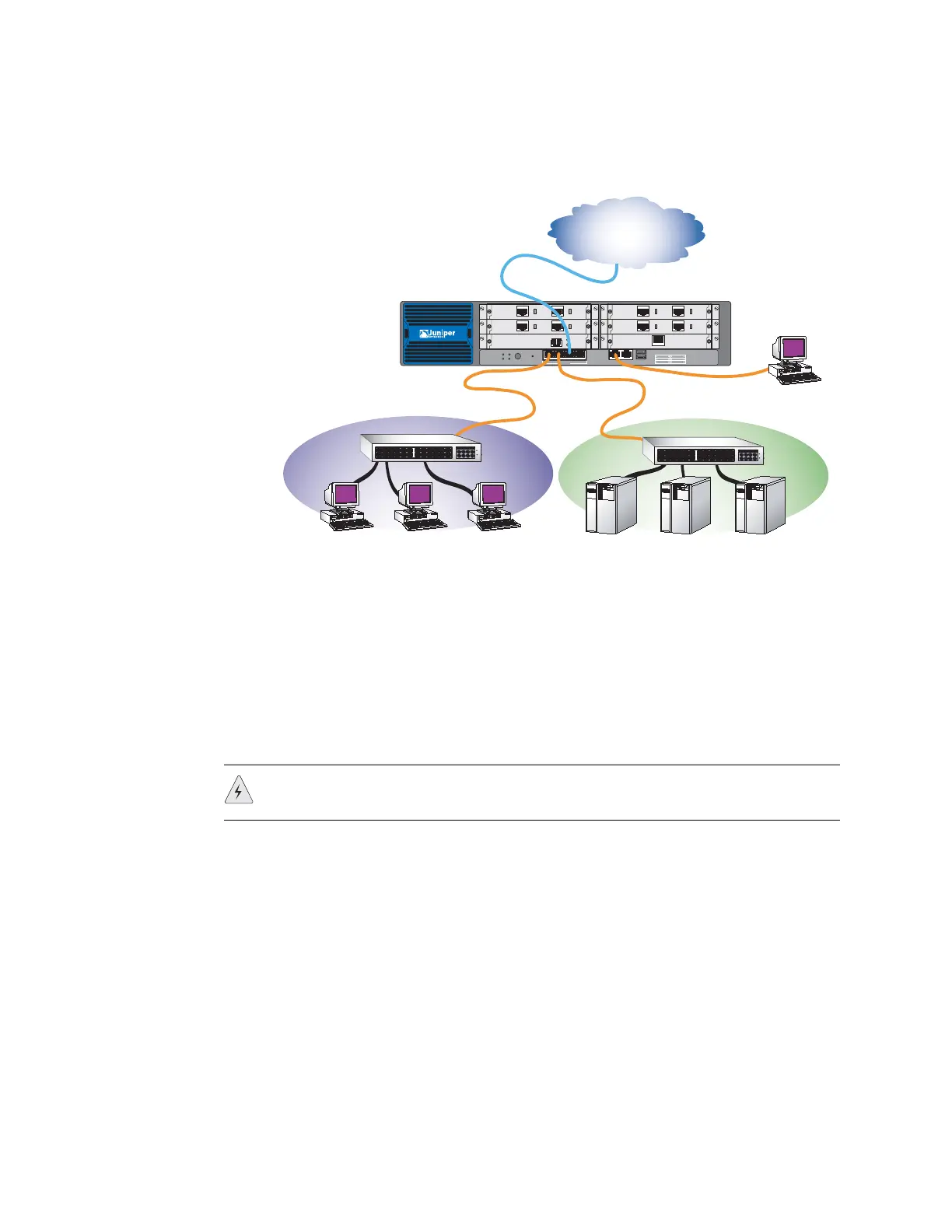

Figure 21: Basic Cabling Example
Connecting a Device Using Ethernet Ports
To establish a high-speed connection, connect the provided Ethernet cable from the
Ethernet port marked 0/2 (ethernet0/2, which is in the Untrust security zone) on an
SSG 500M Series device to the external router. The device auto-senses the correct
speed, duplex, and MDI/MDIX settings.
Connecting a Device Using Serial (AUX) Ports
You can connect to the untrusted network with an RJ-45 straight through serial
cable and external modem.
Connecting PIMs to an Untrusted Network
You can connect Ethernet and WAN PIMs to an untrusted network. To connect the
PIMs to a network, perform the following steps:
1. Have ready a length of the type of cable used by the interface.
2. Insert the cable connector into the cable-connector port on the interface
faceplate.
GB SFP
0
LINK
TX/RX
10/100/1000
0
T1
PORT 0
STATUS
PORT 1
STATUS
T1
PORT 0
STATUS
PORT 1
STATUS
T1
PORT 0
STATUS
PORT 1
STATUS
T1
PORT 0
STATUS
PORT 1
STATUS
PO
W
E
R
S
T
AT
US
A
LA
R
M
HA
POWER
RESET
CONFIG
TX/RX
LINK
0/0
10/100/1000
TX/RX
LINK
0/1
TX/RX
LINK
0/2
TX/RX
LINK
0/3
CONSOLE AUX USB
SLOT NUMBER
1
2
3
4
5
6
SSG 550M
Untrust Network
Internal Switch
DMZ Switch
DMZ LAN
Console
Trusted LAN
WARNING: Make sure that you do not inadvertently connect the Console, AUX, or
Ethernet ports on the device to the telephone outlet.

Juniper SSG 520M Specifications

General

Brand	Juniper
Model	SSG 520M
Category	Gateway
Language	English
