Just Motion Control 2DM556 - Connections to 232 Serial Communication Interface; Sequence Chart of Control Signals

Shenzhen Just Motion Control Electro-mechanics Co., Ltd 0755-26509689
- 12 -

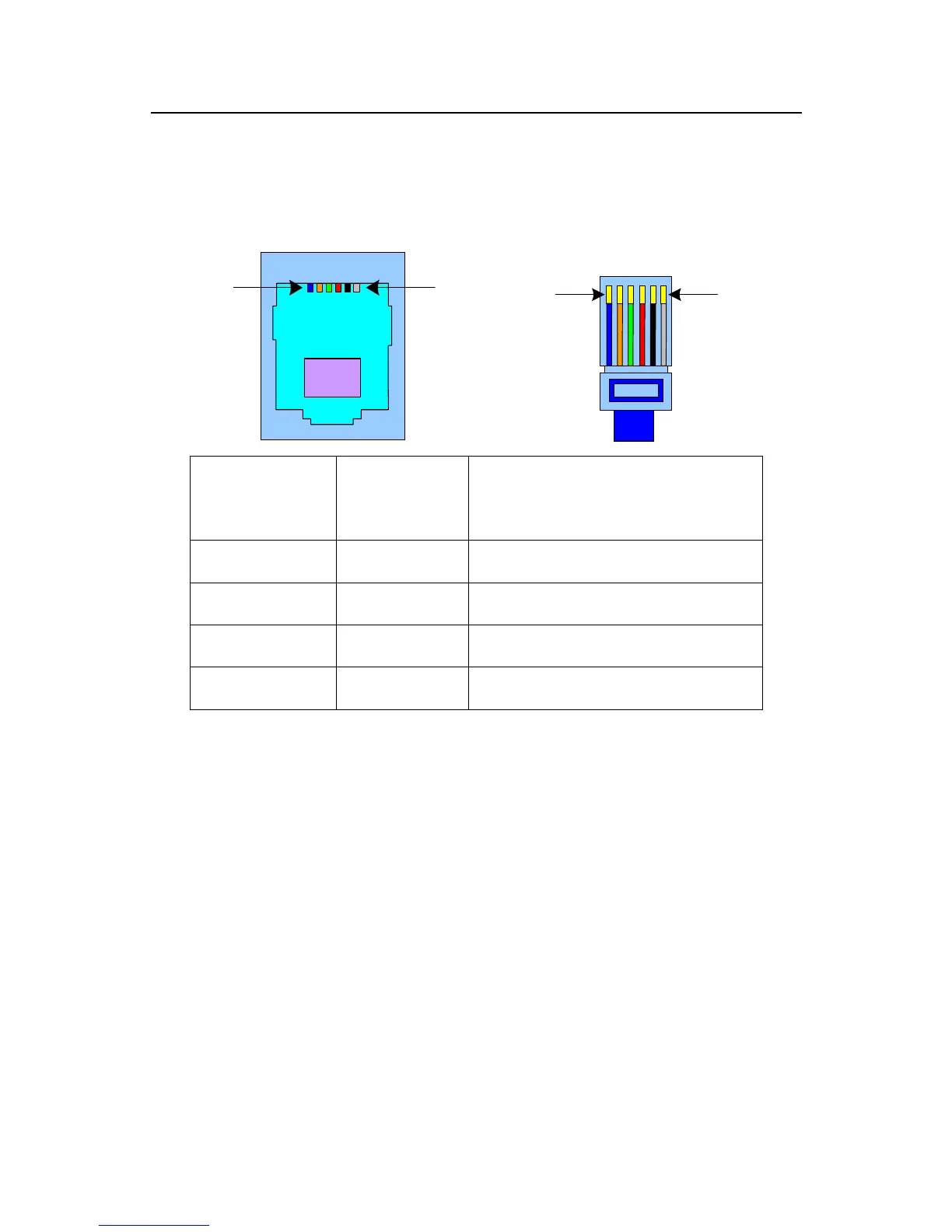

5.4 Connections to 232 Serial Communication Interface
PIN1
PIN6
PIN1
PIN6
Crystal Head
foot
Definition
Remark
1
TXD
Transmit Data
2
RXD
Receive Data
4
+5V
Power Supply to HISU
6
GND
Power Ground
5.5 Sequence Chart of Control Signals
In order to avoid some fault operations and deviations, PUL, DIR
and ENA should abide by some rules, shown as following diagram:
