Just Motion Control 2DM556 - Control Signal Input Ports

Shenzhen Just Motion Control Electro-mechanics Co., Ltd 0755-26509689
- 6 -

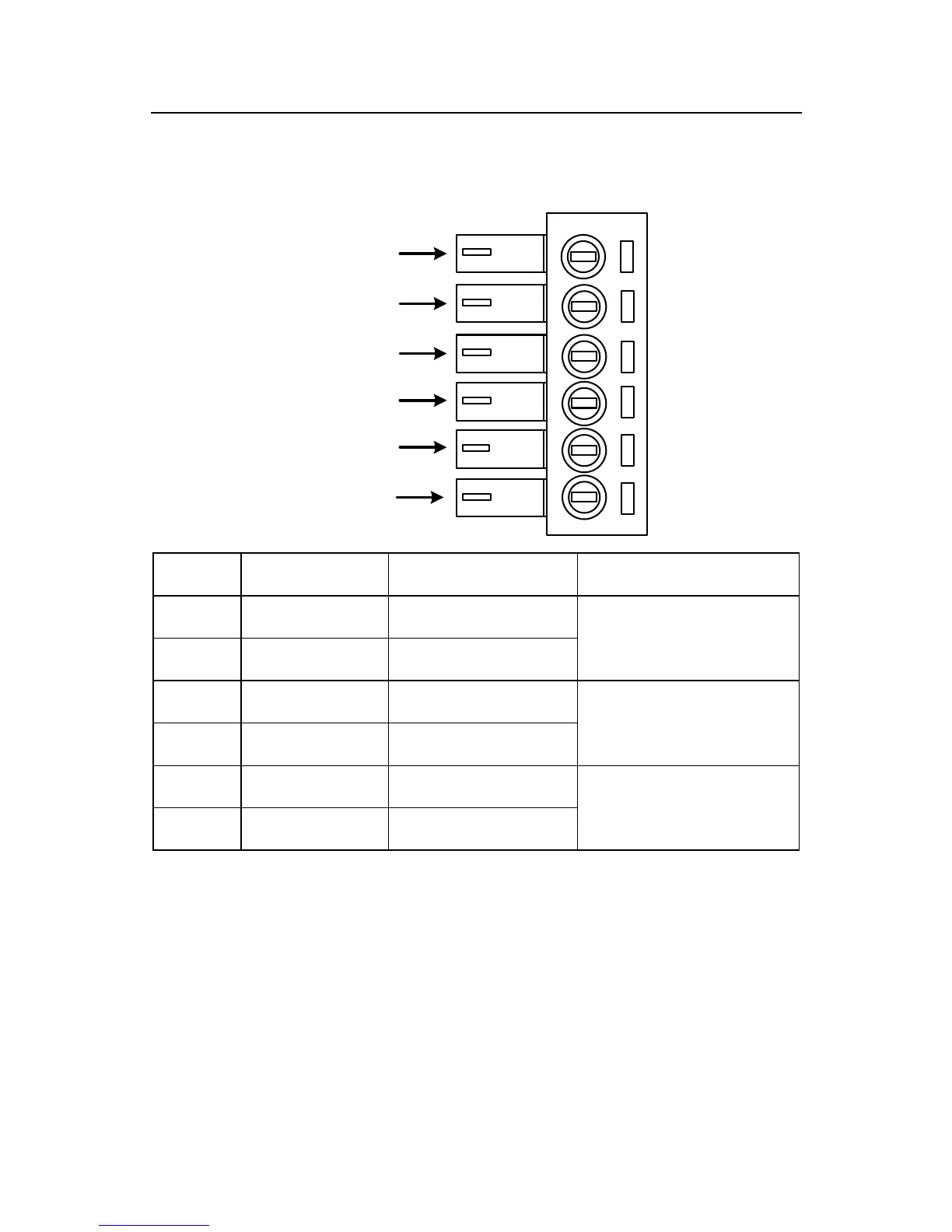

3.2 Control Signal Input Ports
5
6
1
2
3
4
Port
Symbol
Name
Remark
1
PLS+
Pulse signal +
Compatible with
5V or 24V
2
PLS-
Pulse signal -
3
DIR+
Direction signal+
Compatible with
5V or 24V
4
DIR-
Direction signal-
5
ENA+
Enable signal +
Compatible with
5V or 24V
6
ENA-
Enable signal-
