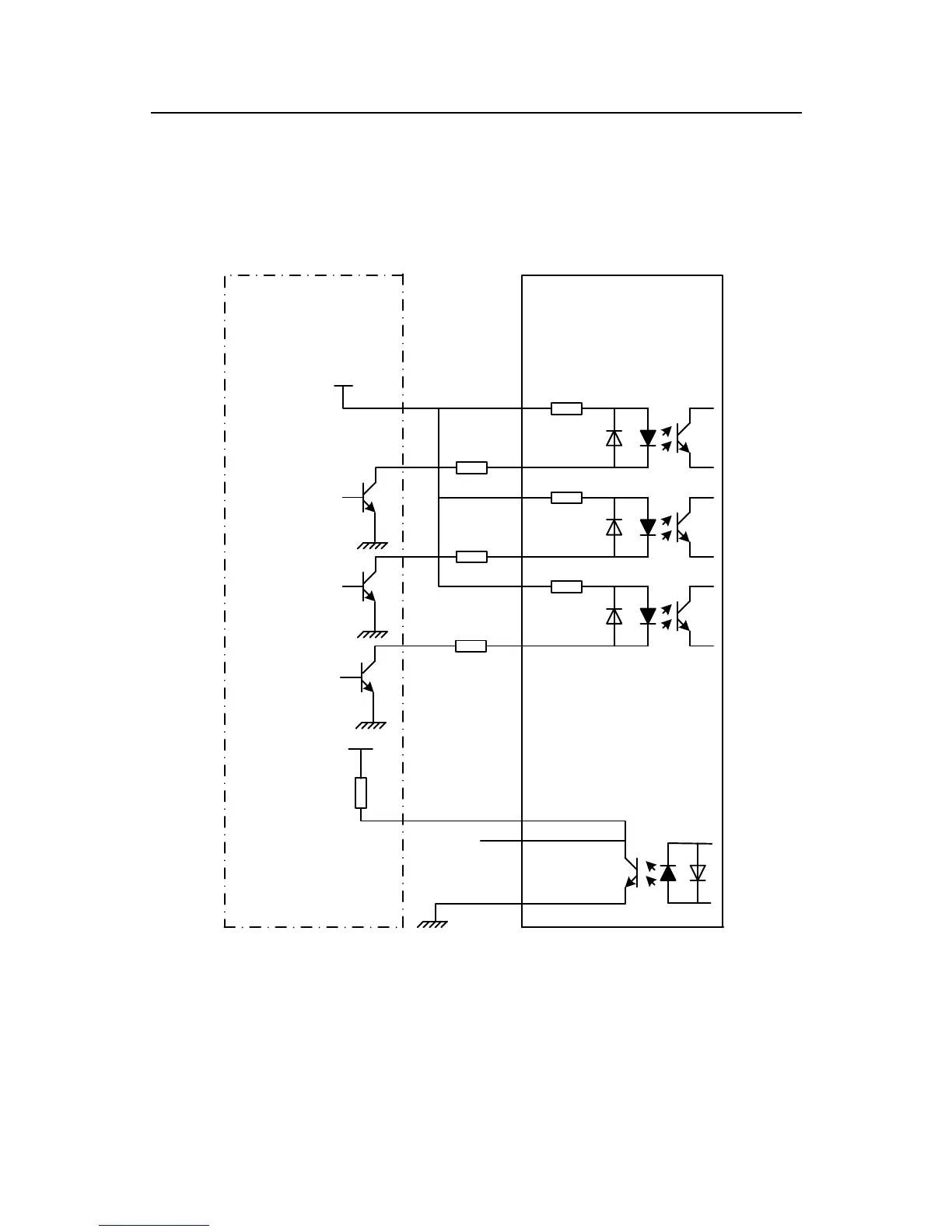

5. Connections to Control Signal
5.1 Connections to Common Anode
270
270
270
VCC
2HSS57-KH
驱动器
控制器
脉冲信号
方向信号
使能信号
R
R
R
PUL+
PUL-
DIR+
DIR-
ENA+
ENA-
ALM+
ALM-
VCC
R1
Remark:
VCC is compatible with 5V or 24V;
R(3~5K) must be connected to control signal terminal.
