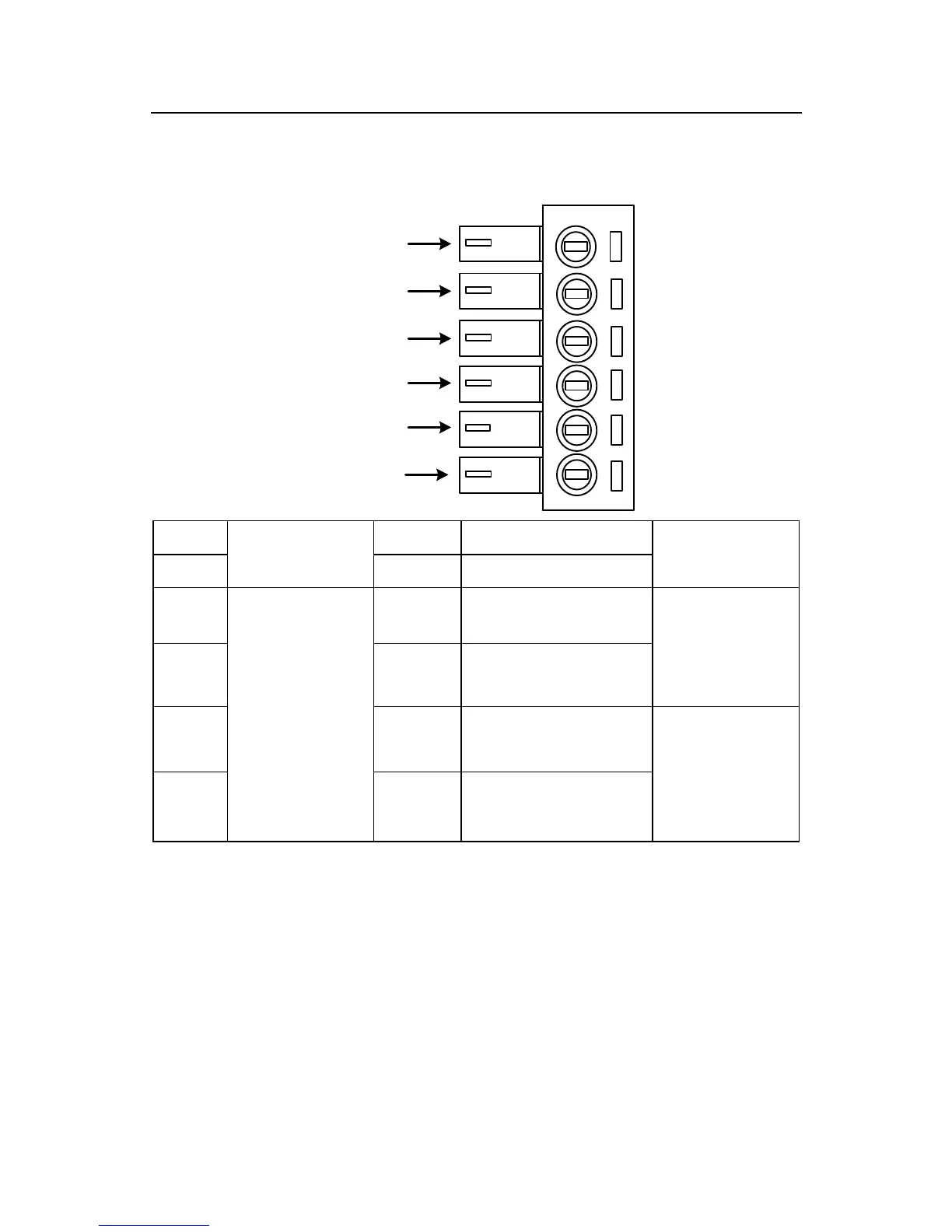

3.3 Power Interface Ports
5
6
1
2
3
4
1
Power Input
Ports
GND
Input Power-
DC24V-60V
2
VCC
Input Power +
3
Motor Phase
Wire Input Ports
A+
Phase A+
Motor Phase A
4
A-
Phase A-
5
B+
Phase B+
Motor Phase B
6
B-
Phase B-
