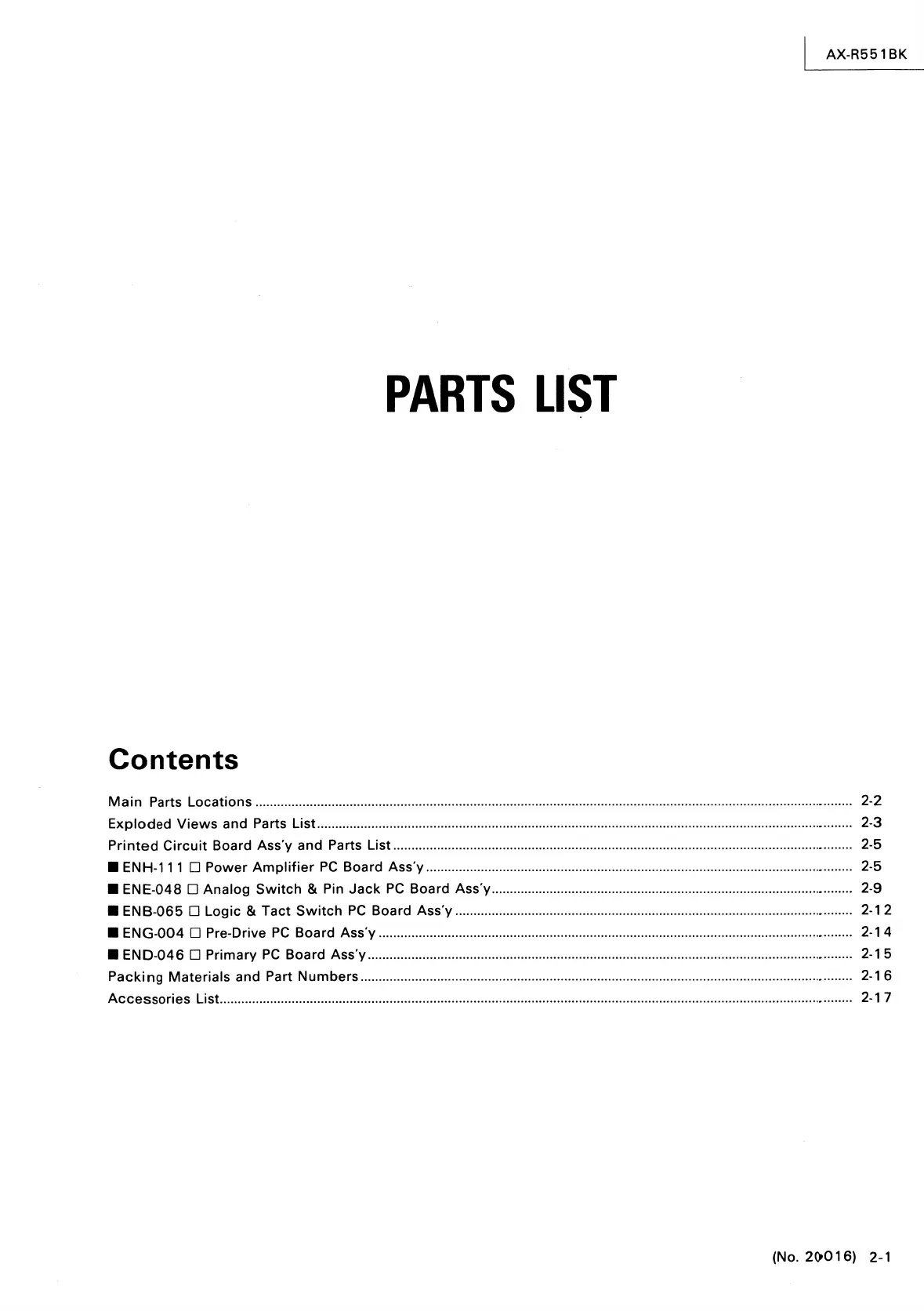

AX-R551 BK
PARTS
LIST
Contents
Main
Parts Locations .................................................................................................................................................................... 2-2
Exploded
Views
and Parts List ................................................................................................................................................... 2-3
Printed
Circuit
Board Ass'y and Parts List .............................................................................................................................. 2-5
• ENH-111 D
Power
Amplifier
PC
Board Ass'y ..................................................................................................................... 2·5
• ENE-048 D Analog
Switch
& Pin
Jack
PC
Board Ass·y ................................................................................................... 2·9
•
ENB-065
D Logic &
Tact
Switch
PC
Board Ass'y .............................................................................................................
2·12
• ENG-004 D Pre-Drive
PC
Board Ass'y ......................................................................................................................... _ ........
2-14
•
END-046
D Primary
PC
Board Ass·y ............................................................................................................................ _ ........
2-15
Packing
Materials
and Part
Numbers
.......................................................................................................................................
2-16
Accessories
List...................................................................................................................................................................... ........
2-1
7
(No.
2()016)
2-1
