JVC AX-R551BK - Main Parts Locations; Front View; Top View; Rear View

AX-R551 BK

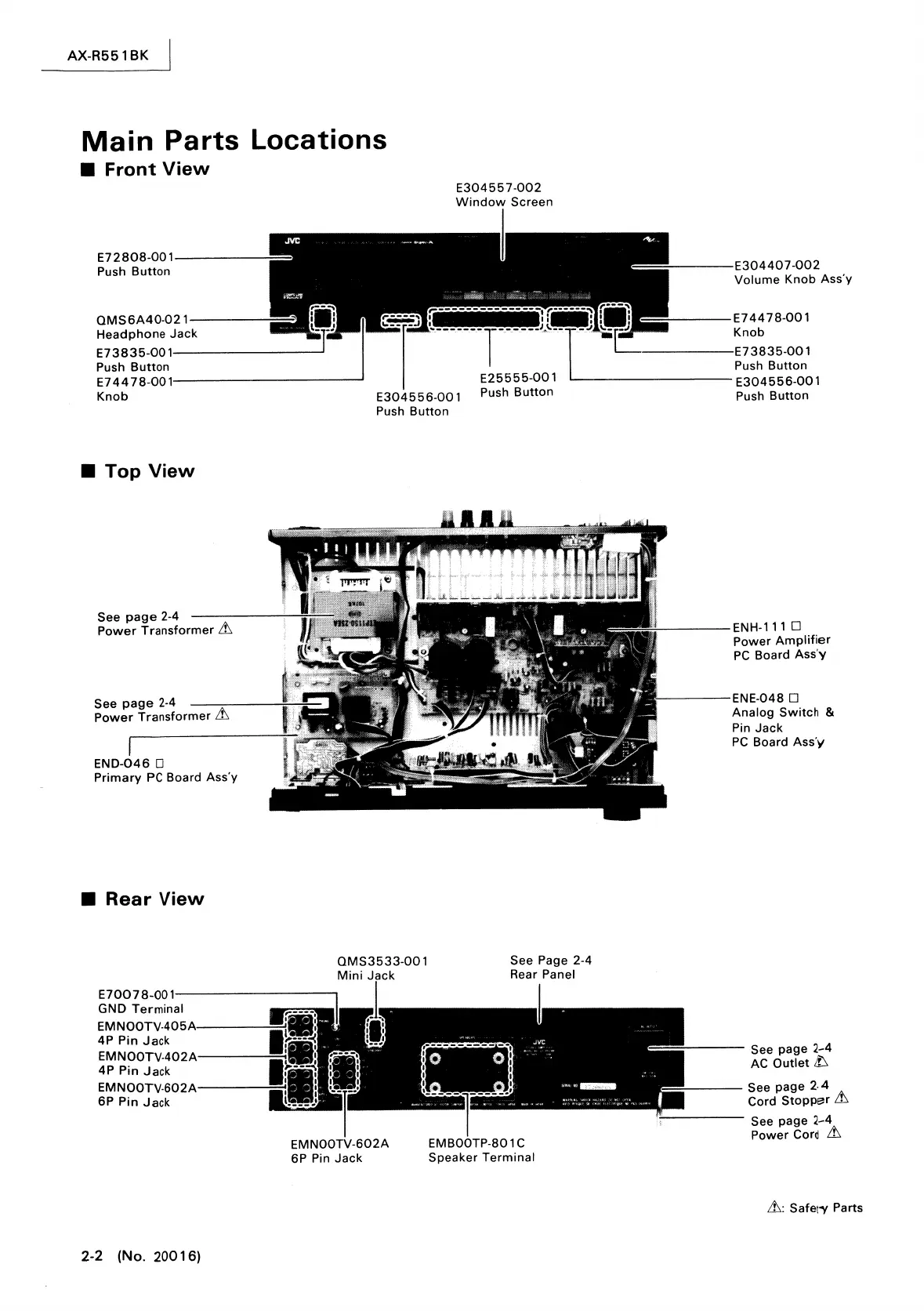

Main Parts Locations
• Front View
E72808-001-----=
Push Button
QMS6A40-021-----==_
Headphone Jack
E73835-001------------'
Push Butto
E304557-002
Window Screen
E7 44 78-001-------------'
Knob
E25555-001
E304556-00 1 Push Button
Push Button
• Top View
See page 2-4
Power Transformer Lh
See page 2-4
Power Transformer Lh
END-0460
Primary PC Board Ass'y
• Rear View
QMS3533-00 1
k
E70078-00 1----------,
GND Terminal
EM NOOTV-40:> A----=
4P Pin Jack
EM NOOTV-402A----
4P Pin Jack
EMNOOTV-602A----
6P Pin Jack
2-2 (No_ 20016)
EMNOOTV-602A
6P Pin Jack
EM BOOTP-80 1 C
Speaker Terminal
"------E304407-002
Volume Knob Ass'y
-=':::::::'----- E 74478-001
'A';:;E,.- Knob
L--------E7 3835-00 1
Push Button
L- ________ E304556-001
Push Button
----ENH-lll 0
Power Amplifier
PC Board Ass'y
----ENE-048 0
Analog Switch
&
Pin Jack
PC Board Ass'y
'---- See page 2-4
AC Outlet ~
!===----- See page 2· 4
Cord Stopper Lh
See page 2-4
Power Cord Lh
Lh: Safet4( Parts
