JVC BM-H1900SU - Color Production Monitor - Rear Panel Terminals and Features; Rear Panel Terminal Connections

5
1
IN
OUT
TALLY/
REMOTE
FOCUS
IN
OUT
RGB/COMPO(SDI)
VIDEO B
SYNC
OPEN 75 ¶
OPEN 75 ¶
OPEN 75 ¶
OPEN 75 ¶
OPEN
OPEN
OPEN
5
23 89
w
e
r
p q t y6
7
4
VIDEO A
AUDIO
75 ¶
75 ¶
75 ¶
Y / C
B / B-Y
R / R-Y
G / Y
IN
OUT
(Rear)

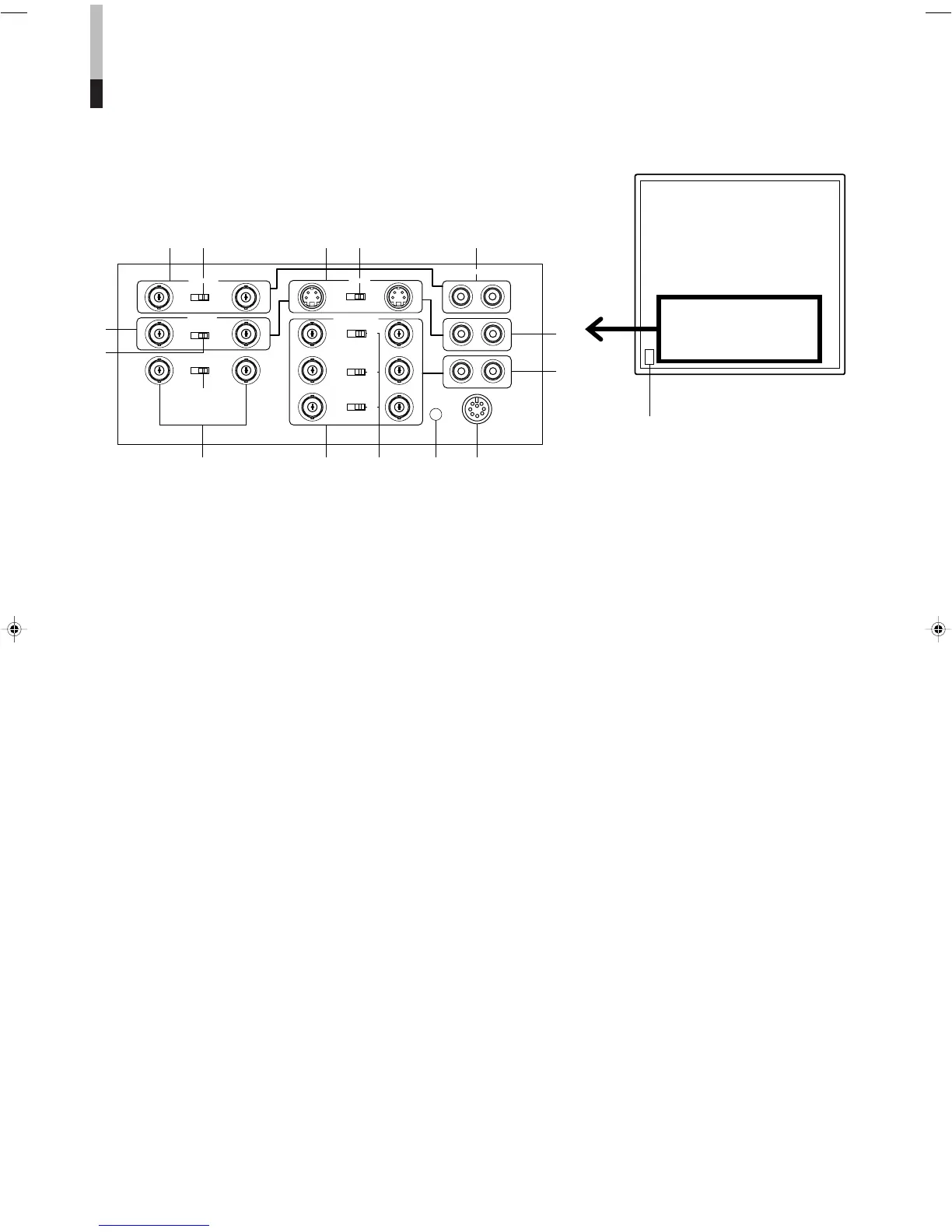

TERMINALS AND FEATURES (REAR)
11
11
1 Power socket
Connect to an AC outlet (120 V AC, 50/60 Hz) using the
provided power cord.
22
22
2 VIDEO A terminals
Composite video signal input terminal and bridge-
connected output terminal.
33
33
3 VIDEO A termination switch
Set to OPEN for bridged connection; set to 75 for input
signal only.
44
44
4 VIDEO B terminals
Composite video signal input terminal and bridge-
connected output terminal.
55
55
5 VIDEO B termination switch
Functions as for
33
33
3.
66
66
6 SYNC terminals
External sync signal input terminal and bridge-connected
output terminal. Input an external composite sync signal
to these terminals when inputting a video signal without
a sync signal, or when synchronizing the monitor with an
external sync signal.
77
77
7 SYNC termination switch
Functions as for
33
33
3.
88
88
8 Y/C terminals
Input terminal of Y/C signals and bridge-connected
output terminal.
99
99
9 Y/C termination switch
Functions as for
33
33
3.
pp
pp
p RGB/COMPO(SDI) terminals
Input terminal of analog RGB signals or Y/B-Y/R-Y
signals and bridge-connected output terminal. For
analog RGB signals, also accepts a G signal including a
sync signal.
qq
qq
q RGB/COMPO(SDI) termination switch
Functions as for
33
33
3.
ww
ww
w AUDIO A terminals
Audio signal input terminal and bridge-connected output
terminal. Linked with the VIDEO A terminals so that
AUDIO A terminals and VIDEO A terminals are selected
simultaneously.
ee
ee
e AUDIO B terminals
Audio signal input terminal and bridge-connected output
terminal. Linked with the VIDEO B or Y/C terminals so
that AUDIO B terminals and VIDEO B or Y/C terminals
are selected simultaneously.
rr
rr
r AUDIO RGB/COMPO(SDI) terminals
Audio signal input terminal and bridge-connected output
terminal. Linked with the RGB/COMPO(SDI) terminals
so that AUDIO RGB/COMPO(SDI) terminals and RGB/
COMPO(SDI) terminals are selected simultaneously.
tt
tt
t FOCUS control
Adjustment hole exclusively for use by service
personnel. Make sure to consult qualified service
personnel for adjustment.
yy
yy
y TALLY/REMOTE terminal
External input terminal of a tally signal to make the tally
lamp glow, or of a remote-control signal to switch input
or picture control.
