9
VIDEO SIGNAL CONTROLS
Push each switch to ON or OFF for video signal control.

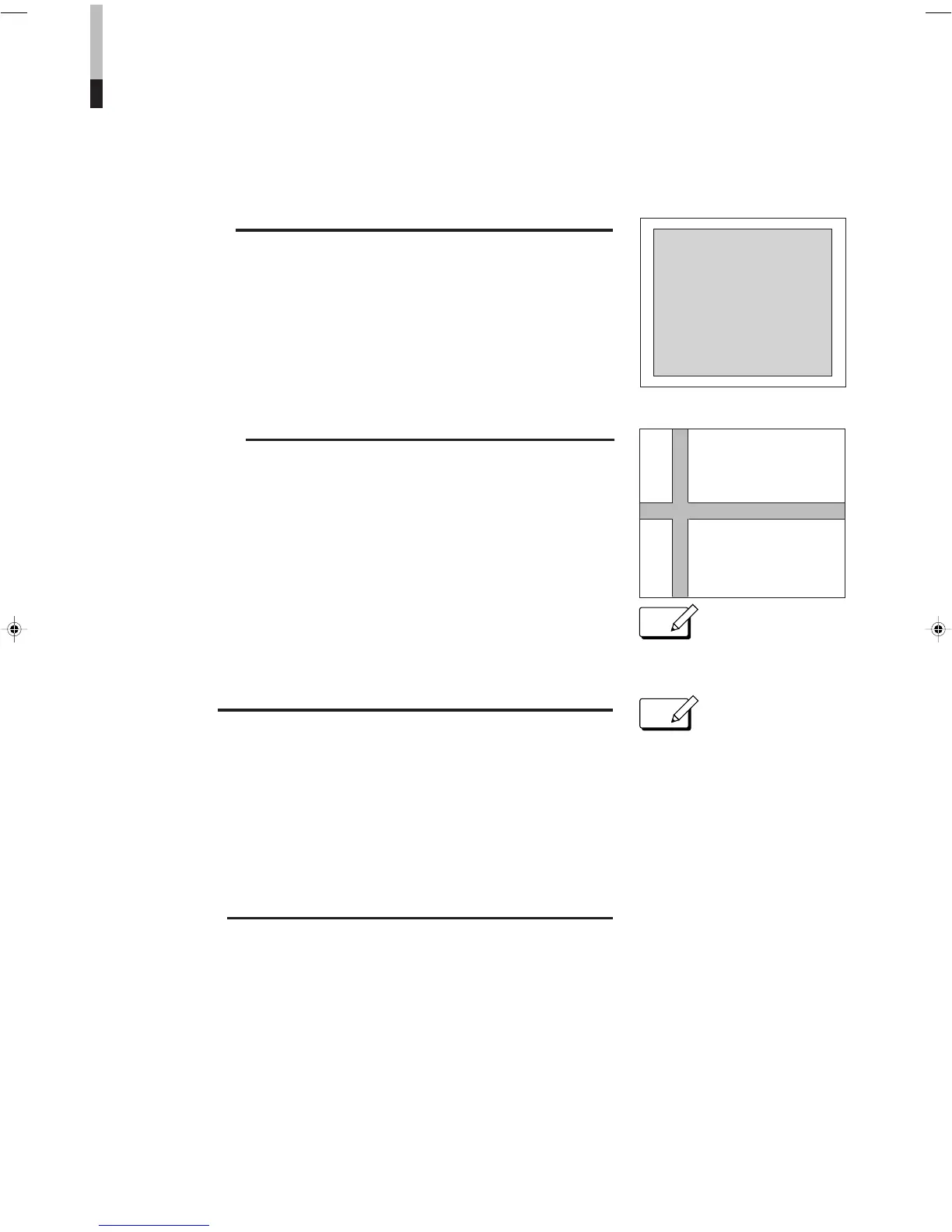

UNDER SCAN
Push the UNDER SCAN switch to reduce the dimensions of display
area so the whole picture is displayed on screen. Use to check the picture
frame.
PULSE CROSS
Push the PULSE CROSS switch to simultaneously display two blank
areas crossed horizontally and vertically on screen (“Pulse Cross”
display) by delaying the phase of the input signal. Use to check the
vertical retrace line period, equalizing pulse period, vertical sync period,
horizontal sync pulse, or burst signal.
COLOR OFF
Push the COLOR OFF switch to display a black-and-white picture by
inputting a luminance signal only. Use to check the noise contained in a
luminance signal or white balance.
BLUE CHECK
Push the BLUE CHECK switch to display a monochrome blue picture
by eliminating red and green signal components. Use to check or adjust
the CHROMA and/or PHASE controls.
●This function is not effective for
analog RGB signal input.
● This function is not effective for
analog RGB signal input.
