JVC BM-H2000PN

e-L
7 8) @ @
BM-H2000PN
BM- “H14Q0PN / BM-1400PN-A |
4) [8] $I 4 ii igi ta i 1
J \EUM PRNE | ChKaMA | BRR? CINE RATT

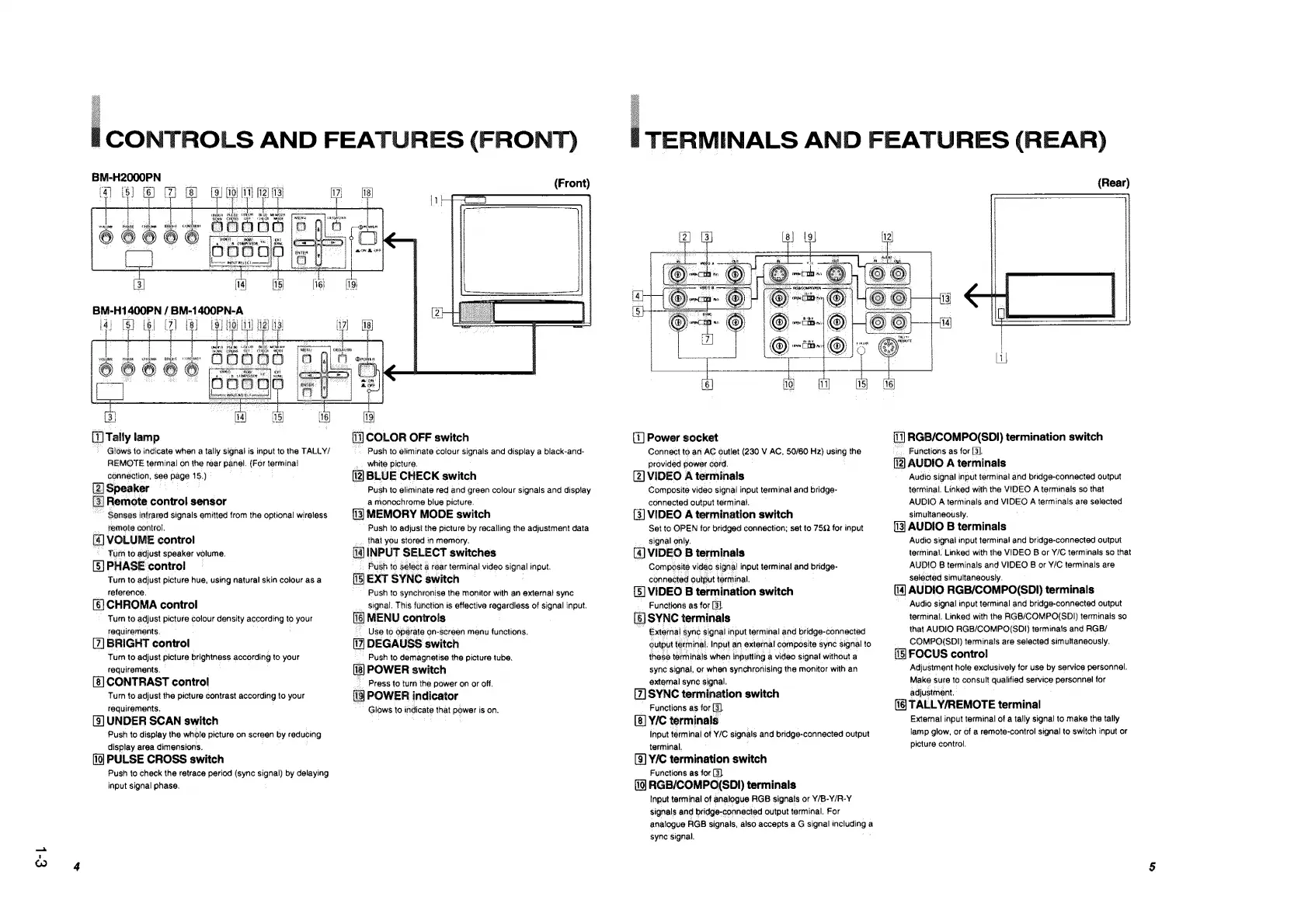

| Tally lamp
~ Gléws to indicate when a tally sighal is input to the TALLY/
REMOTE terminal on the rear panel. (For terminal
connection, $80 page 18. )- 5
[2] Speaker —
Remote control sensor
Sanses infrared signals emitted from the optional wireless
oa remols control.
4 VOLUME control
~ Yuin to adjust speaker volume.
[EIPHASE control -
Turn to adjust picture hue, using natural skin colour as a
_ reference.
[6] CHROMA control
* Turn to adjust picture colour density according t to © your
requirements.
7) BRIGHT control
Tum to adjust picture brightness according to your
requiraments. —
[8] CONTRAST control
Turn fo adjust the picture contrast according to your
requirements. |
[3] UNDER SCAN switch
Push to display the whole picture on screen by reducing
display area dimensions.
PULSE CROSS switch
Push fo check the retrace period (sync signal) by delaying
input signal phase.
(11) COLOR OFF switch
“ Push to éliminate colour signals and display a black-and-
... white picture.
2] BLUE CHECK switch
"Push to eliminate red and green colour signals and display
a monochrome blue picture.
MEMORY MODE switch
~~ Bush to adjust the picture by recalling the adjustment data
. Hat you siored in memory.
fa a)INPUT SELECT switches
; oP sh to select a rear terminal video signal input.
8) EXT SYNC switch _
~~ Push to synchronise the monitor with an external syne
_ signal. This function is effective regardless of signal input.
[fé] MENU controls
_ Use to operate on-screen menu functions.
7| DEGAUSS switch
= Push to demagnetise the picture tube.
é] POWER switch
__ Press fo turn the power on or off.
i3] POWER indicator
Glows to indicate that power is on.
(Front)
[i] Power socket
Connect to an AC outlet (230 V AC, 50/60 Hz) using the
provided power cord.
[2] VIDEO A terminals
Composite video signal input terminal and bridge-
connected output terminal.
VIDEO A termination switch
Set to OPEN for bridged connaction; set to 7522 for input
.._ signal only.
4 4] VIDEO B terminals
Comp: a Jac signal input terminal and bridge-
connected output terminal.
I VIDEO B termination switch
._ Functions as for (i.
[é] SYNC terminals
"External syne signal input terminal and bridge-connected
output terminal. Input an external composite sync signal to
these terminals when inputting a video signal without a
sync signal, or when synchronising the monitor with an
external syne signal:
(7) SYNC termination switch
_ Functions as for (3)
[8] Y/C terminals
input terminal ot Y/C signals and bridge- -connected output
terminal.
[9] ¥Y/C termination switch
Functions as for [3]
[fo] RGB/COMPO(SD)) terminals
Input terminal of analogue AGB signals or Y/B-Y/R-Y
signals and bridge- -connected output terminal. For
analogue RGB signals, also accepts a G signal including ¢ a
syne signal.
RGB/COMPO(SDI) termination switch
_.. Bunetions as for [3],
i2] AUDIO A terminals
~ Audio signal input terminal and bridge-connected output
terminal. Linked with the VIDEO A terminals so that
AUDIO A terminals and VIDEO A terminals are selected
simultaneously.
13] AUDIO B terminals
Audio signal input terminal and bridge-connected outpui
terminal. Linked with the VIDEO B or Y/C terminals so that
AUDIO B terminals and VIDEO B or Y/C terminais are
selected simultaneously.
[14] 14] AUDIO RGB/COMPO(SDI) terminals
“Audio signal input terminal and bridge-connected output
terminal, Linked with the AGB/COMPO(SDI) ) terminals so
that AUDIO RGB/COMPO(SDI) terminals and RGB/
_ _COMPO(SD)) terminals are selected simultaneously.
FOCUS control
Adjustment hole exclusively for use by service personnel.
Make sure to consult qualified service > personnel for
adjustment.
TALLY/REMOTE terminal
External input terminal of a tally signal to make the tally
lamp glow, or of a remote-control signal to switch input or
picture control.
