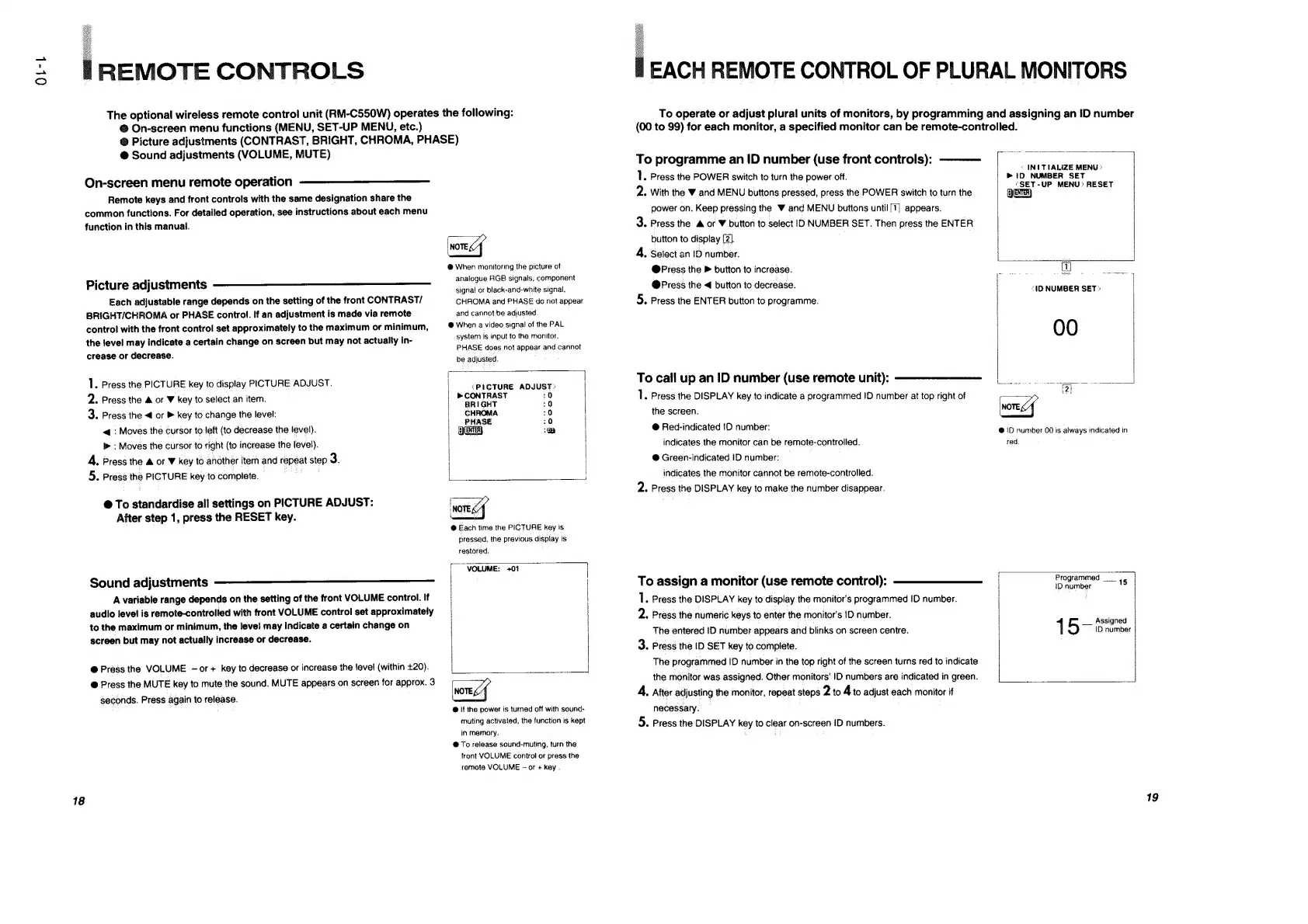

The optional wireless remote control unit (RM-C550W) operates the following:
@ On-screen menu functions (MENU, SET-UP MENU, etc.)
® Picture adjustments (CONTRAST, BRIGHT, CHROMA, PHASE)
@ Sound adjustments (VOLUME, MUTE)
On-screen menu remote operation
Remote keys and front controls with the same designation share the
common functions. For detailed operation, see instructions about each menu
function in this manual.
Picture adjustments
Each adjustable range depends on the setting of the front CONTRAST/
BRIGHT/CHFIOMA or PHASE control. If an adjustment is made via remote
control with the front control set approximately to the maximum or minimum,
the
level
may
indicate
a
certain
change
on
screen
but
may
not
actually
in-
crease or decrease.
1. Press the PICTURE key to display PICTURE ADJUST.
2. Press the & or W key to select an item.
3. Press the < or ® key to change the level:
4: Moves the cursor to left (to decrease the level).
B® : Moves the cursor to right (to increase the level).
A, Press the Aov key to another item and repeat step 3.
5, Press the PICTURE key to complete. - |
@To seeanidabdine all settings on PICTURE ADJUST:
After step 1, press the RESET key.
Sound adjustments
A variable range depends on the setting of the front VOLUME control. If
audio levet is remote-controlied with front VOLUME control set approximately
to the maximum or minimum, the jeve! may Indicate a certain change on
screen but may not actually increase or decrease.
@ Press the VOLUME -or+ key to decrease or increase the level (within +20).
@ Press the MUTE key to mute the sound. MUTE appears on screen for Approx. 3
seconds. Press again to release.
@ When monitoring the picture of
analogue RGB signals, component
signal or black-and-white signal,
CHROMA and PHASE do not appear
and cannot be adiusted.
@ When a video signal of the PAL
system is input to the monitor,
PHASE does not appear and cannot
be 9 adjusted
«PICTURE ADJUST>
» CONTRAST 29
BRIGHT 79
CHROMA :0
PHASE :0
ENTER] crs)
© Each time the PICTURE key is
pressed, the previous display is
restored.
VOLUME: +01 _ |
i
NOTES“
@ If the power is turned off with sound-
muting activated, the function is kept
in mamary.
@ To release sound-muting, turn the
front VOLUME control or press the
remote VOLUME -- or + key .
et
SoS
Siete
To operate or adjust plural units of monitors, by programming and assigning an ID number
(00 to 99) for each monitor, a specified monitor can be remote-controlled.
To programme an ID number (use front controls):
1. Press the POWER switch to turn the power off.
2. With the ¥ and MENU buttons pressed, press the POWER switch to turn the
power on. Keep pressing the YW and MENU buttons until [1] appears.
3. Press the Aor ¥ button to select ID NUMBER SET. Then press the ENTER
button to display [2]
A, Select an 1D number.
@Press the » button to increase.
@Press the < button to decrease.
5. Press the ENTER button to programme.
To call up an ID number (use remote unit):
1. Press the DISPLAY key to indicate a programmed ID number at top right of
the screen.
@ Red-indicated !D number:
indicates the monitor can be remote- controlled.
@ Green-indicated ID number: _
indicates the monitor cannot be remote-controlled.
2. Press the DISPLAY key to make the number disappear.
To assign a monitor (use remote control):
1. Press the DISPLAY key to display the monitor's programmed ID number.
2. Press thé numeric keys to enter the monitor's 1D number.
The entered ID number appears and blinks on screen centre.
3: Press the ID SET key to complete.
The programmed 1D number in the top right of the screen turns red to indicate
the monitor was assigned. Other monitors’ ID numbers are indicated in green.
4. After adjusting the monitor, repeat steps 2 10 Ato adjust each monitor if
necessary.
5. Press the DISPLAY key to clear on-screen ID numbers.
knee
< INITIALIZE MENU >
» 1D NUMBER SET
“SET-UP MENU> RESET
ENE)
‘a bike Sad. tebe 2 do Saga aie : ae
OO
“10 NUMBER SET >
i
NOTE
@ !D number 00 is always indicated in
ey
Programmed 45
1D number
|
|
a
Assigned
ID number
——
19
