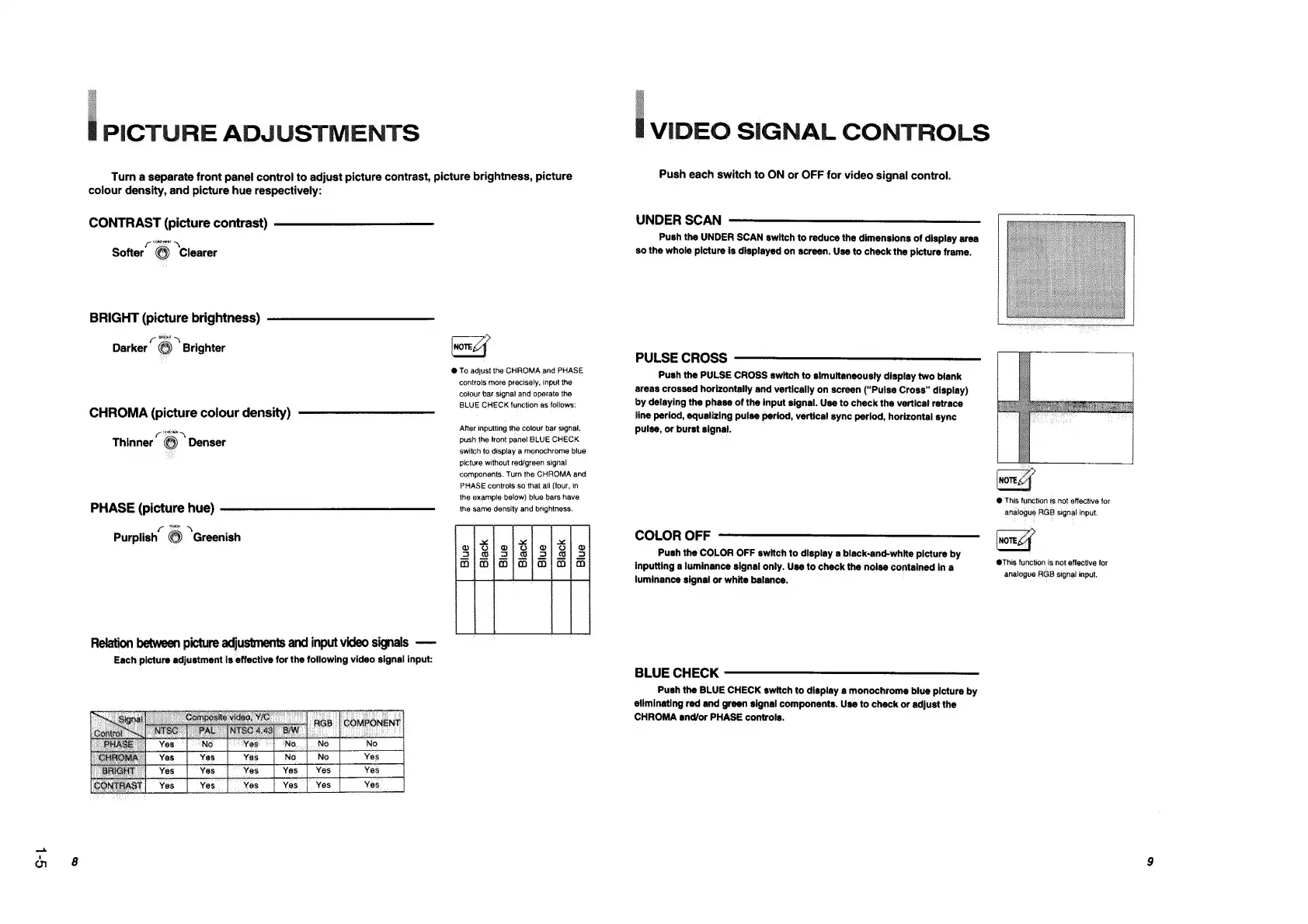

Turn a separate front panel control to adjust picture contrast, picture brightness, picture
colour density, and picture hue respectively:
CONTRAST (picture contrast)
CORE AAG T
Softer Clearer
BRIGHT (picture brightness)
iT
ie
Brighter
oe
Darker
@ To adjust the CHROMA and PHASE
controls more precisely, input the
colour bar signal and operate the
BLUE CHECK function as follows:
CHROMA (picture colour density) |
Aftar inputting the colour bar signal.
push the front panel BLUE CHECK
gwitch to display a monochrome blue
picture without red/green signal
components. Turn the CHROMA and
PHASE controls so that ali (four, in
the axarnple below) blue bars have
the same density and brightness.
x
Thinner
PHASE (picture hue)
Penge
ze
Purplish Greenish
Relation between picture adjustments and input video signals ——
Each picture adjustment is effective for the following video signal input:
Push each switch to ON or OFF for video signal control.
UNDER SCAN
Push the UNDER SCAN switch to reduce the dimensions of display area
so the whole picture is displayed on screen. Use to check the picture frame.
PULSE CROSS
Push the PULSE CROSS switch to simultaneously display two blank
areas crossed horizontally and vertically on screen (“Pulse Cross” display)
by delaying the phase of the input signal. Use to check the vertical retrace
jine period, equalizing pulse period, vertical sync period, horizontal sync
pulse, or burst signal. |
COLOR OFF
Push the COLOR OFF switch to display a black-and-white picture by
inputting a luminance signal only. Use to check the noise contained in a
luminance signal or white balance. |
BLUE CHECK
Push the BLUE CHECK switch to display a monochrome blue picture by
eliminating red and green signal components. Use to check or adjust the
CHROMA and/or PHASE controis.
@ This function is not effective for
analogue RGB signal input.
@This function is not effective for
analogue RGB signal input.
