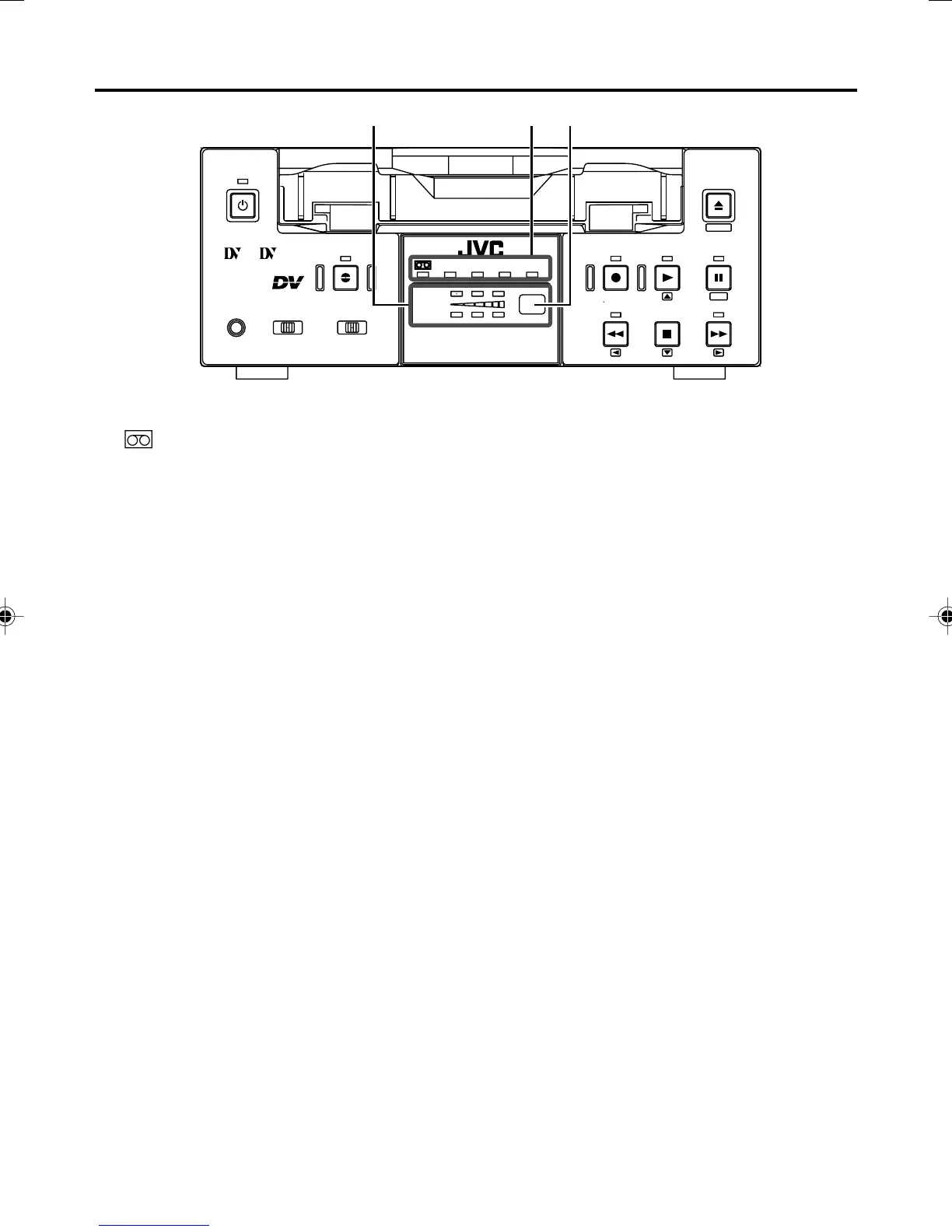

13
$
Indicator
: When a cassette is loaded, the LED
lights up green. (Likewise when the
unit is in the OPERATE OFF state.)
When a cassette is being loaded
or ejected, the LED blinks.
DVCAM : When the unit plays back a tape re-
corded in the DVCAM format, the
LED lights up green.
NTSC : The LED lights up green in the fol-
lowing cases:
• In the composite video or YC video
signal input mode and the
2
NTSC/PAL switch located at the
rear panel (
☞
Page 14) is set as
“NTSC”.
• A tape recorded with NTSC sig-
nals is played back.
• When NTSC system DV signals
are input while the INPUT SEL.
switch is set at “DV”.
PAL : The LED lights up green in the fol-
lowing cases:
• In the composite video or YC video
signal input mode and the
2
NTSC/PAL switch located at the
rear panel is set as “PAL”.
• A tape recorded with PAL signals
is played back.
• When PAL system DV signals are
input while the INPUT SEL. switch
is set at “DV”.
REC INH : The LED lights up red for about 5
seconds when the unit is set to the
recording mode but fails to record.
E.g. when the rear slide of the cas-
sette is pushed to the “SAVE” posi-
tion.
%
Audio indicator
This indicator allows the user to check the avail-
ability of audio signals.
3 indicators each are available to CH1/3 and
Ch2/4.
^
Sensor for wireless remote controller
When using the provided wireless remote con-
troller, please point it to this sensor.
(
☞
Page 25, “Using the wireless remote con-
troller”)
Mini
PROFESSIONAL
SET
MENIU
EJECT
REC PLAY
PAUSE
REW
STOP
FF
DVCAM NTSC
PAL
REC INH.
CH-1/3
CH-2/4
BR-DV3000
A.DUB
OPERATE
INPUT SEL.REMOTE SEL.
MIC
SERIAL
WIRELESS
9PIN
LINE
DV
Y/C
% $ ^
BR-DV3000U_p02-49 06.8.24, 2:01 PM13
