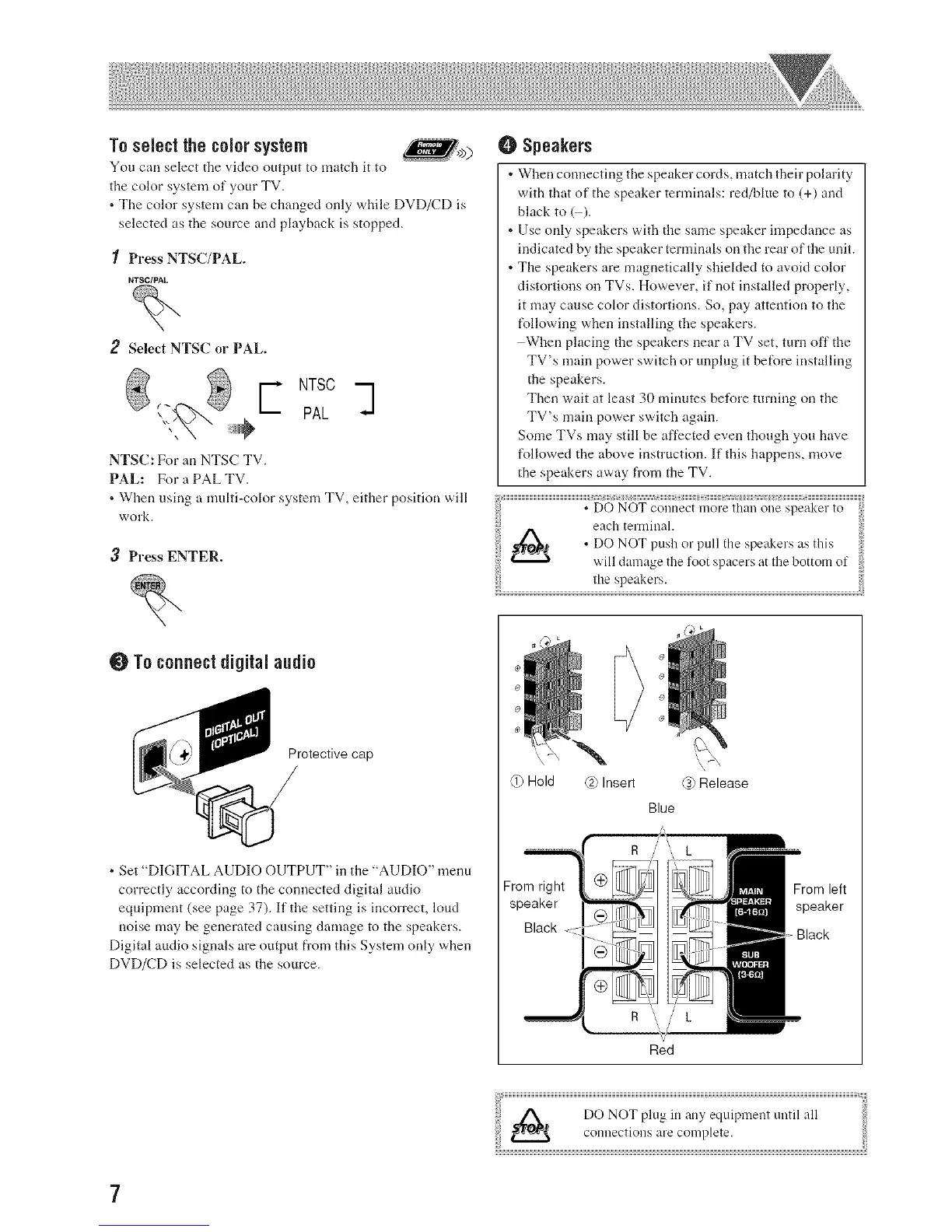

To select the color system
You can select the video output to match it to
the color system of your TV.
* The color system can be changed only while DVD/CD is
selected as the source and playback is stopped.
1 Press NTSC/PAL
NTSC/PAL
NTSC: For an NTSC TV.
PAL: For a PALTV.
* When using a multi-color system TV, either position will
work.
3 Press ENTER.
O Speakers
* When connecting the speaker cords, match their pohu'ity
with that of the speaker terminals: red/blue to (+) and
black to ().
* Use only speakers with the same speaker impedance as
indicated by the speaker terminals on the rear of the unit.
* The speakers are magnetically shielded to avoid color
distortions on TVs. However, if not installed properly,
it may cause color distortions. So, pay attention to the
following when installing the speakers.
When placing the speakers near a TV set, turn off the
TV's main power switch or unplug it before installing
the speakers.
Then wait at least 3(1 minutes before turning on the
TV's main power switch again.
Some TVs may still be affected even though you have
followed the above instruction. If this happens, move
the speakers away fi'om the TV.
To connect digital audio
Protective cap
• Set "DIGITAL AUDIO OUTPUT" in the "AUDIO" menu
correctly according to the connected digital audio
equipment (see page 37). If the setting is incorrect, loud
noise may be generated causing damage to the speakers.
Digital audio signals are output from this System only when
DVD/CD is selected as the source.
@ Hold @ Insert @ Release
Blue
From right
speaker
Black
R // \ L
R '_ L
Red
From left
speaker
> Black
A DO NOT plug in any equipment until ull )!
:;_ _ connections are complete.
7
