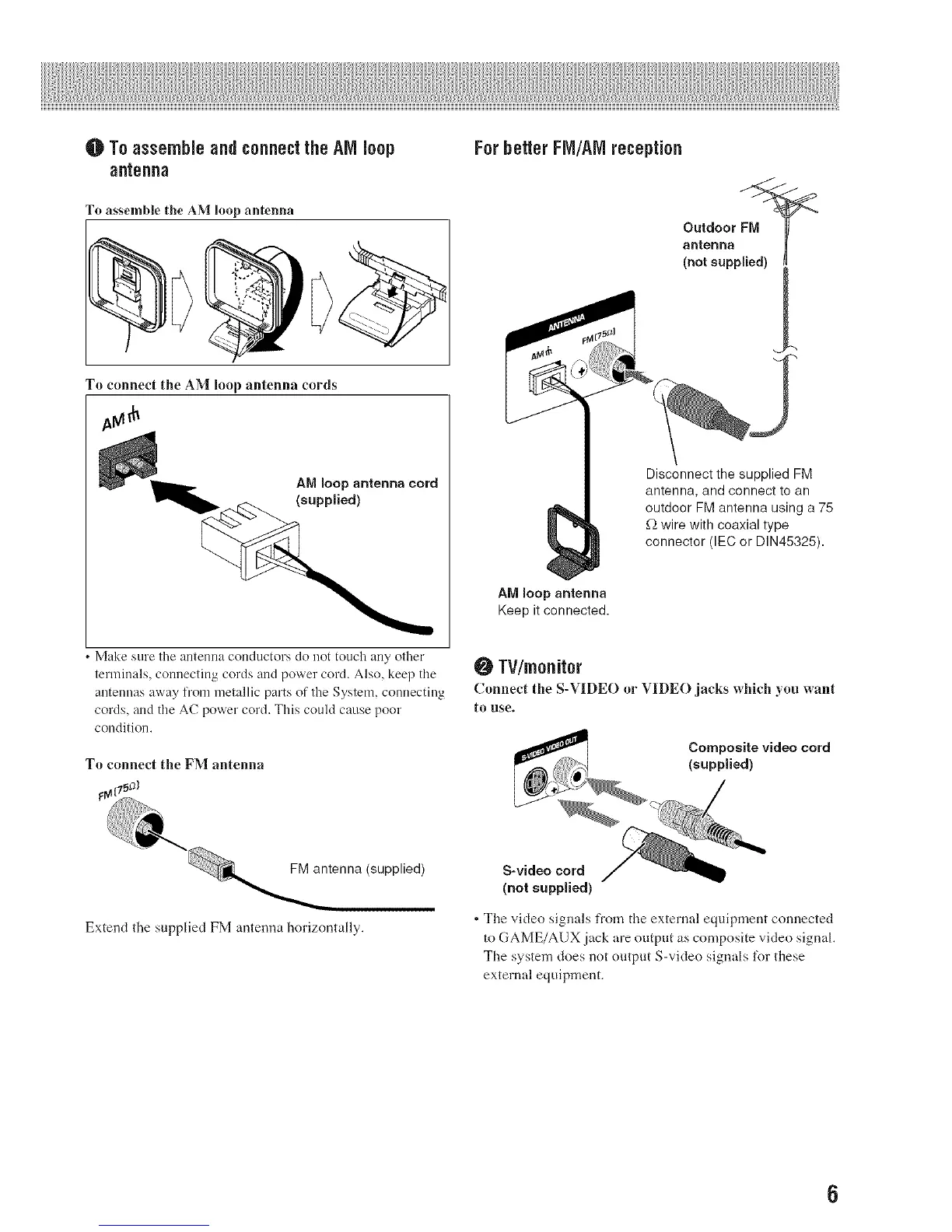

O To assemble and connect the AM 100p
antenna
To assemble the AM loop antenna
To connect the AM loop antenna cords
1
For better FN/AN reception
Outdoor
antenna j_
(not suppffed)
_ AM [oo.p antenna cord
• Make sure the antenna conductors do not touch any other
terminals, connectirlg cords and power cord. Also, keep tile
anteuuas away froln metallic parts of the Systeln, connecting
cords, and the AC power cord. This could cause poor
condition.
To connect the FM antenna
Disconnect the supplied FM
antenna, and connect to an
outdoor FM antenna using a 75
f2 wire with coaxial type
connector (IEC or DIN45325).
AM loop antenna
Keep it connected.
0 W/monitor
Connect the S-VIDEO or VIDE() jacks which you want
to use.
Composite video cord
(supplied)
tenna (supplied)
Extend the supplied FM antenna horizontally.
S-video cord
(not supplied)
• The video signals from the external equipment connected
to GAME/AUX jack are output as composite video signal.
The system does not output S-video signals for these
external equipment.
fi
