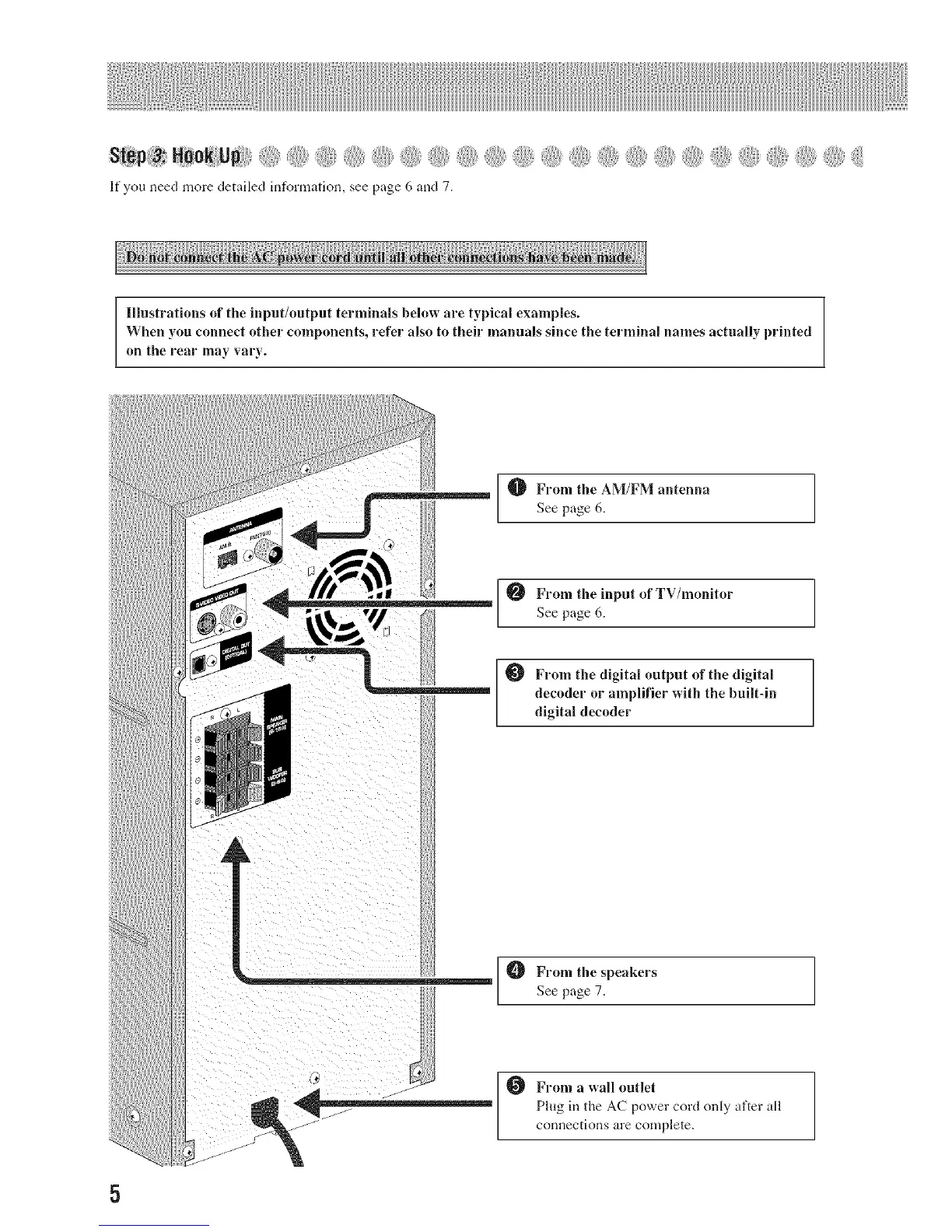

If you need more detailed information, see page 6 and 7.
Illustrations of the input/output terminals below are typical examples.
When you connect other components, refer also to their manuals since the terminal names actually printed
on the rear may vary.
O From the AM/FM antenna
See page 6.
O From the input of TV/monitor
See page 6.
From the digital output of the digital
decoder or amplifier with the built-in
digital decoder
From the speakers
See page 7.
'J" _ From a wall outlet
_ _ Plug in the AC power cord only after all
CO_ll3ectiorls are complete.
5
