CH-X400/CH-X450
1-13
Precautions on reassembling
When reassembling, also refer to the
disassembling procedures.

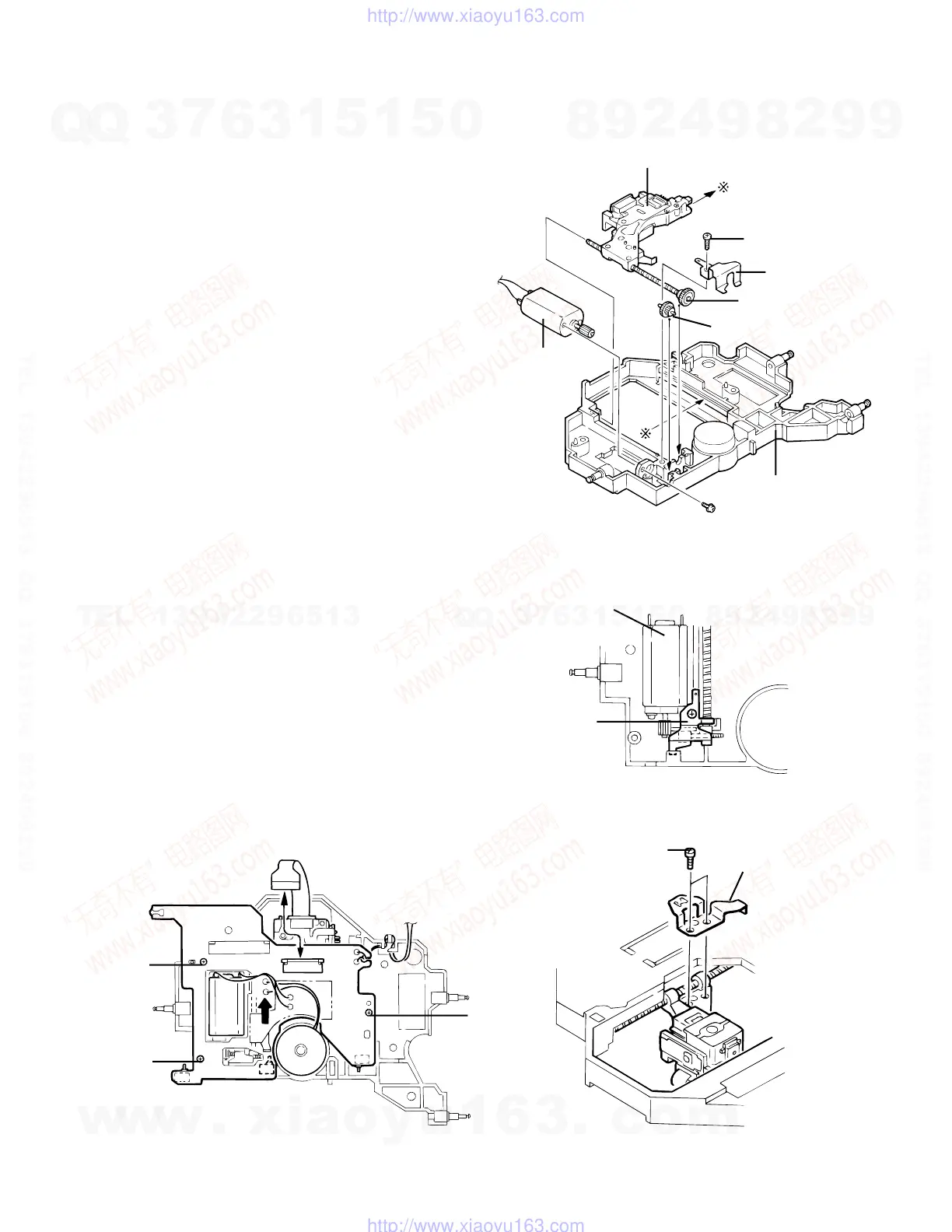

Mounting the traverse mechanism
1. When mounting the pickup assembly, attach the feed slide
shaft assembly to the traverse chassis.
Apply E-JC-525 grease to the shaft.
2. Mount the middle gear and the feed slide shaft to the traverse
chassis and secure them with the screw (14) through the
shaft holder.
3. Before mounting the mechanism PCB assembly, move the
pickup to the outer edge position, then secure the PCB
assembly using the screw (15).
At this time, check that the rest switch is correctly placed.
4. To mount the rack arm, first move the pickup to the middle
position and secure it with the screws (16).
Fig. 32
Fig. 31
Fig. 30
Fig. 29
Pickup assembly
Attached to chassis
Shaft holder
Feed slide shaft (half
coated with grease)
Middle gear
Motor
Chassis
Mounting the
feed motor assembly
Feed motor
Shaft holder
Spindle motor
Mechanism PCB assembly
Rack arm
Move the pickup to the
middle position
15
15
15
16
14
