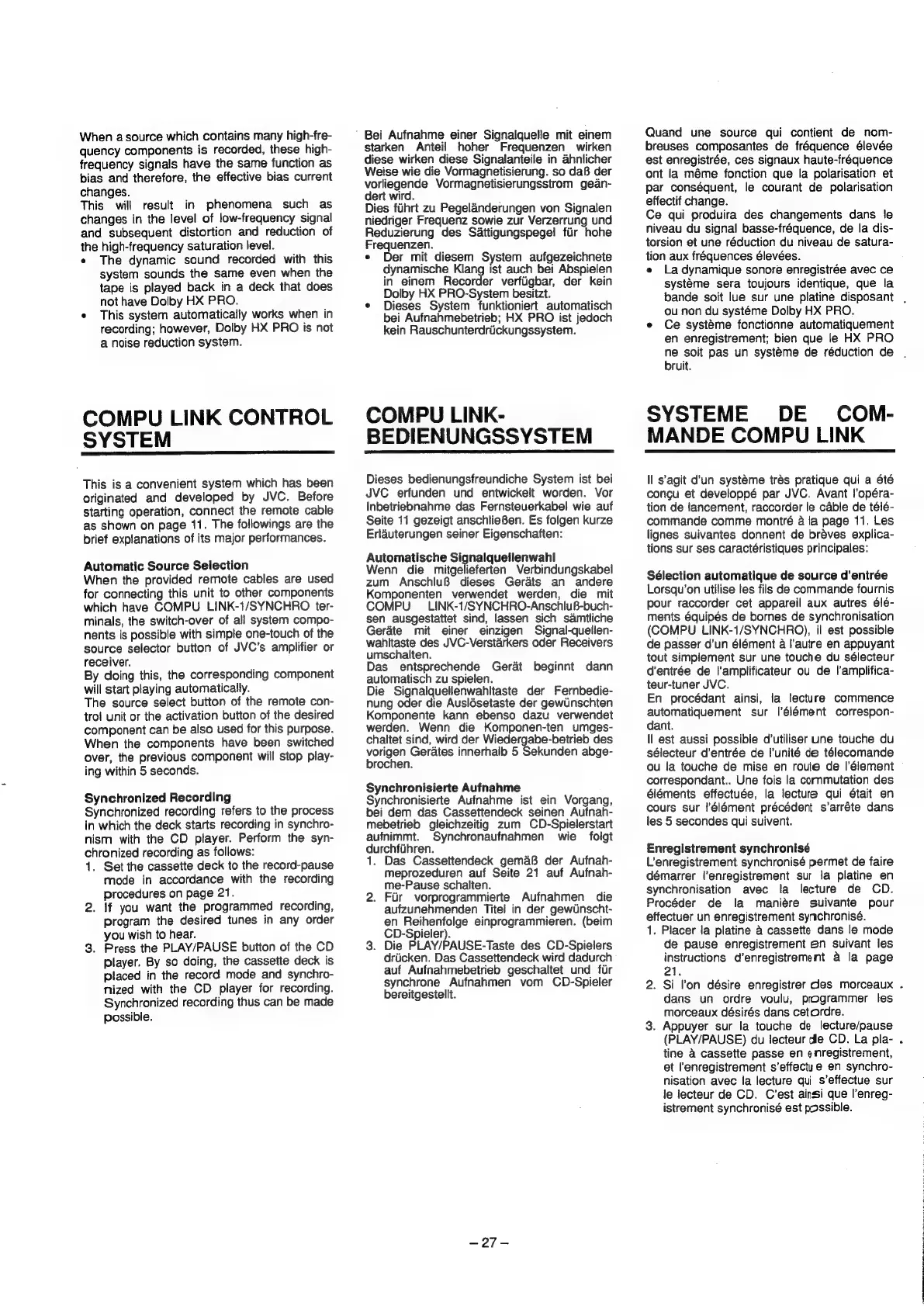

Page #28 background image
When
asource
which
contains
many
high-fre-
quency
components
is
recorded,
these
high-
frequency
signals
have
the
same
function
as
bias
and
therefore,
the
effective
bias
current
changes.
This
will
result
in
phenomena
such
as
changes
in
the
level
of
low-frequency
signal
and
subsequent
distortion
and
reduction
of
the
high-frequency
saturation
level.
e
The
dynamic
sound
recorded
with
this
system
sounds
the
same
even
when
the
tape
is
played
back
in
a
deck
that
does
not
have
Dolby
HX
PRO.
e
This
system
automatically
works
when
in
recording;
however,
Dolby
HX
PRO
is
not
a
noise
reduction
system.
COMPU
LINK
CONTROL
SYSTEM
This
is
a
convenient
system
which
has
been
originated
and
developed
by
JVC.
Before
starting
operation,
connect
the
remote
cable
as
shown
on
page
11.
The
followings
are
the
brief
explanations
of
its
major
performances.
Automatic
Source
Selection
When
the
provided
remote
cables
are
used
for
connecting
this
unit
to
other
components
which
have
COMPU
LINK-1/SYNCHRO
ter-
minals,
the
switch-over
of
all
system
compo-
nents
is
possible
with
simple
one-touch
of
the
source
selector
button
of
JVC’s
amplifier
or
receiver.
By
doing
this,
the
corresponding
component
will
start
playing
automatically.
The
source
select
button
of
the
remote
con-
trol
unit
or
the
activation
button
of
the
desired
component
can
be
also
used
for
this
purpose.
When
the
components
have
been
switched
over,
the
previous
component
will
stop
play-
ing
within
5
seconds.
Synchronized
Recording
Synchronized
recording
refers
to
the
process
in
which
the
deck
starts
recording
in
synchro-
nism
with
the
CD
player.
Perform
the
syn-
chronized
recording
as
follows:
1.
Set
the
cassette
deck
to
the
record-pause
mode
in
accordance
with
the
recording
procedures
on
page
21.
2.
If
you
want
the
programmed
recording,
program
the
desired
tunes
in
any
order
you
wish
to
hear.
3.
Press
the
PLAY/PAUSE
button
of
the
CD
player.
By
so
doing,
the
cassette
deck
is
placed
in
the
record
mode
and
synchro-
nized
with
the
CD
player
for
recording.
Synchronized
recording
thus
can
be
made
possible.
~
Bei
Aufnahme
einer
Signalquelle
mit
einem
starken
Anteil
hoher
Frequenzen_
wirken
diese
wirken
diese
Signalanteile
in
ahnlicher
Weise
wie
die
Vormagnetisierung.
so
daB
der
vorliegende
Vormagnetisierungsstrom
gean-
dert
wird.
;
Dies
fuhrt
zu
Pegelanderungen
von
Signalen
niedriger
Frequenz
sowie
zur
Verzerrung
und
Reduzierung
des
Sattigungspege!l
fir
hohe
Frequenzen.
e
Der
mit
diesem
System
aufgezeichnete
dynamische
Klang
ist
auch
bei
Abspielen
in
einem
Recorder
verfiigbar,
der
kein
Dolby
HX
PRO-System
besitzt.
*
Dieses
System
funktioniert
automatisch
bei
Aufnahmebetrieb;
HX
PRO
ist
jedoch
kein
Rauschunterdriickungssystem.
COMPU
LINK-
BEDIENUNGSSYSTEM
Dieses
bedienungsfreundiche
System
ist
bei
JVC
erfunden
und
entwickeit
worden.
Vor
Inbetriebnahme
das
Fernsteuerkabel
wie
auf
Seite
11
gezeigt
anschlieBen.
Es
folgen
kurze
Erlauterungen
seiner
Eigenschaften:
Automatische
Signalqueilenwahl
Wenn
die
mitgelieferten
Verbindungskabel
zum
AnschluB
dieses
Gerats
an
andere
Komponenten
verwendet
werden,
die
mit
COMPU
__LINK-1/SYNCHRO-AnschluB-buch-
sen
ausgesiattet
sind,
lassen
sich
samtliche
Gerate
mit
einer
einzigen
Signal-quellen-
wahltaste
des
JVC-Verstarkers
oder
Receivers
umschalten.
Das
entsprechende
Gerat
beginnt
dann
automatisch
zu
spielen.
Die
Signalquellenwahltaste
der
Fernbedie-
nung
oder
die
Auslésetaste
der
gewUinschten
Komponente
kann
ebenso
dazu
verwendet
werden.
Wenn
die
Komponen-ten
umges-
chaltet
sind,
wird
der
Wiedergabe-betrieb
des
vorigen
Gerates
innerhalb
5
Sekunden
abge-
brochen.
Synchronisierte
Aufnahme
Synchronisierte
Aufnahme
ist
ein
Vorgang,
bei
dem
das
Cassettendeck
seinen
Aufnah-
mebetrieb
gleichzeitig
zum
CD-Spielerstart
aufnimmt.
Synchronaufnahmen
wie
folgt
durchfiihren.
1.
Das
Cassettendeck
gema8
der
Aufnah-
meprozeduren
auf
Seite
21
auf
Aufnah-
me-Pause
schalten.
2.
Fur
vorprogrammierte
Aufnahmen
die
aufzunehmenden
Titel
in
der
gewUnscht-
en
Reihenfolge
einprogrammieren.
(beim
CD-Spieler).
3.
Die
PLAY/PAUSE-Taste
des
CD-Spielers
driicken.
Das
Cassettendeck
wird
dadurch
auf
Aufnahmebetrieb
geschaltet_und
fir
synchrone
Aufnahmen
vom
CD-Spieler
bereitgestellt.
-27-
Quand
une
source
qui
contient
de
nom-
breuses
composantes
de
fréquence
élevée
est
enregistrée,
ces
signaux
haute-fréquence
ont
la
méme
fonction
que
la
polarisation
et
par
conséquent,
le
courant
de
polarisation
effectif
change.
Ce
qui
produira
des
changements
dans
le
niveau
du
signal
basse-fréquence,
de
la
dis-
torsion
et
une
réduction
du
niveau
de
satura-
tion
aux
fréquences
élevées.
e
La
dynamique
sonore
enregistrée
avec
ce
systéme
sera
toujours
identique,
que
la
bande
soit
lue
sur
une
platine
disposant
,
ou
non
du
systéme
Dolby
HX
PRO.
e
Ce
systéme
fonctionne
automatiquement
en
enregistrement;
bien
que
le
HX
PRO
ne
soit
pas
un
systeme
de
réduction
de
.
bruit.
SYSTEME
DE
COM-
MANDE
COMPU
LINK
il
s'agit
d’un
systéme
trés
pratique
qui
a
été
congu
et
developpé
par
JVC.
Avant
lopéra-
tion
de
lancement,
raccorder
le
cable
de
télé-
commande
comme
montré
a
la
page
11.
Les
lignes
suivantes
donnent
de
bréves
explica-
tions
sur
ses
caractéristiques
principales:
Sélection
automatique
de
source
d’entrée
Lorsqu’on
utilise
les
fils
de
commande
fournis
pour
raccorder
cet
appareil
aux
autres
élé-
ments
équipés
de
bornes
de
synchronisation
(COMPU
LINK-1/SYNCHRO),
il
est
possible
de
passer
d’un
élément
a
l'autre
en
appuyant
tout
simplement
sur
une
touche
du
sélecteur
d’entrée
de
l'amplificateur
ou
de
l’amplifica-
teur-tuner
JVC.
En
procédant
ainsi,
la
lecture
commence
automatiquement
sur
I’élément
correspon-
dant.
ll
est
aussi
possible
d’utiliser
une
touche
du
sélecteur
d’entrée
de
lunité
de
télecomande
ou
la
touche
de
mise
en
route
de
|I’élement
correspondant..
Une
fois
la
commutation
des
éléments
effectuée,
la
lecture
qui
était
en
cours
sur
l’élément
précédent
s’arréte
dans
les
5
secondes
qui
suivent.
Enregistrement
synchronisé
Lenregistrement.
synchronisé
permet
de
faire
démarrer
l’enregistrement
sur
la
platine
en
synchronisation
avec
la
lecture
de
CD.
Procéder
de
la
maniére
suivante
pour
effectuer
un
enregistrement
synchronisé.
1.
Placer
la
platine
a
cassette
dans
le
mode
de
pause
enregistrement
en
suivant
les
instructions
d’enregistrement
a
la
page
21.
2.
Si
l'on
désire
enregistrer
des
morceaux
.
dans
un
ordre
voulu,
programmer
les
morceaux
désirés
dans
cetordre.
3.
Appuyer
sur
la
touche
de
lecture/pause
(PLAY/PAUSE)
du
lecteur
dle
CD.
La
pla-
tine
a
cassette
passe
en
enregistrement,
et
l'enregistrement
s’effectue
en
synchro-
nisation
avec
la
lecture
qui
s’effectue
sur
le
lecteur
de
CD.
C’est
ainsi
que
l’enreg-
istrement
synchronisé
est
possible.
