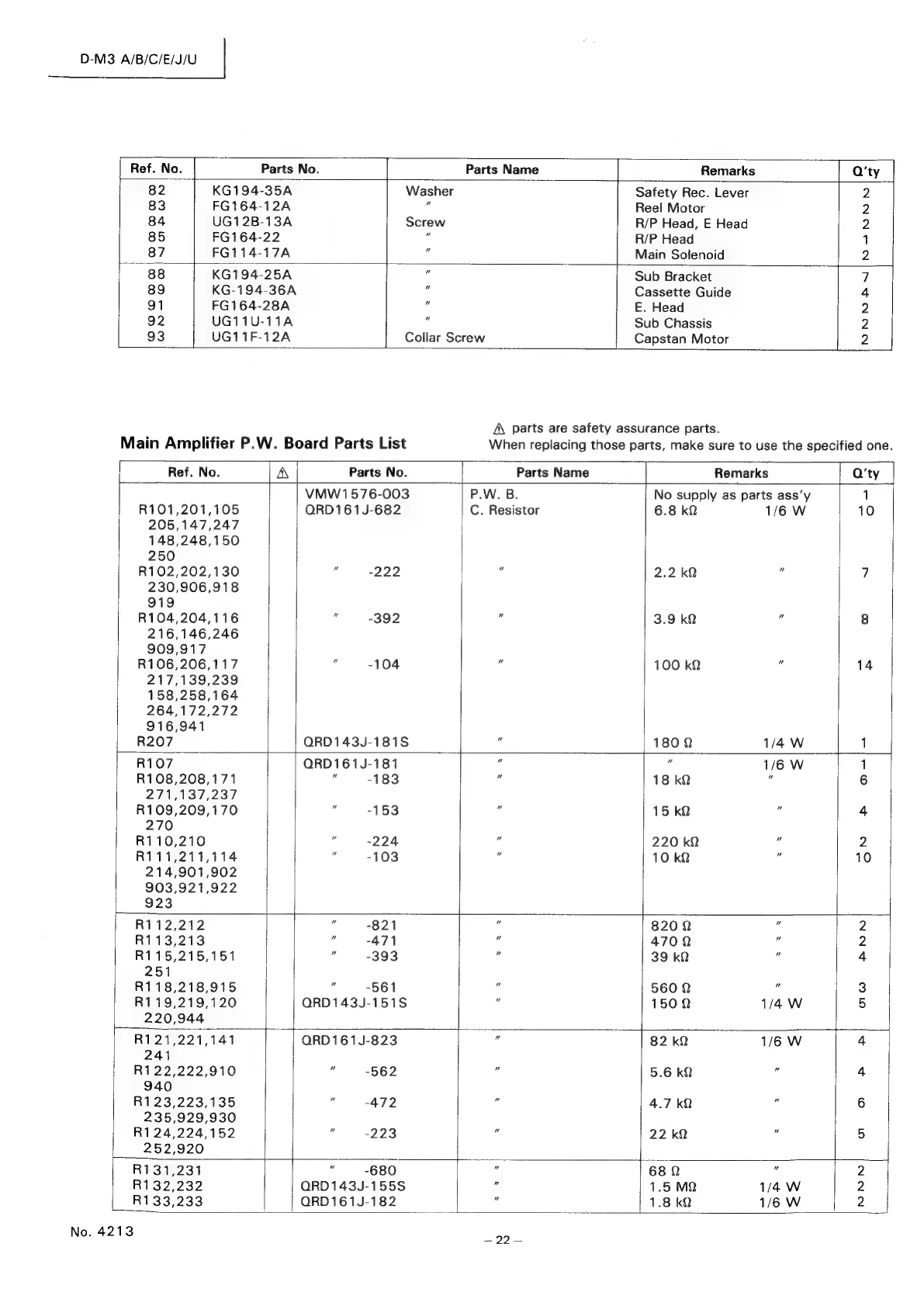

JVC D-M3 - Main Amplifier P.W.B Parts List

D-M3 A/B/C/E/J/U
Ref. No. Parts No. Parts Name Remarks ] Q'ty
82 KG194-35A Washer Safety Rec. Lever 2
83
FG164-12A
is
Reel
Motor
2
84 UG12B-13A Screw R/P Head, E Head 2
85 FG164-22 r R/P Head 1
87 FG114-17A if Main Solenoid 2
88 KG194-25A e Sub Bracket 7
89 KG-194-36A i Cassette Guide 4
91 FG164-28A # E, Head 2
92 UG11U-11A i Sub Chassis 2
93 i UG11F-12A Collar Screw Capstan Motor 2
Main Amplifier P.W. Board Parts List
A\ parts are safety assurance parts.
When replacing those parts, make sure to use the specified one.
Ref. No. A Parts No. | Parts Name Remarks Q'ty
VMW1576-003 P.W. B. No supply as parts ass’y 1
R101,201,105 QRD161J-682 C. Resistor 6.8 kQ 1/6 W 10
205,147,247
148,248,150
250
R102,202,130 * -222 id 2.2 kQ 7
230,906,918
919
R104,204,116 " -392 . 3.9 kQ e 8
216,146,246
909,917
R106,206,117 . -104 ‘ 100 kQ e 14
217,139,239
158,258,164
264,172,272
916,941
R207 QRD143J-181S 180 Q 1/4 W ml 1
R107 QRD161J-181 " sf 1/6 W 1
R108,208,171 i -183 i 18 kQ . 6
271,137,237
R109,209,170 * -153 * 15 kQ 4
270
R110,210 2 -224 f 220 kQ ” 2
R111,211,114 a -103 ‘is 10 kQ . 10 |
214,901,902
903,921,922
923
R112,212 ” -821 . 820 Q c 2
R113,213 | ig -471 e 4700 < 2
R115,215,151 2 -393 x 39 kQ m 4
251
R118,218,915 | "— .561 560 2 5 3
R119,219,120 QRD143J-151S 1502 1/4 W 5
220,944
R121,221,141 QRD161J-823 - 82 kQ 1/6 W 4
241
R122,222,910 ” -562 5.6 kQ " 4
940
R123,223,135 i -472 4.7 kQ " 6
235,929,930
R124,224,152 ¢ -223 o 22 kQ fi 5
252,920
R131,231 -680 ‘i 68 Q " 2
R132,232 ; QRD143J-155S 7 1.5 MQ 1/4 W 2
R133,233 QRD161J-182 f 1.8 kQ 1/6 W 2
No. 4213
—~22—
