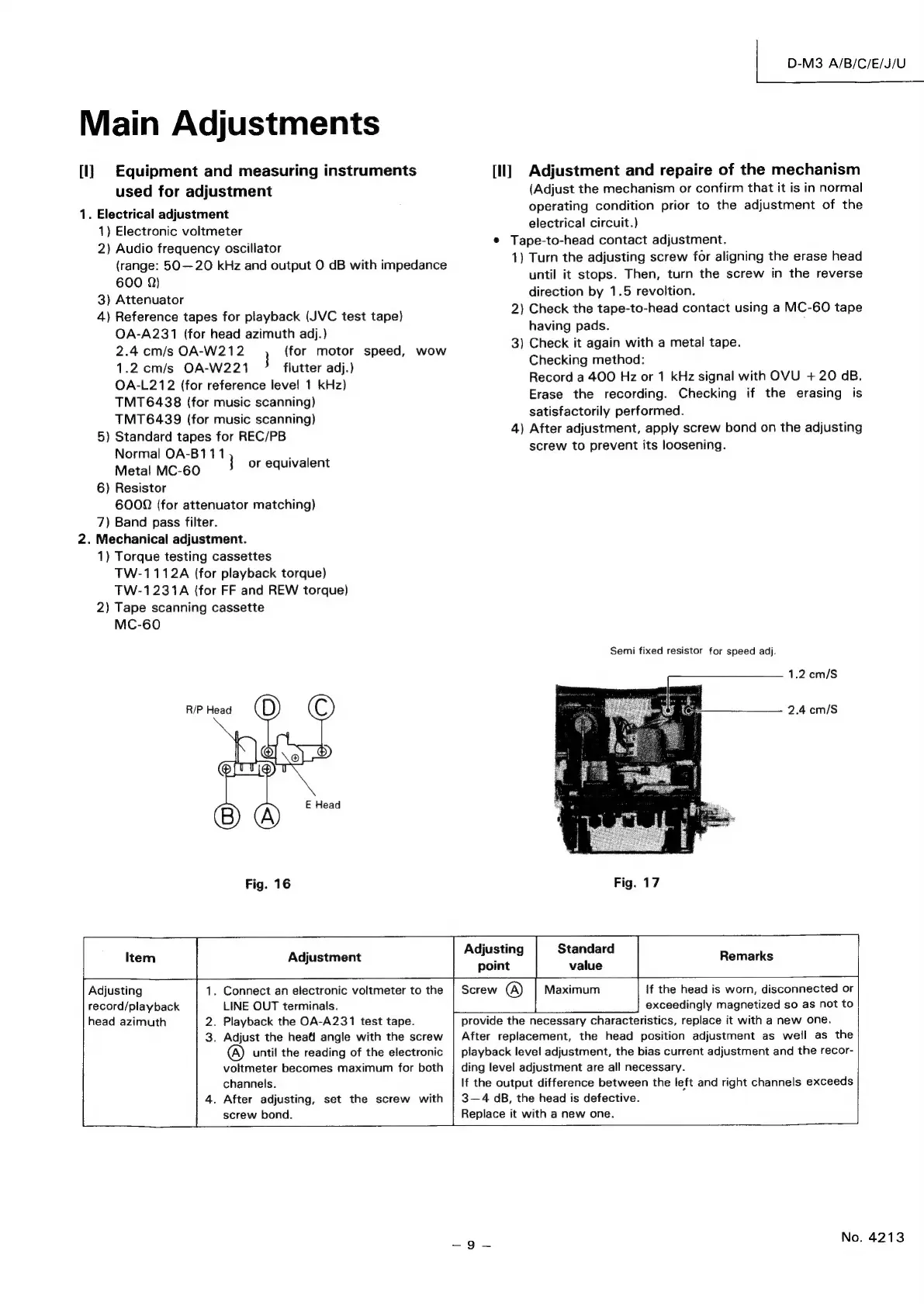

Main
Adjustments
[)
Equipment
and
measuring
instruments
used
for
adjustment
1.
Electrical
adjustment
1)
Electronic
voltmeter
2)
Audio
frequency
oscillator
(range:
50—20
kHz
and
output
O
dB
with
impedance
600
0)
3)
Attenuator
4)
Reference
tapes
for
playback
(JVC
test
tape)
OA-A231
(for
head
azimuth
adj.)
2.4
cm/s
OA-W212
}
(for
motor
speed,
wow
1.2
cm/s
OA-W221
flutter
adj.)
OA-L212
(for
reference
level!
1
kHz)
TMT6438
(for
music
scanning)
TMT6439
(for
music
scanning)
5)
Standard
tapes
for
REC/PB
Normal
OA-B111
Metal
MC-60
6)
Resistor
}
or
equivalent
6000
(for
attenuator
matching)
7)
Band
pass
filter.
.
Mechanical
adjustment.
1)
Torque
testing
cassettes
TW-1112A
(for
playback
torque)
TW-1231A
(for
FF
and
REW
torque)
2)
Tape
scanning
cassette
MC-60
R/P
Head
Fig.
16
D-M3
A/B/C/E/J/U
[I]
Adjustment
and
repaire
of
the
mechanism
(Adjust
the
mechanism
or
confirm
that
it
is
in
normal
operating
condition
prior
to
the
adjustment
of
the
electrical
circuit.)
¢
Tape-to-head
contact
adjustment.
1)
Turn
the
adjusting
screw
for
aligning
the
erase
head
until
it
stops.
Then,
turn
the
screw
in
the
reverse
direction
by
1.5
revoltion.
2)
Check
the
tape-to-head
contact
using
a
MC-60
tape
having
pads.
,
3)
Check
it
again
with
a
metal
tape.
Checking
method:
Record
a
400
Hz
or
1
kHz
signal
with
OVU
+
20
dB.
Erase
the
recording.
Checking
if
the
erasing
is
satisfactorily
performed.
4)
After
adjustment,
apply
screw
bond
on
the
adjusting
screw
to
prevent
its
loosening.
Semi
fixed
resistor
for
speed
adj.
1.2
cm/S
2.4
cm/S
Fig.
17
Item
Adjustment
Adjusting
record/playback
head
azimuth
No
.
Connect
an
electronic
voltmeter
to
the
LINE
OUT
terminals.
.
Playback
the
OA-A231
test
tape.
.
Adjust
the
heal
angle
with
the
screw
until
the
reading
of
the
electronic
voltmeter
becomes
maximum
for
both
channels.
.
After
adjusting,
set
the
screw
with
screw
bond.
Adjusting
Standard
point
value
Maximum
lf
the
head
is
worn,
disconnected
or
exceedingly
magnetized
so
as
not
to
provide
the
necessary
characteristics,
replace
it
with
a
new
one.
After
replacement,
the
head
position
adjustment
as
well
as
the
playback
level
adjustment,
the
bias
current
adjustment
and
the
recor-
ding
level
adjustment
are
all
necessary.
If
the
output
difference
between
the
left
and
right
channels
exceeds
3—4
dB,
the
head
is
defective.
Replace
it
with
a
new
one.
Remarks
No.
4213
