D-M3 A/B/C/E/J/U

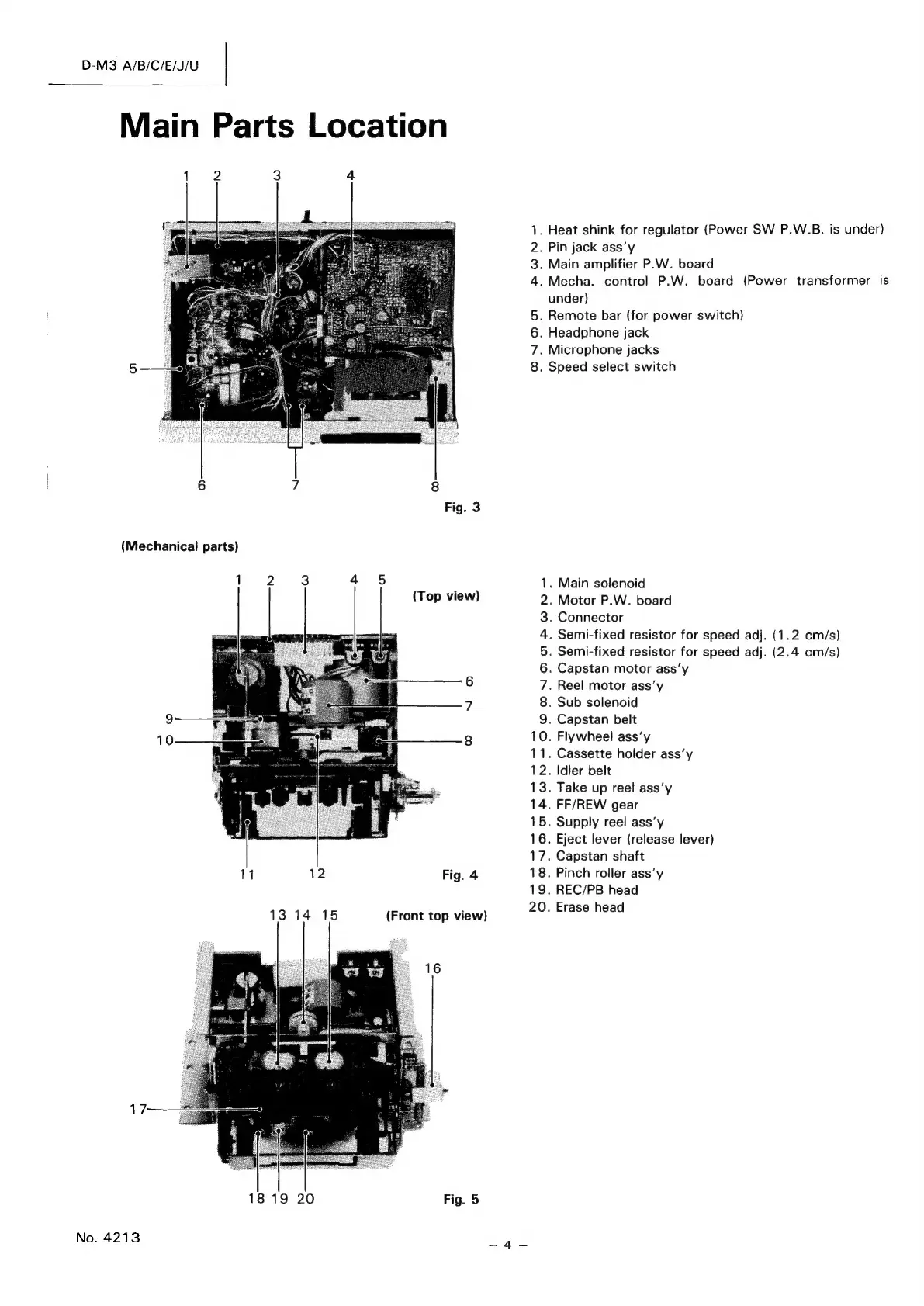

Main Parts Location
. Heat shink for regulator (Power SW P.W.B. is under)
. Pin jack ass’y
. Main amplifier P.W. board
. Mecha. control P.W. board (Power transformer is
under)
. Remote bar (for power switch)
. Headphone jack
. Microphone jacks
. Speed select switch
PWN
ON Oo
(Mechanical parts)
. Main solenoid
. Motor P.W. board
. Connector
. Semi-fixed resistor for speed adj. (1.2 cm/s)
. Semi-fixed resistor for speed adj. (2.4 cm/s)
. Capstan motor ass’y
. Reel motor ass’y
. Sub solenoid
. Capstan belt
. Flywheel ass’y
. Cassette holder ass’y
. Idler belt
. Take up reel ass’y
. FF/REW gear
. Supply reel ass‘y
. Eject lever (release lever)
. Capstan shaft
. Pinch roller ass’y
. REC/PB head
. Erase head
= OCOOOANODABRWNH —
‘
—_— —) — — ahWN-
=_- Oo
Own OD
11 12 Fig. 4
wb = oo
13 14 15 (Front top view)
17
18 19 20 Fig. 5
