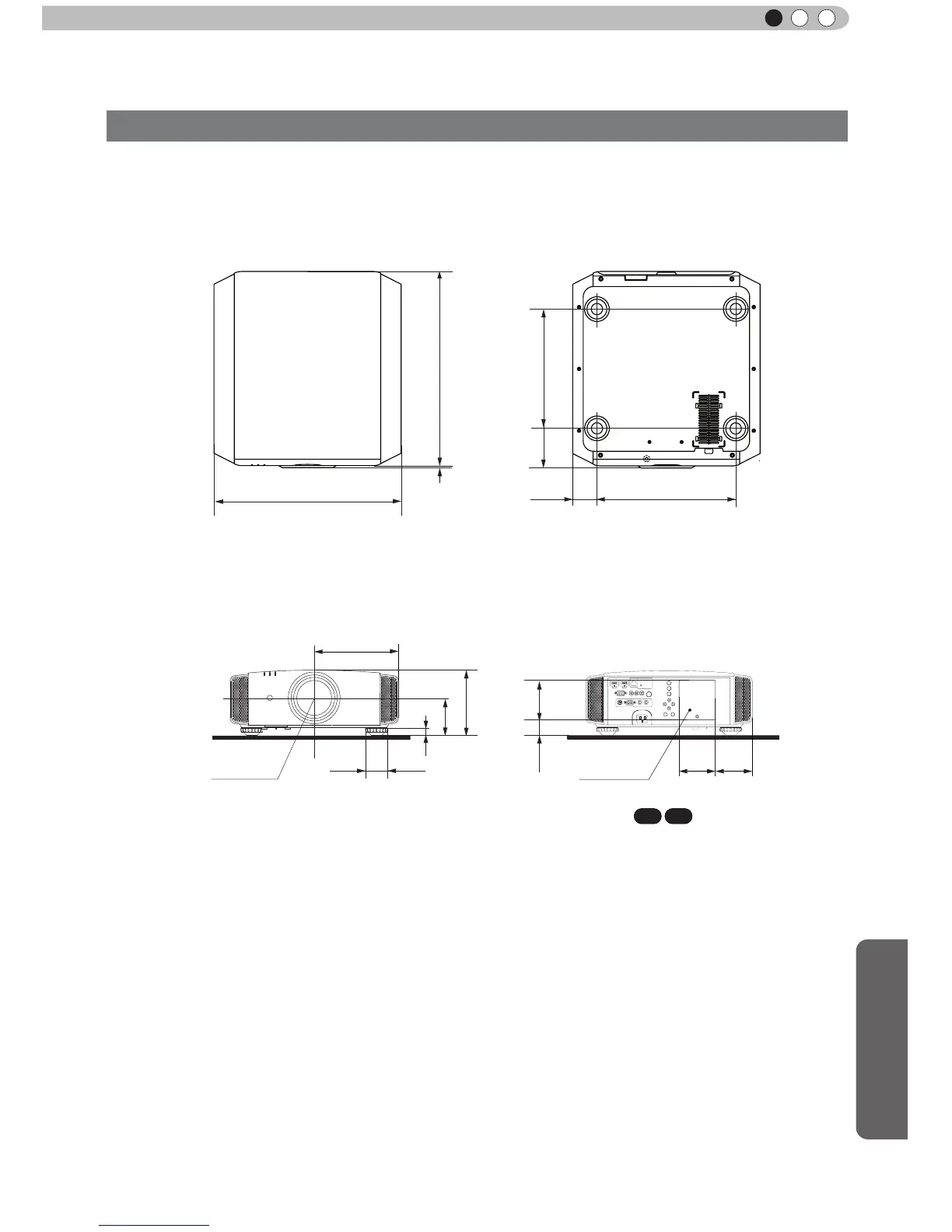

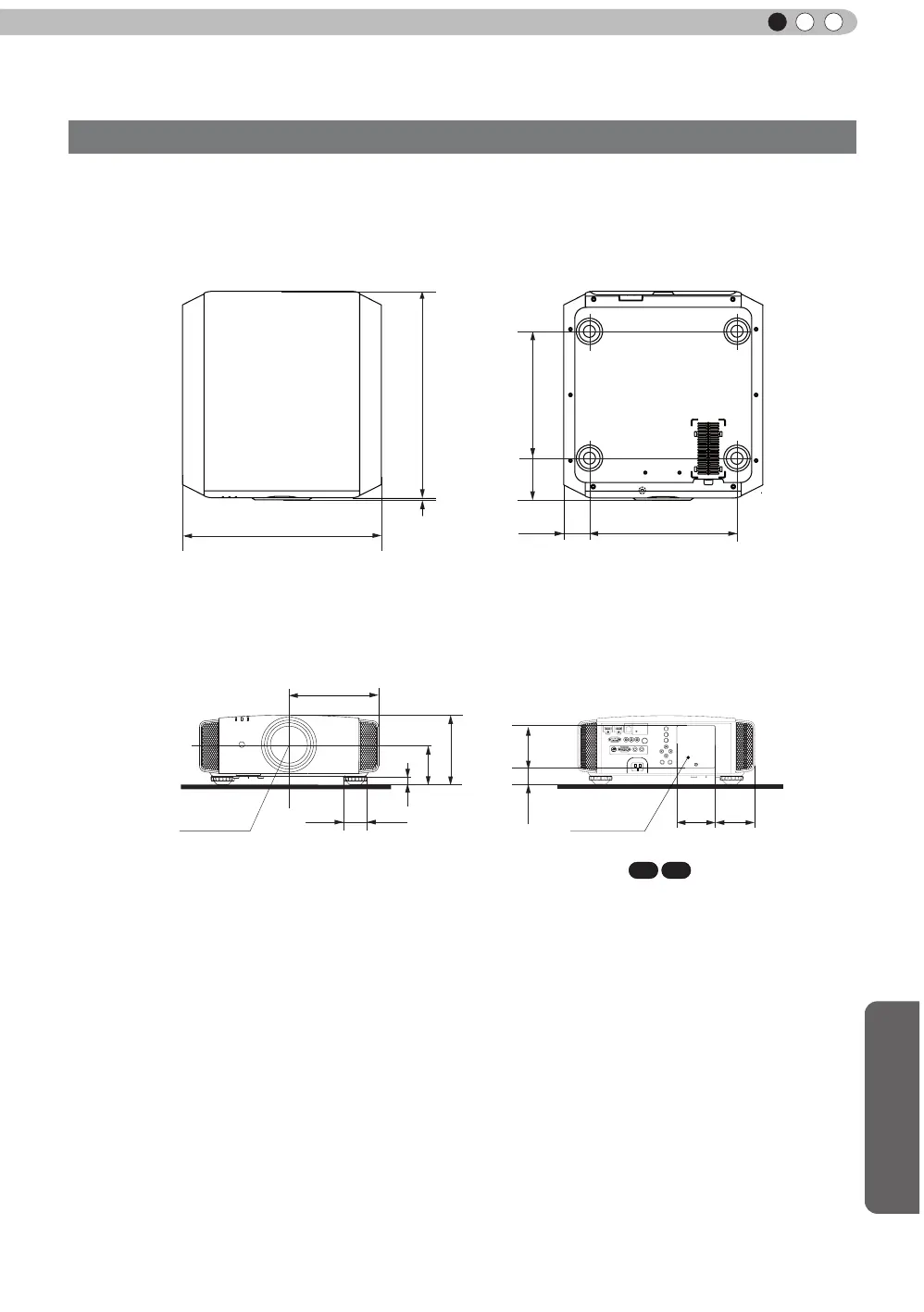

Dimensions
60
(Unit: mm)
455
5
337
59
227.5
Φ60
24
103.5
178.5
290
472
91
110
32
110
92
Lens center
Lamp cover
■
■
■■
Top Surface
Front
Bottom Surface

Back Surface
Connection terminal section of the
illustration is
X7 X9
.
