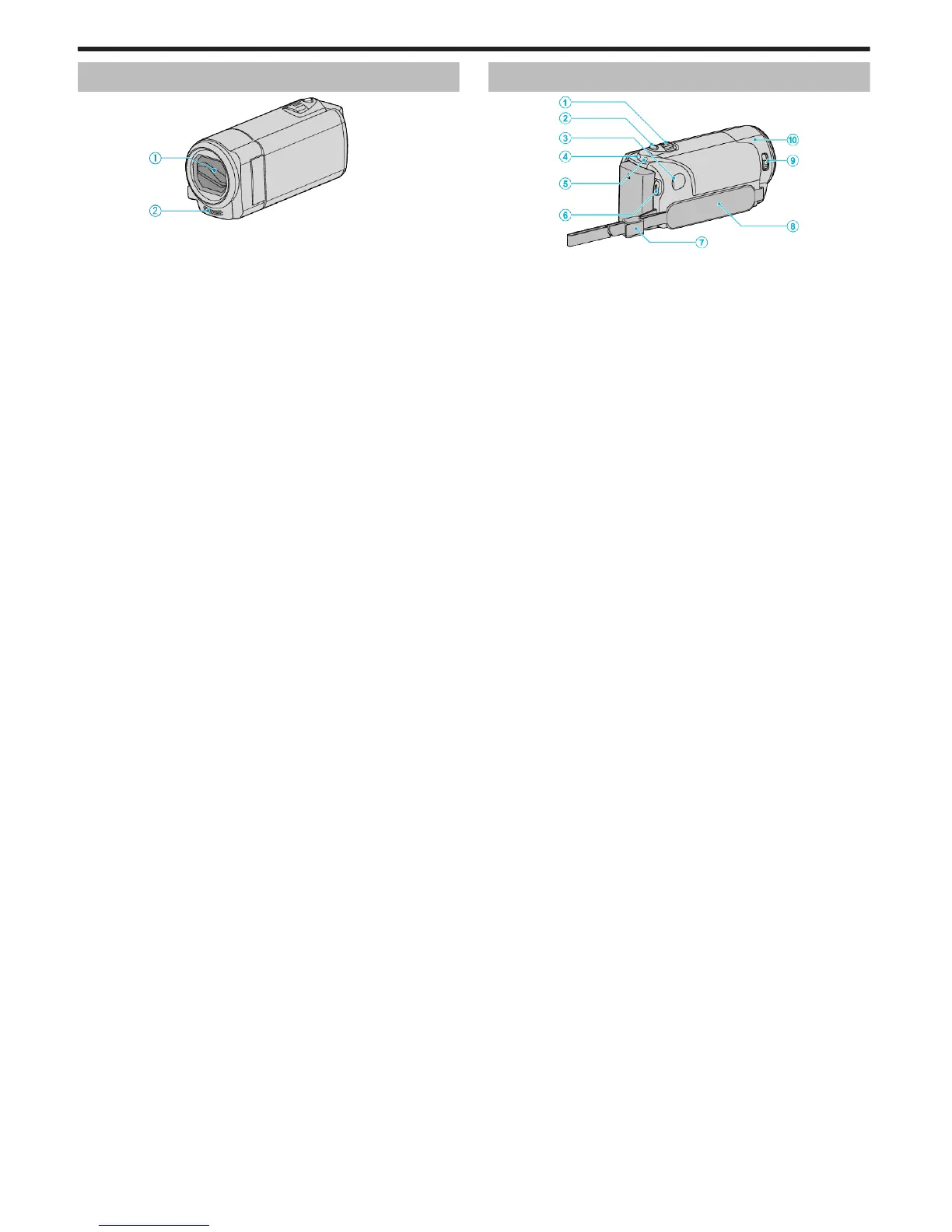

Front
.
1
Lens Cover
0
Do not touch the lens and lens cover.
0
Do not cover the lens with your fingers during recording.
2
Stereo Microphone
0
Do not cover the microphone with your fingers during video recording.
Rear
.
1
Zoom/Volume Lever
0
During shooting: Adjusts the shooting range.
0
During video playback: Adjusts the volume.
0
During index screen display: Moves to the next or previous page.
2
i.AUTO Button
0
Switches between Intelligent Auto and Manual modes.
3
DC Connector
0
Connects to an AC adapter to charge the battery.
4
ACCESS (Access) Lamp
0
Lights up/blinks during recording or playback.
Do not remove the battery pack, AC adapter, or SD card.
5
POWER/CHARGE (Power/Charge) Lamp
0
Lights up: Power "ON"
0
Blinks: Charging in progress
0
Goes out: Charging finished
6
START/STOP Button (Video Recording) /
d
/
e
(Play/Pause) Button (Video Playback)
0
Starts/stops video recording.
0
Starts/pauses video playback.
7
Strap Lock
0
Allows the grip belt to be removed and used as a hand strap.
8
Grip Belt
0
Pass your hand through the grip belt to hold this unit firmly.
“Grip Adjustment” (A p. 13)
9
Lens Cover Switch
0
Opens and closes the lens cover.
10
Camera Sensor
0
Do not cover the internal sensor with your fingers during video
recording.
