JVC Everio GZ-MS230 User Manual

Playing Back on TV
1

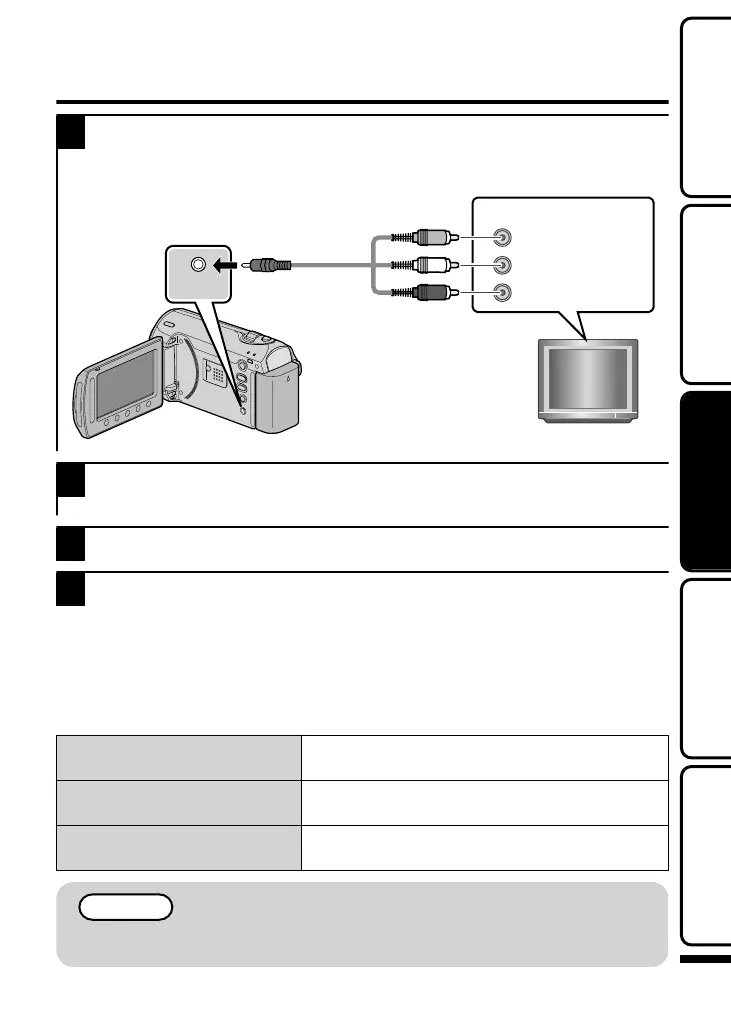

Connect to a TV.
* Refer also to the instruction manual of the TV.
●
Press the Power button for more than 2 seconds to turn off this unit.
.
A
V
AV
Yellow
White
Red
ToAVTerminal
VideoInput
VideoInput
AudioInput(L)
AudioInput(R)
TV
AVCable
(Provided)
2
Connect the AC adapter. ( P.6)
●
This unit powers on automatically when the AC adapter is connected.
3
Select the TV input switch.
4
Play back a file. ( P.14)
■
To play back with date/time display
Set “DISPLAY ON TV” in the connection settings menu to “ON”.
Alternatively, set “ON-SCREEN DISPLAY” in the playback menu to “DISPLAY ALL”
or “DISPLAY DATE ONLY”.
■
When images look unnatural on the TV
Images do not appear on the TV
properly.
●
Disconnect the cable and connect again.
●
Restart this unit by turning off and on.
Images are projected vertically
on the TV.
Set “VIDEO OUTPUT” in the connection settings
menu to “4:3”.
Images are projected
horizontally on the TV.
Adjust the TV's screen accordingly.
NOTE
●
Please contact the TV manufacturer on questions or problems with setting
the TV to the correct mode.
For more information, refer to the Detailed User Guide
http://manual.jvc.co.jp/index.html/
15
Getting StartedRecordingPlaybackCopying
Further
Information

JVC Everio GZ-MS230 Specifications

General

Digital zoom	800 x
Optical zoom	39 x
Image stabilizer	Yes
Focal length range	2.2 - 85.8 mm
Interchangeable lens	-
Focal length (35mm film equivalent)	38 - 1482 mm
Sensor type	CCD
Total megapixels	- MP
Optical sensor size	1/6 \
Optical sensor resolution	800000 pixels
Interface	USB 2.0
Aperture range (F-F)	1.8 - 4.3
Power consumption (typical)	1.5 W
Display diagonal	2.7 \
Image formats supported	JPG
Maximum image resolution	- pixels
Audio system	Dolby Digital
USB 2.0 ports quantity	1
Flash memory	8 GB
Camcorder media type	Memory card
Disc types supported	No
Compatible memory cards	SD, SDHC
Internal storage capacity	- GB
Product color	Red
Battery type	BN-VG107
Battery capacity	- mAh
Battery life (max)	- h
Camcorder type	Handheld camcorder

Weight and Dimensions

Depth	110 mm
Width	52 mm
Height	62 mm
Weight	230 g
