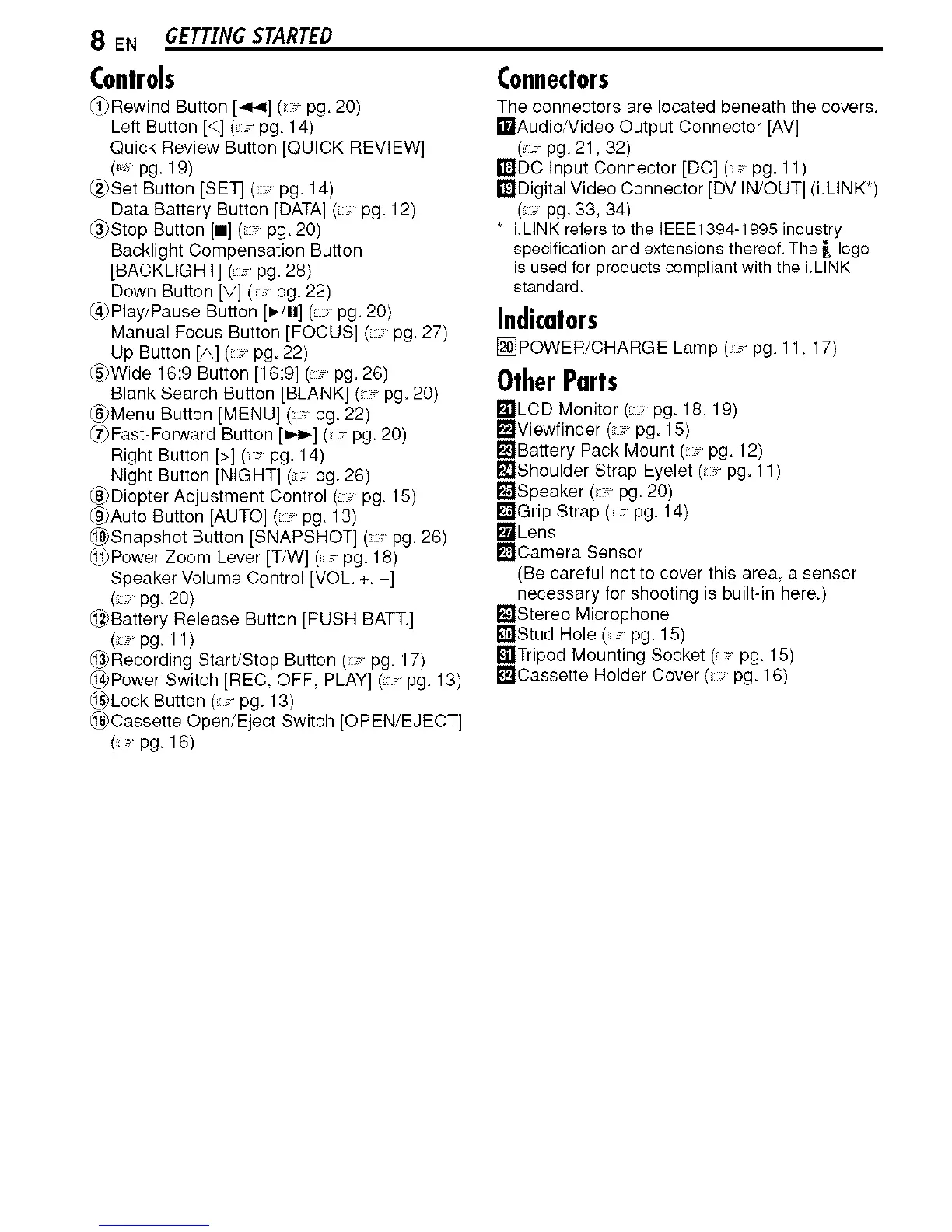

8 EN GETTINGSTARTED
Controls
(_Rewind Button [-<4] (pg.20)
Left Button [<] ( pg. 14)
Quick Review Button [QUICK REVIEW]
(_,- pg. 19)
(_Set Button [SET] (pg. 14)
Data Battery Button [DATA] ( pg. 12)
_)Stop Button [11] (pg.20)
Backlight Compensation Button
[BACKLIGHT] ( pg. 28)
Down Button [v] (: pg. 22)
(_Play/Pause Button [1_/11](" pg. 20)
Manual Focus Button [FOCUS] (pg.27)
Up Button [A](pg.22)
(5)Wide 16:9 Button [16:9] ( pg. 26)
Blank Search Button [BLANK] ( "pg. 20)
_)Menu Button [MENU] ( pg. 22)
_7)Fast-Forward Button [1_1_] (pg. 20)
Right Button [>] ( pg. 14)
Night Button [NIGHT] (_ pg. 26)
_)Diopter Adjustment Control ( "pg. 15)
@Auto Button [AUTO] ( pg. 13)
@Snapshot Button [SNAPSHOT] ( "pg. 26)
@Power Zoom Lever [T/W] (pg. 18)
Speaker Volume Control [VOL +, -]
( "pg. 20)
@Battery Release Button [PUSH BATT.]
( "pg. 11)
@Recording Start/Stop Button ( pg. 17)
@Power Switch [REC, OFF, PLAY] ( "pg. 13)
@Lock Button (pg. 13)
@Cassette Open/Eject Switch [OPEN/EJECT]
( "pg. 16)
Connectors
The connectors are located beneath the covers.
mAudio/Video Output Connector [AV]
(pg.21,32)
reDO Input Connector [DO] (: pg. 11)
mDigital Video Connector [DV IN/OUT] (i.LINK*)
("pg.33,34)
* i.LINK refers to the IEEE1394-1995 industry
specification and extensions thereof. The 5, logo
is used for products compliant with the i.LINK
standard.
Indicators
_]POWER/CHARGE Lamp (pg. 11, 17)
Other Parts
RILCD Monitor ( pg. 18, 19)
mViewfinder ( " pg. 15)
_lBattery Pack Mount (pg. 12)
mShoulder Strap Eyelet (pg. 11)
_IL"_Speaker ( pg. 20)
mGripStrap( "pg. 14)
_,RLens
mCamera Sensor
(Be careful not to cover this area, a sensor
necessary for shooting is built-in here.)
mStereo Microphone
mStud Hole ( pg. 15)
MTripod Mounting Socket (:- pg. 15)
mOassette Holder Cover (pg. 16)
To Next Page
