Docking Station

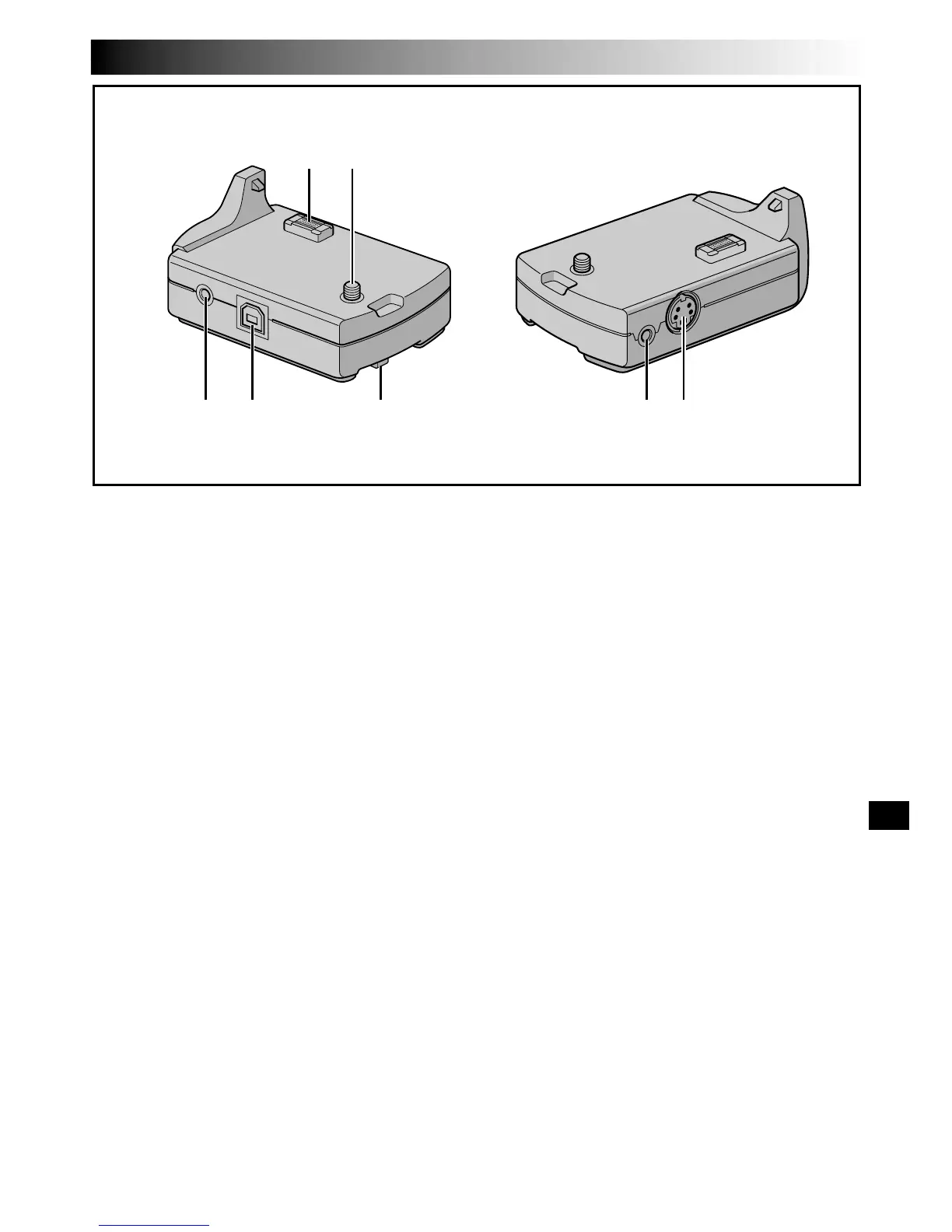

1 Multi Connector
The Docking Station can be connected with this
camcorder through this connector. Never touch
it with your hand or hit it with a hard object; if
the pins are damaged, the connectors will
become unusable due to contact failure.
2 Screw .................................................. 墌 pg. 25
3 Headphone Connector [PHONE] ......... 墌 pg. 66
No sound is output from the speaker when
headphones are connected to this connector.
4 USB (Universal Serial Bus) Connector .. 墌 pg. 74
Connect to a USB-equipped computer to
download the entire contents of a memory card
in only 80 seconds using the provided software.
5 Screw Knob ......................................... 墌 pg. 25
To attach the camcorder, tighten this clockwise.
6 Edit Connector [EDIT] .......................... 墌 pg. 70
Connect the editing cable when performing
Random Assemble Editing ........... 墌 pg. 69 – 73
7 S-Video Output Connector
[S-VIDEO OUT] ....................... 墌 pg. 24, 58, 70
