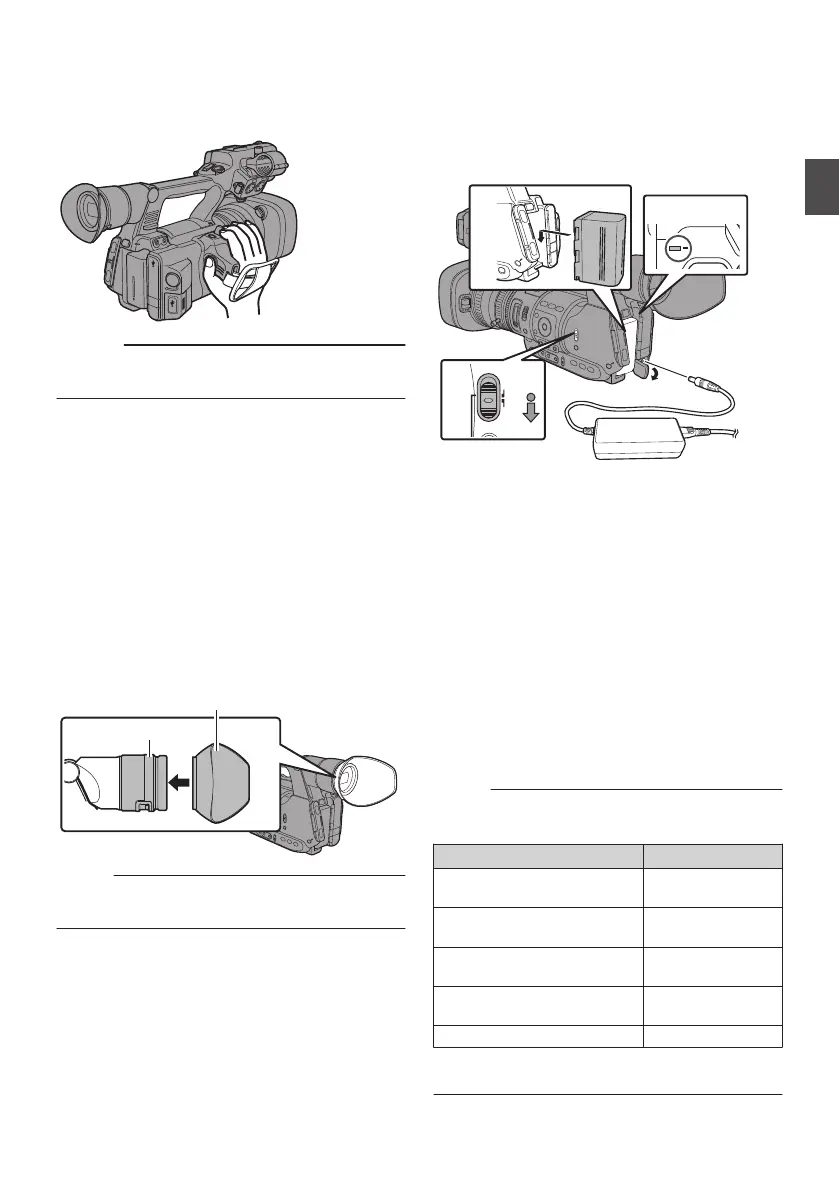

Adjusting the Grip Belt
Open the pad and
adjust the position of the grip belt
accordingly.
.
AUX
INPUT2
INPUT1
DEVICE
AV
A
BAT
T.RELEA
SE
POWER
/CHG
B
HDMI
REMOTE
DC
HD/SD
SDI
REC
HOST
Caution :
0
If
the
grip
is
loose, the camera recorder may fall
off resulting in injuries or malfunction.
Attaching the Large
Eyecup
0
Attach the large eyecup (supplied) to prevent
external light from entering the viewfinder
screen and cameraman’s vision.
0
Align and attach to the groove of the eyecup
mounted on the camera recorder.
0
The large eyecup can be attached in any
direction.
.
Large Eyecup (supplied)
Eyecup
Memo :
0
Do not remove the eyecup that is premounted
on the camera recorder.
Charging the Battery
Charging the Battery
Charge the battery immediately after purchase or
when the battery power is running low.
*
The battery is not charged when purchased.
.
1
2
3
4
4
POWER
/CHG
MODE
POWER
ON
OFF
(CHG)
1
Hold down the lock button (blue) at the
center of the [POWER ON/OFF(CHG)] switch
to set to “OFF(CHG)”.
2
Attach the supplied battery.
Slide it in until you hear a click.
3
Connect the supplied AC adapter to the
[DC]
terminal.
Open the cover
of the [DC] terminal and connect
as shown in the diagram.
4
Connect the AC adapter to a power outlet.
0
The [POWER/CHG] lamp blinks during
charging and will go out after charging is
complete.
0
Remove the AC adapter after charging is
complete.
Memo :
0
Blinking of the [POWER/CHG] lamp during
charging indicates the charge level.
[POWER/CHG] Lamp
Charge Level
Orange blinking
(4 times per second)
Less than 25 %
Orange blinking
(3 times per second)
Less than 50 %
Orange blinking
(2 times per second)
Less than 75 %
Orange blinking
(1 time per second)
Less than 100 %
Light goes out Fully charged
0
You can charge the
battery even when operating
the camera recorder using the AC adapter.
13
Preparations
To Next Page
