(No.MA189)1-7
SECTION 3
DISASSEMBLY
3.1 Main body
3.1.1 Removing the front panel assembly
(See Fig.1)
Push the detach button in the lower right part of the front panel
assembly and remove the front panel assembly.

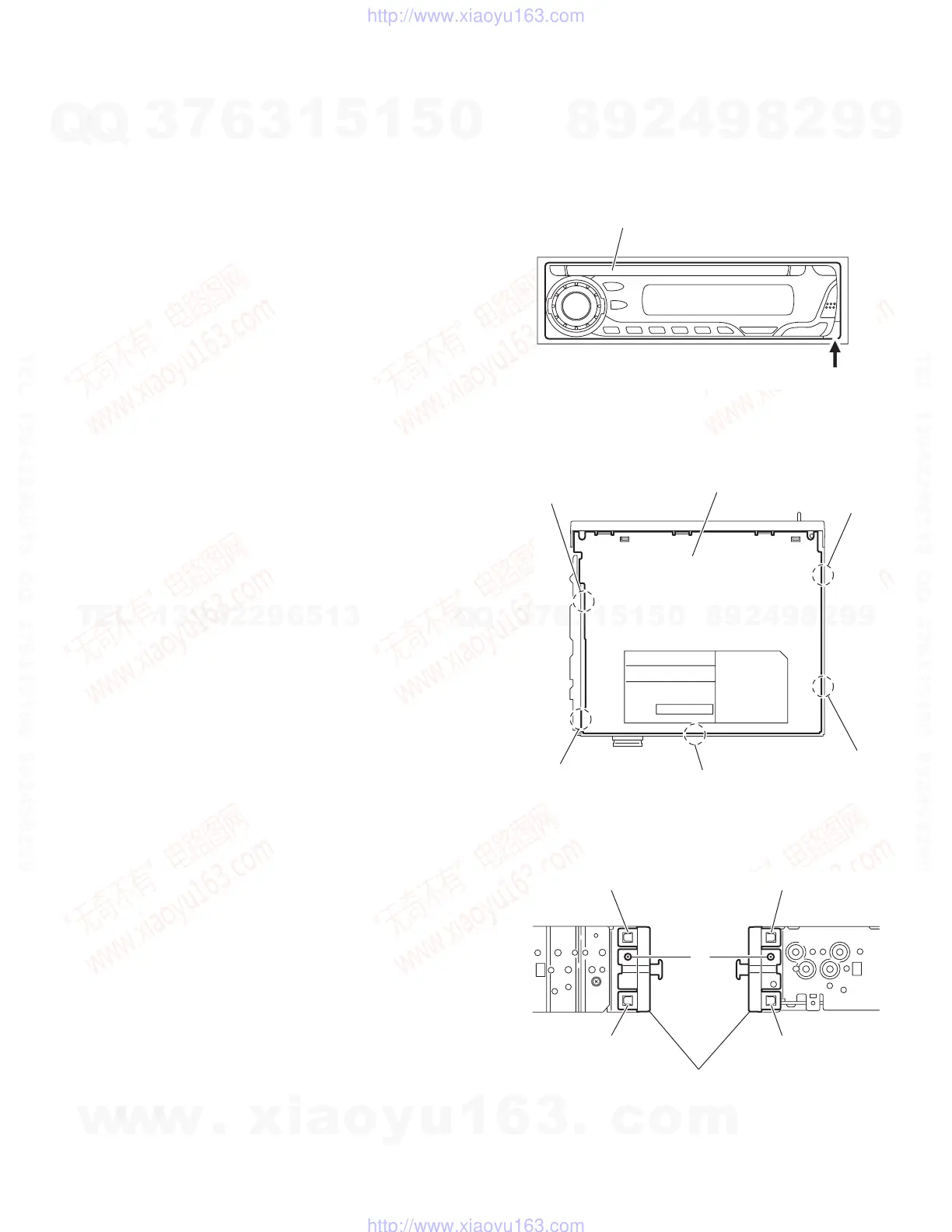

Fig.1
3.1.2 Removing the bottom cover
(See Fig.2)
From the bottom side of the main body, insert a screwdriver un-
der the joints to release the joints (a, b, c) and remove the bottom
cover from the main body.
Caution:
When releasing the joints using a screwdriver, do not damage
the main board.
Fig.2
3.1.3 Removing the front chassis assembly
(See Fig.3)
• Remove the front panel assembly and bottom cover.
(1) From the both sides of the main body, remove the two
screws A.
(2) Release the joints (d, e) and remove the front chassis as-
sembly toward the front.
Fig.3
