1-8 (No.MA189)

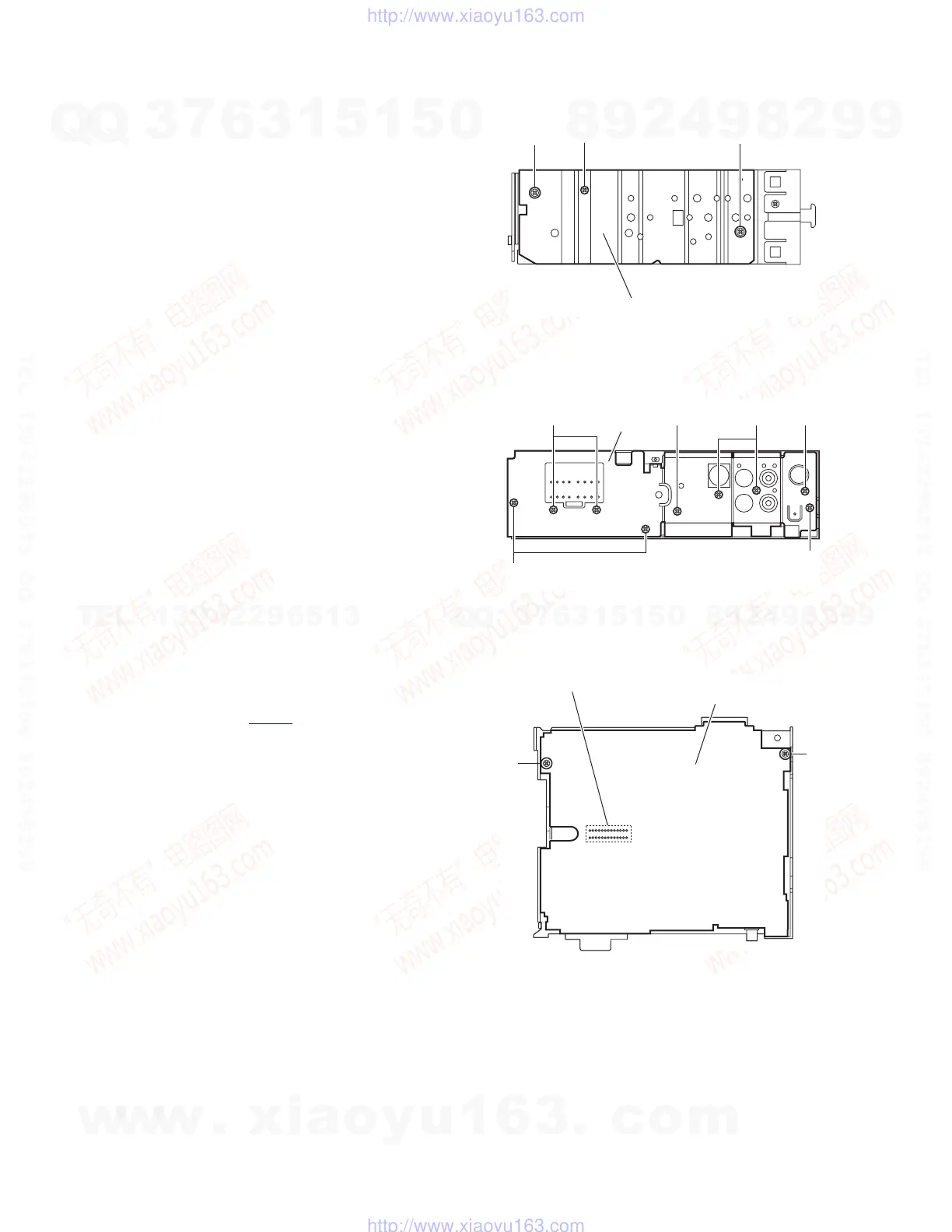

3.1.4 Removing the heat sink
(See Fig.4)
Remove the front panel assembly as required.
From the left side of the main body, remove the screw B and two
screws C attaching the heat sink.
Fig.4
3.1.5 Removing the rear bracket
(See Fig.5)
Remove the bottom cover.
Remove the three screws D, four screws E and two screws F at-
taching the rear bracket from the back side of the main body.
Fig.5
3.1.6 Removing the main board
(See Fig.6)
Remove the front panel assembly, bottom cover, front chassis
assembly, heat sink and rear bracket.
(1) Remove the two screws G attaching the main board.
(2) Disconnect the connector CN501
and remove the main
board.
Fig.6
Heat sink
BCC
EF
D
D
E
Rear bracket
F
Main board
G
G
CN501
