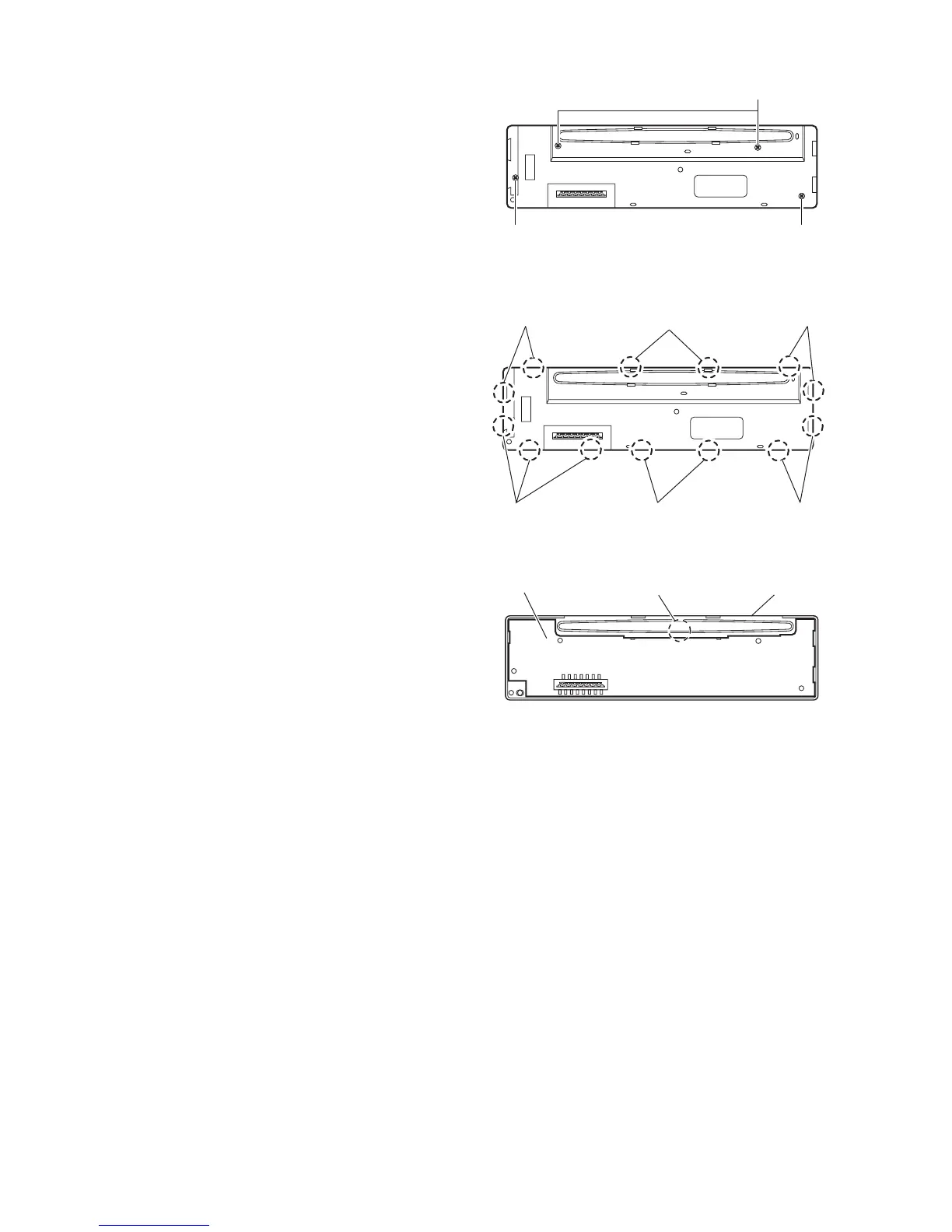

Page #8 background image
1-8 (No.49837)
2.1.9 Removing the front board
(See Figs.9 to 11)
Prior to performing the following procedure, remove the front
panel assembly.
(1) Remove the four screws K on the back side of the front
panel assembly. (See Fig.9.)
(2) Release the thirteen joints g. (See Fig.10.)
(3) Release the joint h and take out the front board. (See
Fig.11.)
Fig.9
Fig.10
Fig.11
K
K
K
Joints g
Joints g Joints g
Joints g
Joints g
Joints g
Front board
Joint h
Front panel assembly
