KS-LH4R
1-7
Check the mode is set to EJECT. Push down the
front part of the cassette holder and move in the
direction of the arrow to release the joint f.
Move the rear part of the cassette hanger assembly
in the direction of the arrow to release it from the two
joint bosses g.
Release the holder stabilizer spring from the hooks h
and i, then pull out from the cassette hanger
assembly.
Bring up the rear side of the cassette hanger
assembly to release the joint j and k.
Pull out the cassette catch from the cassette hanger
assembly.
1.
2.
3.
4.
5.

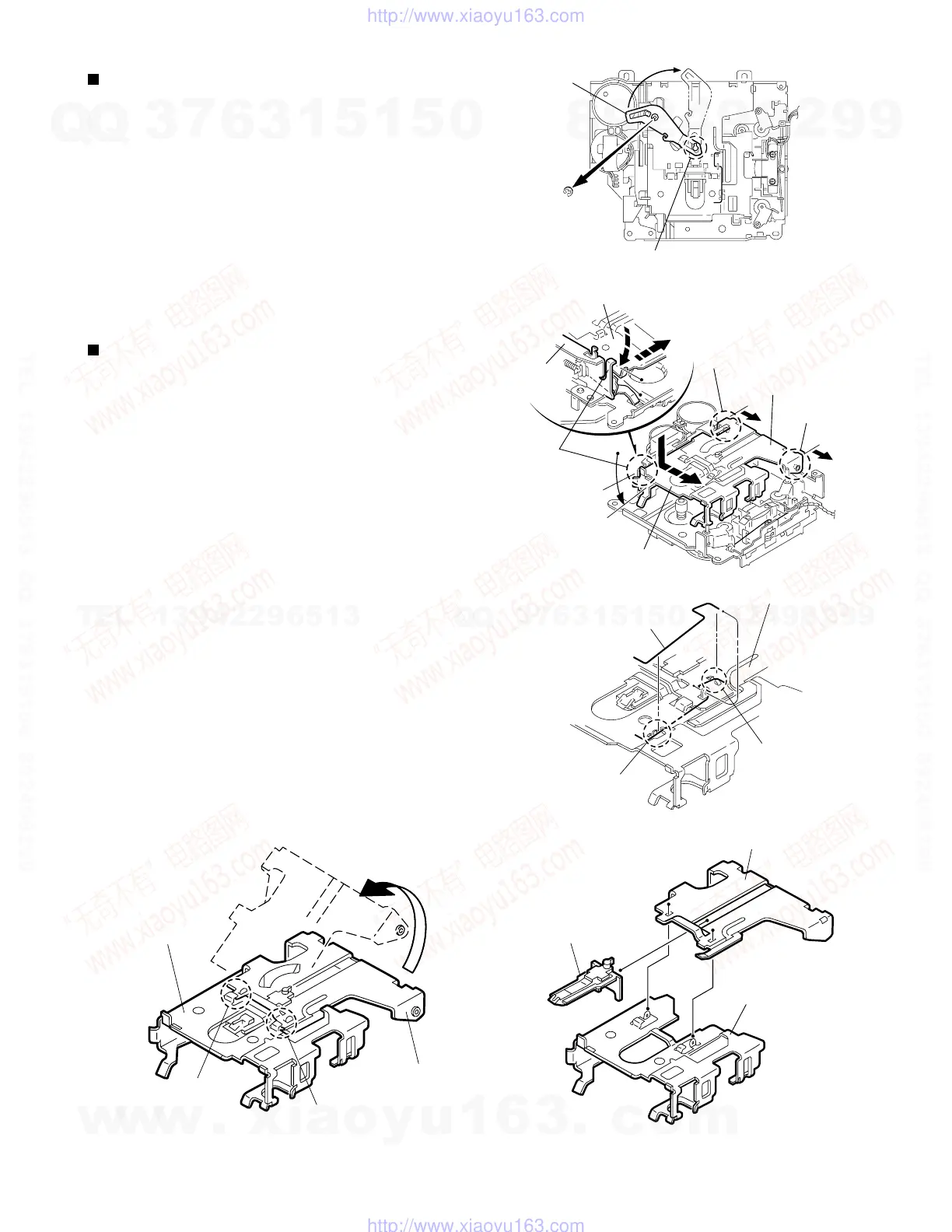

Removing the cassette hanger assembly /
cassette holder (See Fig.6 to 9)
Remove the E-washer attaching the load arm.
Move the load arm in the direction of the arrow and
release the joint e on the cassette catch.
1.
2.
Removing the load arm (See Fig.5)
Fig.5
Fig.6
Fig.7
Fig.9
Fi
g
.8
Load arm
E-washer
Joint e
Cassette holder assembly
Cassette holder assembly
Side bracket
Joints f
Cassette holder assembly
Cassette hanger assembl
y
Cassette hanger assembly
Cassette hanger
assembly
Boss g
Boss g
Cassette hanger assembly
Cassette stabilizer spring
Hook i
Hook k
Hook h
Hook j
Cassette holder
assembly
Cassette catch
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
