KS-LH4R
1-9
Remove the polywasher and pull out the pinch arm
(F) assembly.
Remove the compulsion spring.
1.
2.
Removing the pinch arm (F) assembly
(See Fig.13 and 14)
Remove the polywasher and pull out the pinch arm
(R) assembly.
1.
Removing the pinch arm (R) assembly
(See Fig.13 and 15)
Move the slide chassis assembly in the direction of
the arrow to release the two joints o and remove
from the main chassis.
Remove the rack link.
1.
2.
Removing the slide chassis assembly
(See Fig.16 and 17)
When reassembling, first reattach the rack
link, and next fit the boss p and hook q of
the slide chassis assembly to the hole of the
main chassis, and engage the two joints o.
CAUTION:
It is not necessary to remove the head
and the tape guide.
REFERENCE:

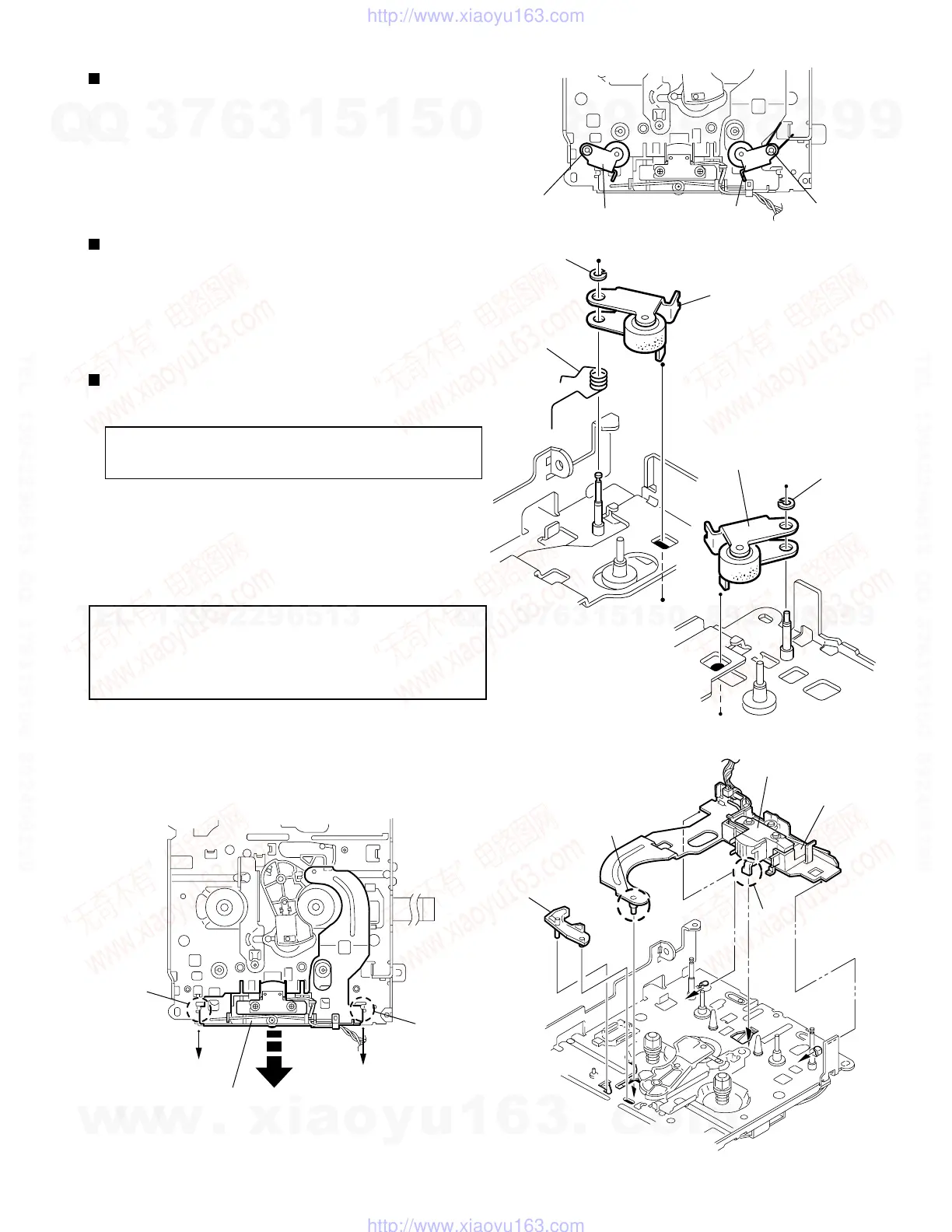

Fig.13
Fig.17
Fig.14
Fig.15
Fig.16
Polywasher
Polywasher
Pinch arm
(F) assembly
Pinch arm
(R) assembly
Polywasher
Pinch arm (F) assembly
Compulsion spring
Pinch arm
(R) assembly
Polywasher
Slide chassis assembly
Joint o
Joint o
Boss p
Hook q
Rack link
Head
Tape guide
