1-12 (No.MA089)

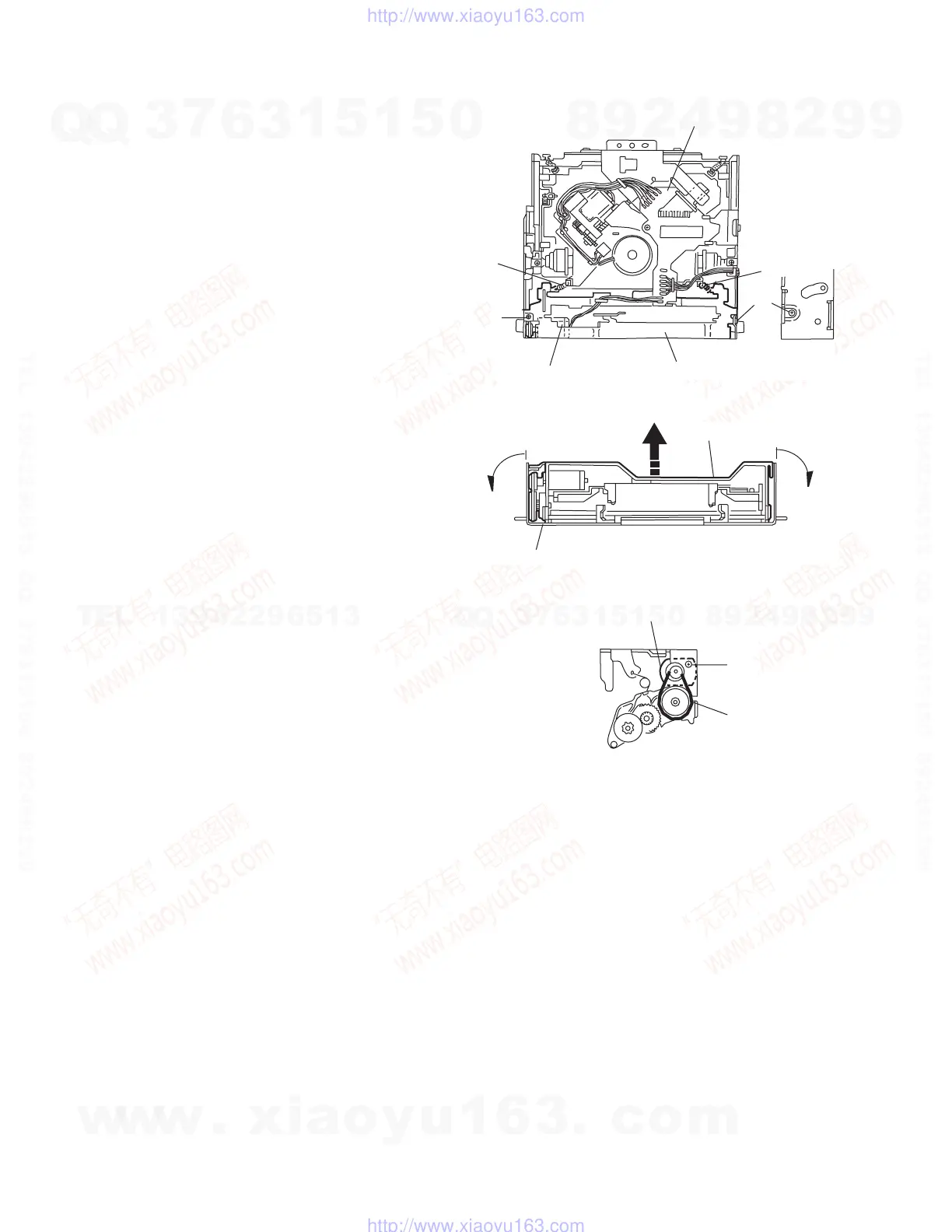

3.2.2 Removing the loading motor
(See Fig.3 to 5)
• Rrior to performing the following procedure, remove the CD
mechanism control board.
(1) Remove the two springs f attaching the CD mechanism as-
sembly and the front bracket.
(2) Remove the two screws B and the front bracket while pull-
ing the flame outward.
(3) Remove the belt and the screw C from the loading motor.
Fig.3
Fig.4
Fig.5
CD mechanism control board
Loading motor
Front bracket
f
B
f
Front bracket
Pull outward Pull outward
Flame
C
Loading motor
Belt
