10

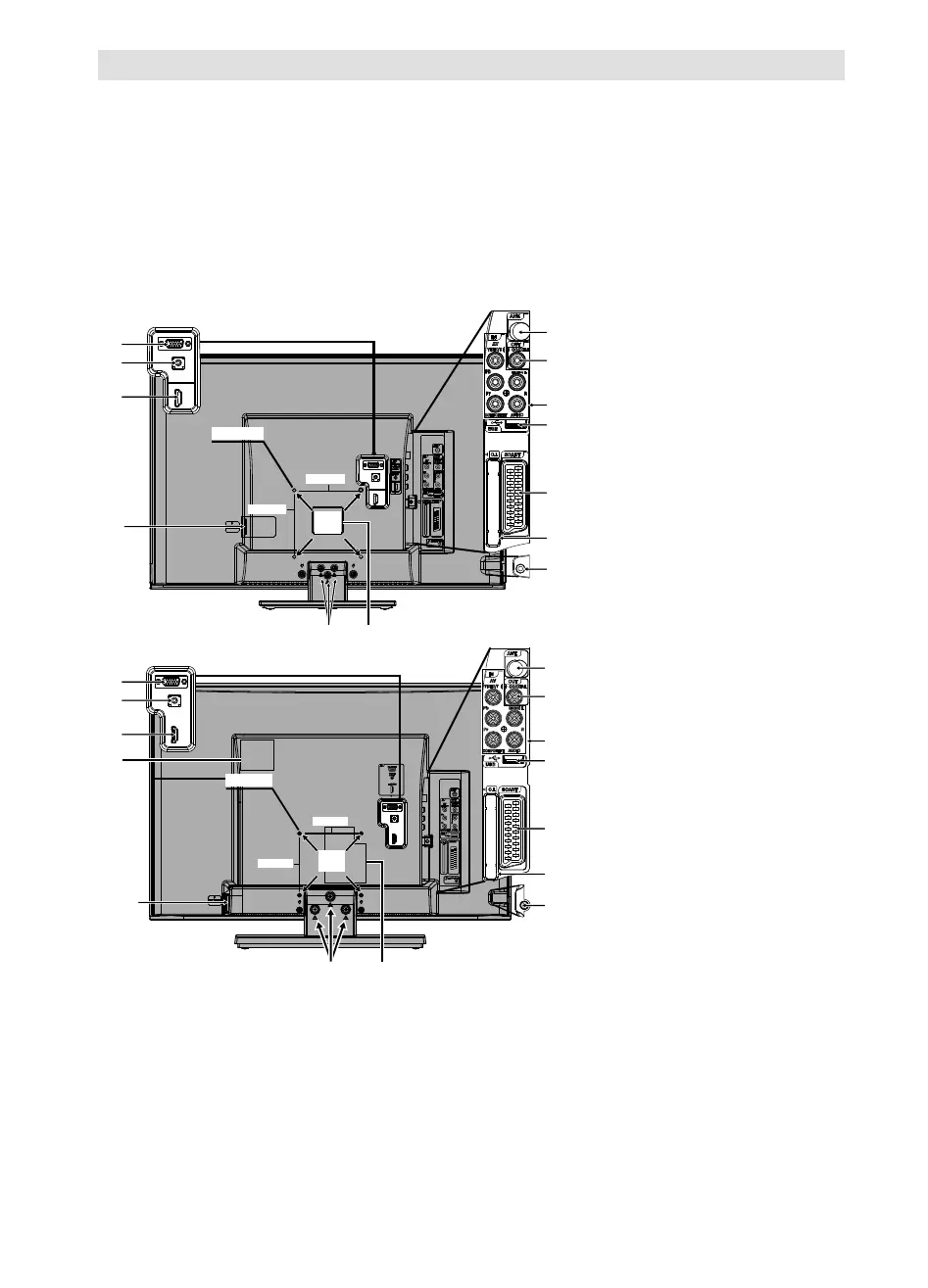

Antenna connection
Note: Before you connect other appliances:
To avoid potentially damaging your set, make sure all items are switched off and disconnected from the
mains power when you make the connections.
Arrange the desired connection.
When you have finished making the connections, reconnect the mains power to the unit and switch it
back on.
Connect your antenna as shown below (A). Connections to other equipment is explained further on
P.24-25. If you have problems with reception, consult a specialist of antenna.
•
•
•
(A)
Antenna: Connect an antenna.
The built-in tuner receives all
analogue cable programmes
and DVB-T/-C channels.
(B) DIGITAL AUDIO COAXIAL
output: digital audio output
(C) AV/COMPONENT input:
Input for analogue AV-Signal/
Component-Signal. See P.24,
25
Note: AV-AUDIO input is
sharing with COMPONENT
AUDIO input.
(D) USB input: See P.22-23.
(E) Scart socket: For the
connection of scart cable. See
P.25.
(F) C.I. slot: for CA- module
(CAM) (if PayTV-provider
supports this).
Note: To prevent malfunctions
and damages, be sure to turn
off the TV before inserting or
removing the CAM card.
(G) HEADPHONE jack: Plug
headphones with a mini plug
(3.5 mm) into this jack.
(H) PC-INPUT (PC): See P.24.
(I) PC/DVI AUDIO input: See
P.24.
(J) HDMI/DVI input: See P.24.
(K) Power supply: Connect the
supplied power cable to an AC
220-240V/50Hz mains power
supply only - do not attempt
to connect it to any other type
of supply. Never try to repair a
damaged AC power cord with
isolation-tape - this should
be repaired by a specialist or
replaced. Do not let your pet
loose near the cable. Animals
biting into the cable could
receive a fatal electric shock,
and could cause a hazard to
others.
100 mm
100 mm
M4 x 10
100 mm
M4 x 10
100 mm
Back Side
(L)
(M)
(K)
(H)
(I)
(J)
(A)
(B)
(C)
(D)
(E)
(F)
(G)
(A)
(B)
(C)
(D)
(E)
(F)
(G)
(L)
(M)
(H)
(I)
(J)
(K)
LT-22...
LT-24...
(N)
(N)
(N)
(L) Bracket holes: Fix a wall mounting bracket (not supplied) here.
(M) To hang the television on a wall, remove these screws and then remove the stand.
Before performing work spread cushioning over an area to lay the TV on.
(N) Service connector cover: Please do not open this cover. There is a socket only for service purpose inside.
