JVC LT-32A200 Service Manual

(No.YA712<Rev.002>)1-11
(S-14)
(S-13)
(S-12)
Hook
(S-15)

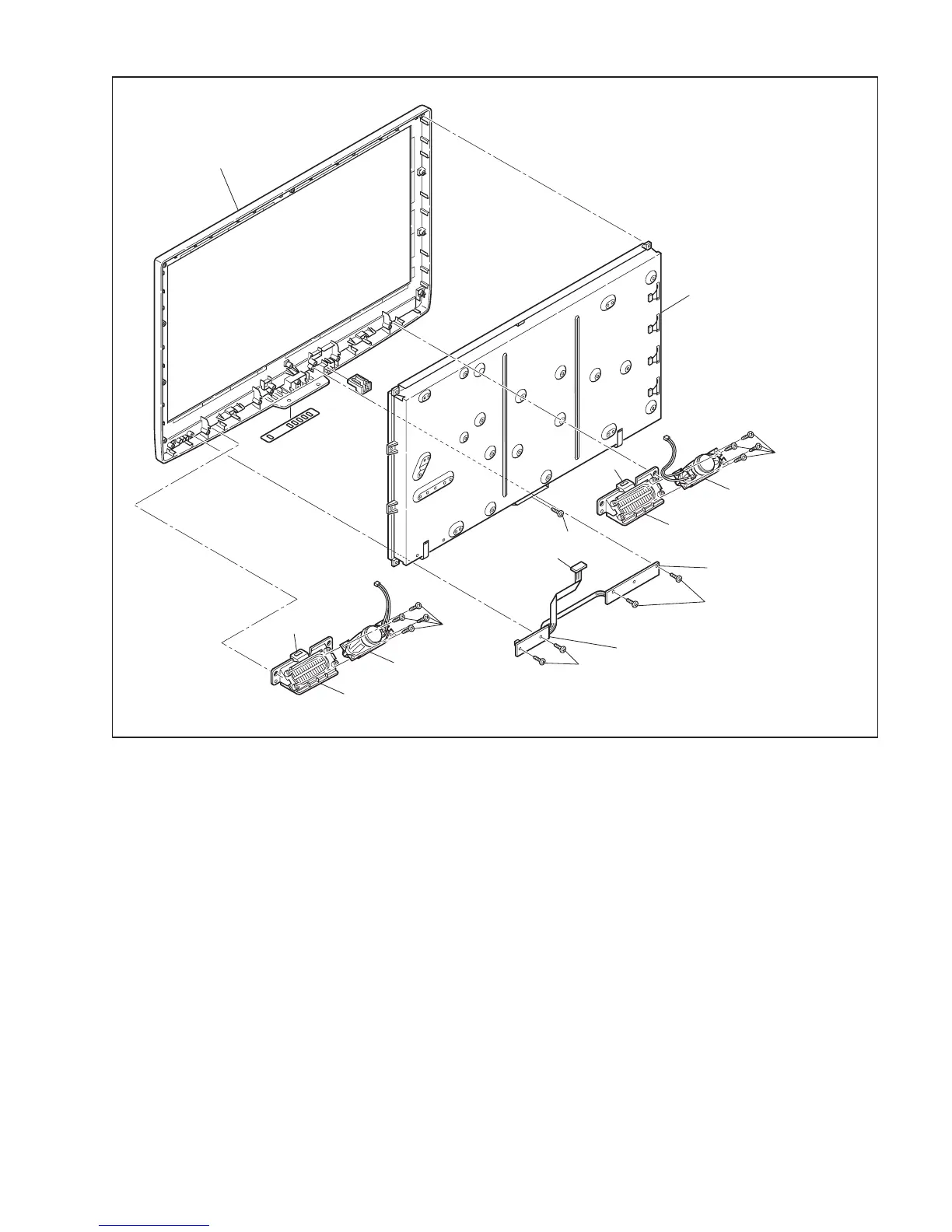

[13] LCD Module
Assembly
[11] IR Sensor CBA
[12] Function CBA
[8] Speaker Holder (R)
[8] Speaker Holder (L)
[10] Junction
CBA
[9] Speaker
[14] Front Cabinet
(S-12)
Hook
[9] Speaker
Fig. D3

JVC LT-32A200 Specifications

General

HD type	Not supported
Display diagonal	31.5 \
Progressive scan	No
Display brightness	360 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Viewing angle, horizontal	170 °
RF ports quantity	1
Composite video out	0
Sleep timer	Yes
Product color	Black
Panel mounting interface	200 x 100 mm
RMS rated power	20 W
Analog signal format system	NTSC
