IMPORTANT PREPARE USE SETTING TROUBLE?
devices
VCR / DVD / other devices
z Use S-VIDEO g “S-In” (P. 24)
z Use S-VIDEO g “S-In” (P. 24)
z Select dubbing sources
g “Dubbing” (P. 24)
z Connect a decoder
g “Decoder(EXT-2)” (P. 38)
z Use S-VIDEO g “S-In” (P. 24)
z “Component Auto Select” g (P. 38)
z “HDMI Setting” g (P. 38)
z EXT-6 and EXT-7 inputs do not support
analogue sound.
z Use HDMI CEC
g “What is “HDMI CEC”?” (P. 43)
AUDIO OUT
Listening to the TV on external speakers
DIGITAL AUDIO OUT
Listening to the digital audio of digital
channels on external speakers
z The sound from analogue channels and
external devices cannot be output.
EXT-1
Watching videos
Output j Input h
• Composite signal
• Sound L / R
• Composite signal
/ RGB / S-VIDEO
• Sound L / R
EXT-2
Dubbing videos using
“T-V LINK”
Output j Input h
• Composite signal
• Sound L / R
• Composite signal
/ RGB / S-VIDEO
• Sound L / R
EXT-3
Watching videos
Output j Input h
• Composite signal
/ S-VIDEO
• Sound L / R
EXT-4
Watching DVDs
Output j Input h
• Component signal
(P. 46)
• Sound L / R
EXT-5
EXT-6
EXT-7
Connecting HDMI
device
Output j Input h
• HDMI signal
(P. 46)
Output j
• Sound L / R
Output j
• Digital sound
(P. 46)
: Signal direction

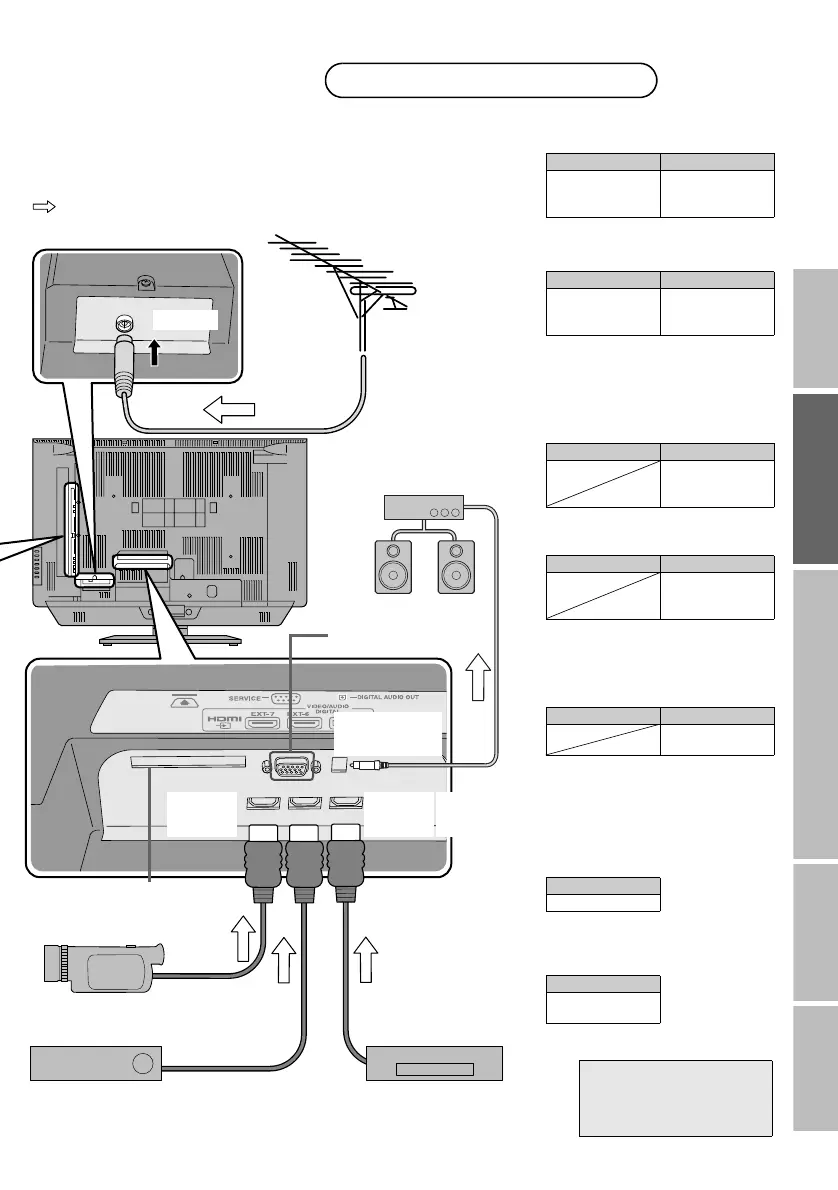

HD camcorder
(HDMI compatible)
EXT-7
(HDMI)
EXT-5
(HDMI)
Satellite broadcast /
Digital broadcast tuner
(HDMI compatible)
AERIAL
CI (Common Interface) slot
“Watch pay-TV digital channels”
(P. 8)
 DVI devices g “Connect DVI devices” (P. 42)
 “T-V LINK” g “What is “T-V LINK”?” (P. 11)
Amplifier
(Digital optical
compatible)
DIGITAL
AUDIO OUT
Not available.
(For service
adjustments)
EXT-6
(HDMI)
DVD player
(HDMI compatible)
g
WATCHING DIGITAL CHANNELS
““Dolby Digital” output
from the DIGITAL AUDIO
OUT terminal” (P. 22)
