(No.MB160)1-25
3.3 CD mechanism section
• Prior to performing the following procedures, remove the CD mechanism holder assembly from the CD changer mechanism assem-
bly. (See "3.2.6 Removing the CD mechanism holder assembly".)
3.3.1 Removing the pickup unit
(See Fig.1)
(1) Remove the cut-washer on the feed gear sleeve and pull
out the feed gear.
(2) Remove the two screws A fixing the pickup shaft.
(3) Remove the pickup unit.
3.3.2 Removing the motor board
(See Fig.2.)
(1) Unsolder the motor terminal on the motor board.
(2) Remove the motor board.
3.3.3 Removing the feed motor
(See Fig.1.)
• Prior to performing the following procedures, remove the CD
motor board.
(1) Remove the two screws B and remove the feed motor.
(2) From the bottom side of the CD mechanism holder assem-
bly, take out the feed motor.
3.3.4 Removing the spindle motor
(See Fig.2.)
Reference:
The spindle motor cannot be removed as a single unit.
When removing the spindle motor, change the chassis and
turntable together as a unit.

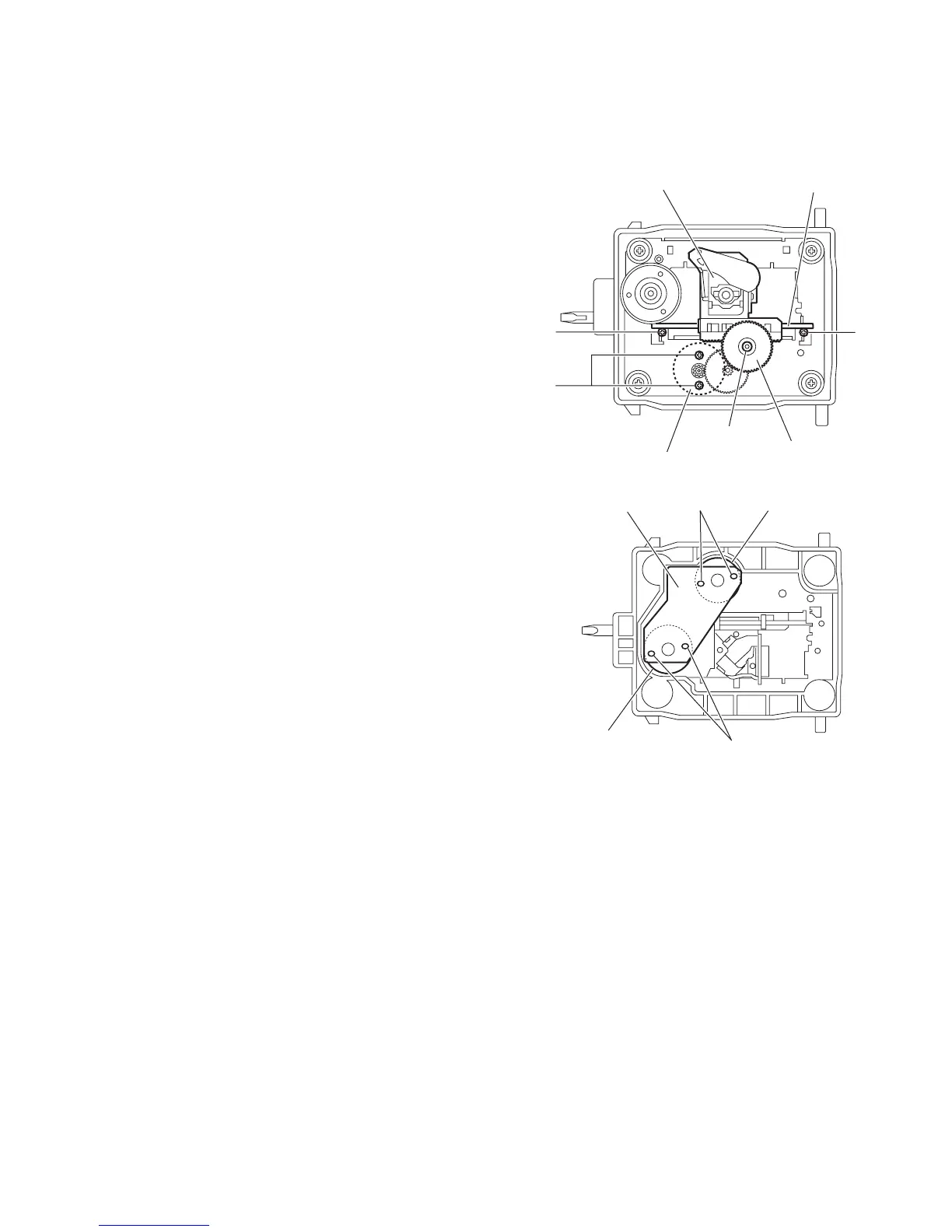

Fig.1
Fig.2
Pickup unit
Cut-washer
Feed Gear
Pickup shaft
AA
B
Feed motor
Unsolder
Unsolder
Feed motor
Spindle motor
Motor board
To Next Page
