JVC MX-GC5 Service Manual

3-4

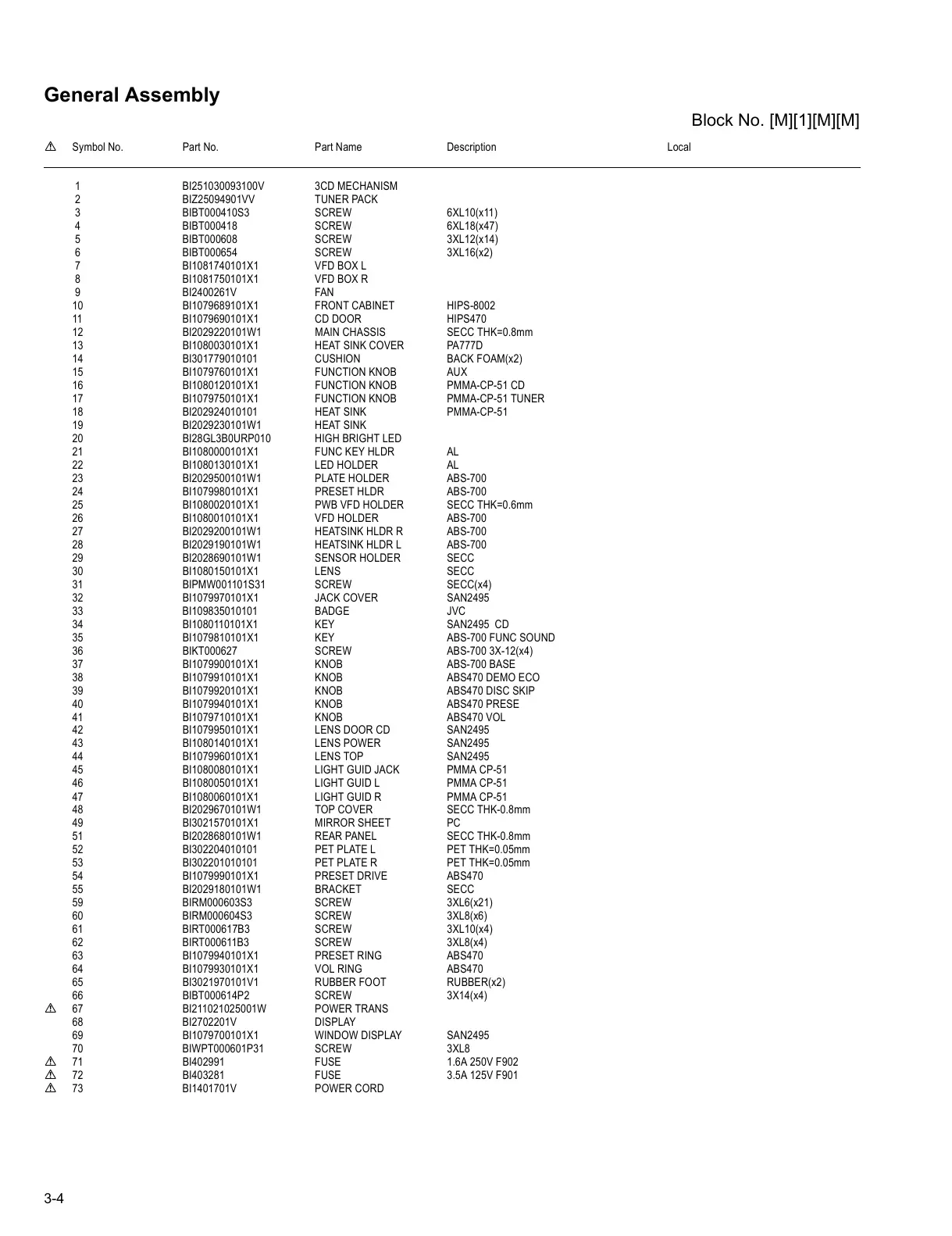

General Assembly
Block No. [M][1][M][M]
 Symbol No. Part No. Part Name Description Local
1 BI251030093100V 3CD MECHANISM
2 BIZ25094901VV TUNER PACK
3 BIBT000410S3 SCREW 6XL10(x11)
4 BIBT000418 SCREW 6XL18(x47)
5 BIBT000608 SCREW 3XL12(x14)
6 BIBT000654 SCREW 3XL16(x2)
7 BI1081740101X1 VFD BOX L
8 BI1081750101X1 VFD BOX R
9 BI2400261V FAN
10 BI1079689101X1 FRONT CABINET HIPS-8002
11 BI1079690101X1 CD DOOR HIPS470
12 BI2029220101W1 MAIN CHASSIS SECC THK=0.8mm
13 BI1080030101X1 HEAT SINK COVER PA777D
14 BI301779010101 CUSHION BACK FOAM(x2)
15 BI1079760101X1 FUNCTION KNOB AUX
16 BI1080120101X1 FUNCTION KNOB PMMA-CP-51 CD
17 BI1079750101X1 FUNCTION KNOB PMMA-CP-51 TUNER
18 BI202924010101 HEAT SINK PMMA-CP-51
19 BI2029230101W1 HEAT SINK
20 BI28GL3B0URP010 HIGH BRIGHT LED
21 BI1080000101X1 FUNC KEY HLDR AL
22 BI1080130101X1 LED HOLDER AL
23 BI2029500101W1 PLATE HOLDER ABS-700
24 BI1079980101X1 PRESET HLDR ABS-700
25 BI1080020101X1 PWB VFD HOLDER SECC THK=0.6mm
26 BI1080010101X1 VFD HOLDER ABS-700
27 BI2029200101W1 HEATSINK HLDR R ABS-700
28 BI2029190101W1 HEATSINK HLDR L ABS-700
29 BI2028690101W1 SENSOR HOLDER SECC
30 BI1080150101X1 LENS SECC
31 BIPMW001101S31 SCREW SECC(x4)
32 BI1079970101X1 JACK COVER SAN2495
33 BI109835010101 BADGE JVC
34 BI1080110101X1 KEY SAN2495 CD
35 BI1079810101X1 KEY ABS-700 FUNC SOUND
36 BIKT000627 SCREW ABS-700 3X-12(x4)
37 BI1079900101X1 KNOB ABS-700 BASE
38 BI1079910101X1 KNOB ABS470 DEMO ECO
39 BI1079920101X1 KNOB ABS470 DISC SKIP
40 BI1079940101X1 KNOB ABS470 PRESE
41 BI1079710101X1 KNOB ABS470 VOL
42 BI1079950101X1 LENS DOOR CD SAN2495
43 BI1080140101X1 LENS POWER SAN2495
44 BI1079960101X1 LENS TOP SAN2495
45 BI1080080101X1 LIGHT GUID JACK PMMA CP-51
46 BI1080050101X1 LIGHT GUID L PMMA CP-51
47 BI1080060101X1 LIGHT GUID R PMMA CP-51
48 BI2029670101W1 TOP COVER SECC THK-0.8mm
49 BI3021570101X1 MIRROR SHEET PC
51 BI2028680101W1 REAR PANEL SECC THK-0.8mm
52 BI302204010101 PET PLATE L PET THK=0.05mm
53 BI302201010101 PET PLATE R PET THK=0.05mm
54 BI1079990101X1 PRESET DRIVE ABS470
55 BI2029180101W1 BRACKET SECC
59 BIRM000603S3 SCREW 3XL6(x21)
60 BIRM000604S3 SCREW 3XL8(x6)
61 BIRT000617B3 SCREW 3XL10(x4)
62 BIRT000611B3 SCREW 3XL8(x4)
63 BI1079940101X1 PRESET RING ABS470
64 BI1079930101X1 VOL RING ABS470
65 BI3021970101V1 RUBBER FOOT RUBBER(x2)
66 BIBT000614P2 SCREW 3X14(x4)
 67 BI211021025001W POWER TRANS
68 BI2702201V DISPLAY
69 BI1079700101X1 WINDOW DISPLAY SAN2495
70 BIWPT000601P31 SCREW 3XL8
 71 BI402991 FUSE 1.6A 250V F902
 72 BI403281 FUSE 3.5A 125V F901
 73 BI1401701V POWER CORD
