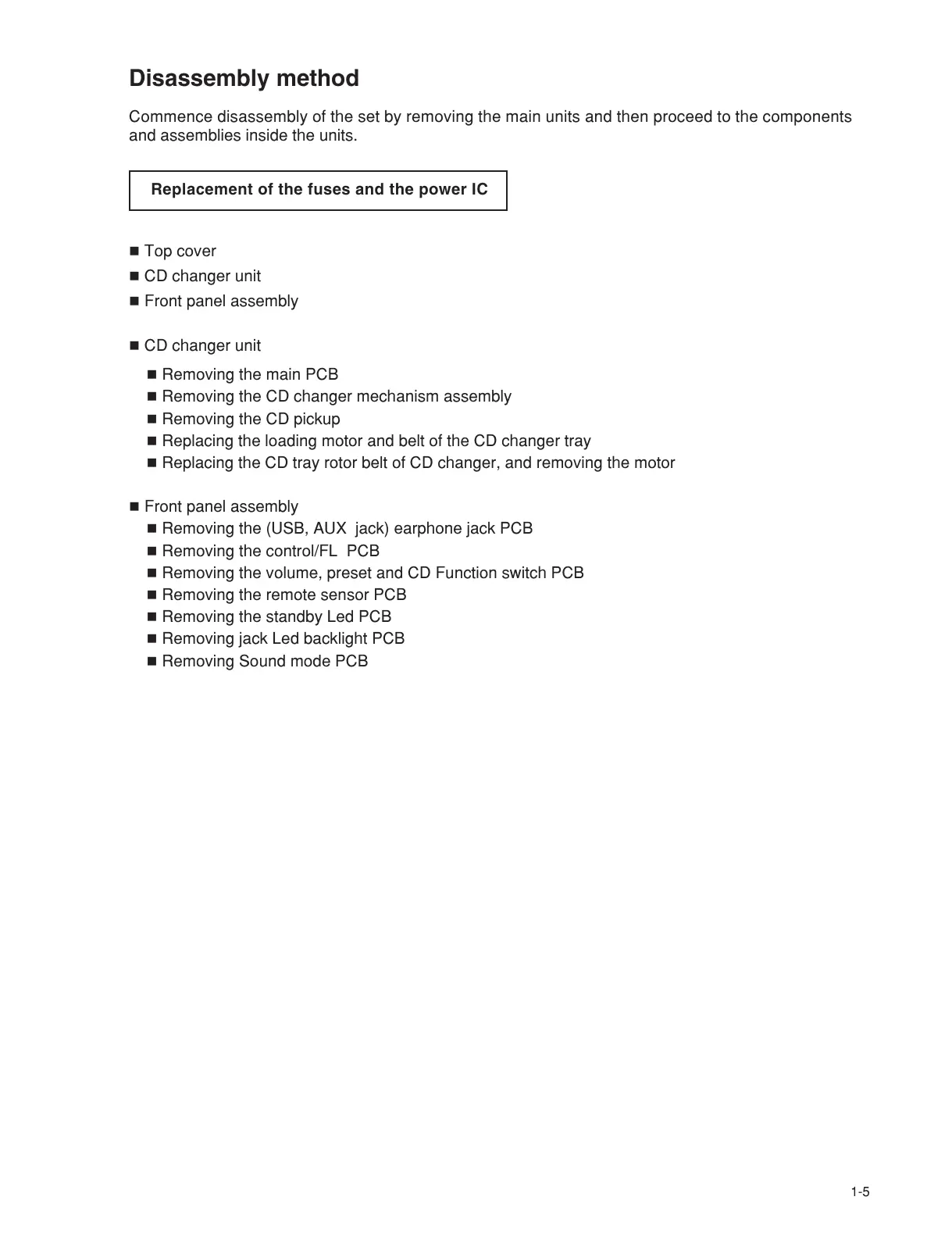

Disassembly method
Commence disassembly of the set by removing the main units and then proceed to the components
and assemblies inside the units.
Replacement of the fuses and the power IC
Top cover
CD changer unit
Front panel assembly
CD changer unit
Removing the main PCB
Removing the CD changer mechanism assembly
Removing the CD pickup
Replacing the loading motor and belt of the CD changer tray
Replacing the CD tray rotor belt of CD changer, and removing the motor
Front panel assembly
Removing the (USB, AUX jack) earphone jack PCB
Removing the control/FL PCB
Removing the volume, preset and CD Function switch PCB
Removing the remote sensor PCB
Removing the standby Led PCB
Removing jack Led backlight PCB
Removing Sound mode PCB
1-5
