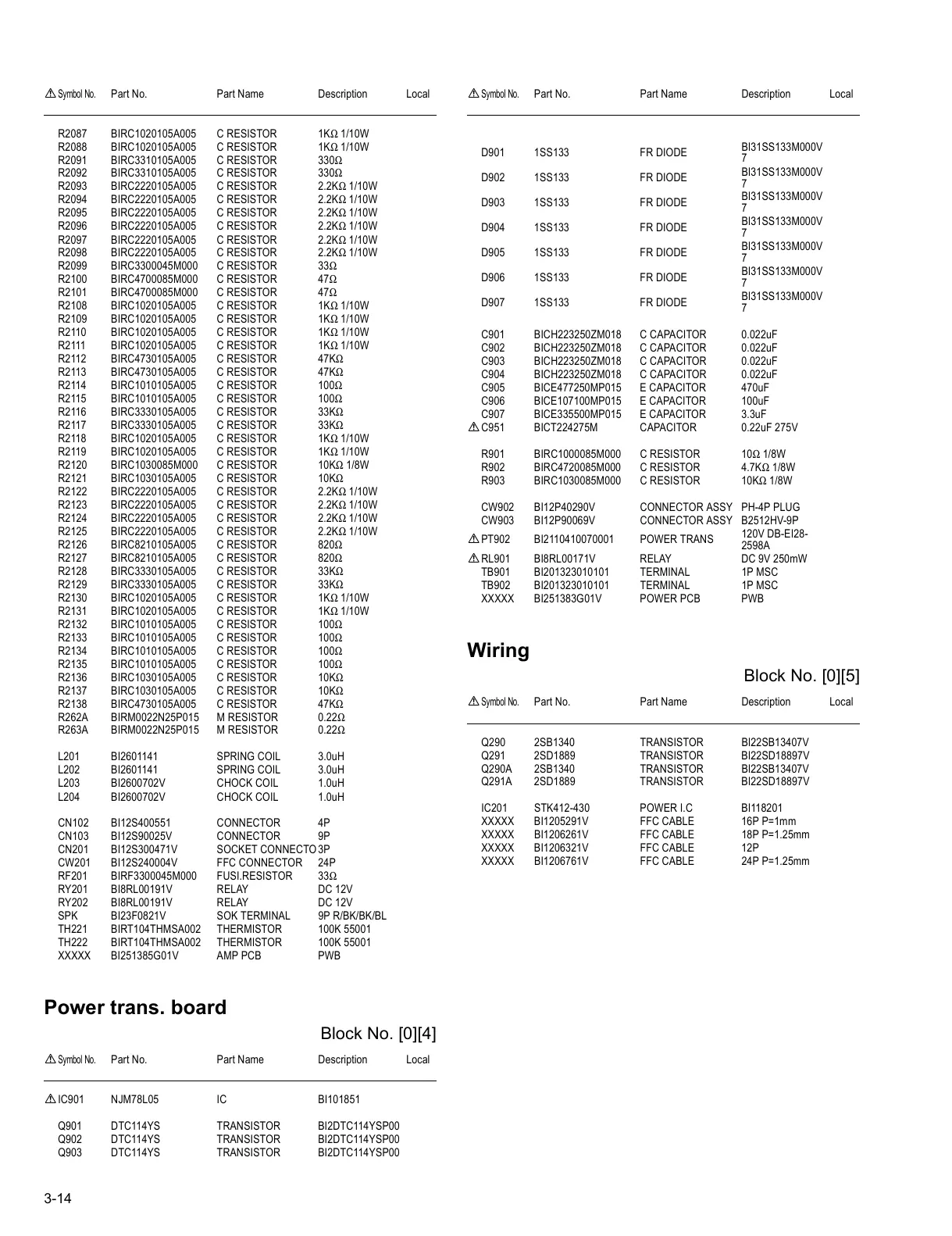

JVC MX-GC5 Service Manual

3-14
Power trans. board
Block No. [0][4]
Wiring
Block No. [0][5]
R2087 BIRC1020105A005 C RESISTOR 1K Ω 1/10W
R2088 BIRC1020105A005 C RESISTOR 1K
Ω 1/10W
R2091 BIRC3310105A005 C RESISTOR 330
Ω
R2092 BIRC3310105A005 C RESISTOR 330 Ω
R2093 BIRC2220105A005 C RESISTOR 2.2K Ω 1/10W
R2094 BIRC2220105A005 C RESISTOR 2.2K
Ω 1/10W
R2095 BIRC2220105A005 C RESISTOR 2.2K
Ω 1/10W
R2096 BIRC2220105A005 C RESISTOR 2.2K
Ω 1/10W
R2097 BIRC2220105A005 C RESISTOR 2.2K
Ω 1/10W
R2098 BIRC2220105A005 C RESISTOR 2.2K
Ω 1/10W
R2099 BIRC3300045M000 C RESISTOR 33
Ω
R2100 BIRC4700085M000 C RESISTOR 47 Ω
R2101 BIRC4700085M000 C RESISTOR 47 Ω
R2108 BIRC1020105A005 C RESISTOR 1K Ω 1/10W
R2109 BIRC1020105A005 C RESISTOR 1K
Ω 1/10W
R2110 BIRC1020105A005 C RESISTOR 1K
Ω 1/10W
R2111 BIRC1020105A005 C RESISTOR 1K
Ω 1/10W
R2112 BIRC4730105A005 C RESISTOR 47K
Ω
R2113 BIRC4730105A005 C RESISTOR 47K Ω
R2114 BIRC1010105A005 C RESISTOR 100 Ω
R2115 BIRC1010105A005 C RESISTOR 100 Ω
R2116 BIRC3330105A005 C RESISTOR 33K Ω
R2117 BIRC3330105A005 C RESISTOR 33K Ω
R2118 BIRC1020105A005 C RESISTOR 1K Ω 1/10W
R2119 BIRC1020105A005 C RESISTOR 1K
Ω 1/10W
R2120 BIRC1030085M000 C RESISTOR 10K
Ω 1/8W
R2121 BIRC1030105A005 C RESISTOR 10K
Ω
R2122 BIRC2220105A005 C RESISTOR 2.2K Ω 1/10W
R2123 BIRC2220105A005 C RESISTOR 2.2K
Ω 1/10W
R2124 BIRC2220105A005 C RESISTOR 2.2K
Ω 1/10W
R2125 BIRC2220105A005 C RESISTOR 2.2K
Ω 1/10W
R2126 BIRC8210105A005 C RESISTOR 820
Ω
R2127 BIRC8210105A005 C RESISTOR 820 Ω
R2128 BIRC3330105A005 C RESISTOR 33K Ω
R2129 BIRC3330105A005 C RESISTOR 33K Ω
R2130 BIRC1020105A005 C RESISTOR 1K Ω 1/10W
R2131 BIRC1020105A005 C RESISTOR 1K
Ω 1/10W
R2132 BIRC1010105A005 C RESISTOR 100
Ω
R2133 BIRC1010105A005 C RESISTOR 100 Ω
R2134 BIRC1010105A005 C RESISTOR 100 Ω
R2135 BIRC1010105A005 C RESISTOR 100 Ω
R2136 BIRC1030105A005 C RESISTOR 10K Ω
R2137 BIRC1030105A005 C RESISTOR 10K Ω
R2138 BIRC4730105A005 C RESISTOR 47K Ω
R262A BIRM0022N25P015 M RESISTOR 0.22 Ω
R263A BIRM0022N25P015 M RESISTOR 0.22 Ω
L201 BI2601141 SPRING COIL 3.0uH
L202 BI2601141 SPRING COIL 3.0uH
L203 BI2600702V CHOCK COIL 1.0uH
L204 BI2600702V CHOCK COIL 1.0uH
CN102 BI12S400551 CONNECTOR 4P
CN103 BI12S90025V CONNECTOR 9P
CN201 BI12S300471V SOCKET CONNECTO 3P
CW201 BI12S240004V FFC CONNECTOR 24P
RF201 BIRF3300045M000 FUSI.RESISTOR 33
Ω
RY201 BI8RL00191V RELAY DC 12V
RY202 BI8RL00191V RELAY DC 12V
SPK BI23F0821V SOK TERMINAL 9P R/BK/BK/BL
TH221 BIRT104THMSA002 THERMISTOR 100K 55001
TH222 BIRT104THMSA002 THERMISTOR 100K 55001
XXXXX BI251385G01V AMP PCB PWB
 Symbol No. Part No. Part Name Description Local
 IC901 NJM78L05 IC BI101851
Q901 DTC114YS TRANSISTOR BI2DTC114YSP00
Q902 DTC114YS TRANSISTOR BI2DTC114YSP00
Q903 DTC114YS TRANSISTOR BI2DTC114YSP00
 Symbol No. Part No. Part Name Description Local
D901 1SS133 FR DIODE
BI31SS133M000V
7
D902 1SS133 FR DIODE
BI31SS133M000V
7
D903 1SS133 FR DIODE
BI31SS133M000V
7
D904 1SS133 FR DIODE
BI31SS133M000V
7
D905 1SS133 FR DIODE
BI31SS133M000V
7
D906 1SS133 FR DIODE
BI31SS133M000V
7
D907 1SS133 FR DIODE
BI31SS133M000V
7
C901 BICH223250ZM018 C CAPACITOR 0.022uF
C902 BICH223250ZM018 C CAPACITOR 0.022uF
C903 BICH223250ZM018 C CAPACITOR 0.022uF
C904 BICH223250ZM018 C CAPACITOR 0.022uF
C905 BICE477250MP015 E CAPACITOR 470uF
C906 BICE107100MP015 E CAPACITOR 100uF
C907 BICE335500MP015 E CAPACITOR 3.3uF
 C951 BICT224275M CAPACITOR 0.22uF 275V
R901 BIRC1000085M000 C RESISTOR 10
Ω 1/8W
R902 BIRC4720085M000 C RESISTOR 4.7K
Ω 1/8W
R903 BIRC1030085M000 C RESISTOR 10K
Ω 1/8W
CW902 BI12P40290V CONNECTOR ASSY PH-4P PLUG
CW903 BI12P90069V CONNECTOR ASSY B2512HV-9P
 PT902 BI2110410070001 POWER TRANS
120V DB-EI28-
2598A
 RL901 BI8RL00171V RELAY DC 9V 250mW
TB901 BI201323010101 TERMINAL 1P MSC
TB902 BI201323010101 TERMINAL 1P MSC
XXXXX BI251383G01V POWER PCB PWB
 Symbol No. Part No. Part Name Description Local
Q290 2SB1340 TRANSISTOR BI22SB13407V
Q291 2SD1889 TRANSISTOR BI22SD18897V
Q290A 2SB1340 TRANSISTOR BI22SB13407V
Q291A 2SD1889 TRANSISTOR BI22SD18897V
IC201 STK412-430 POWER I.C BI118201
XXXXX BI1205291V FFC CABLE 16P P=1mm
XXXXX BI1206261V FFC CABLE 18P P=1.25mm
XXXXX BI1206321V FFC CABLE 12P
XXXXX BI1206761V FFC CABLE 24P P=1.25mm
 Symbol No. Part No. Part Name Description Local
