JVC MX-GC5 Service Manual

Fig.5

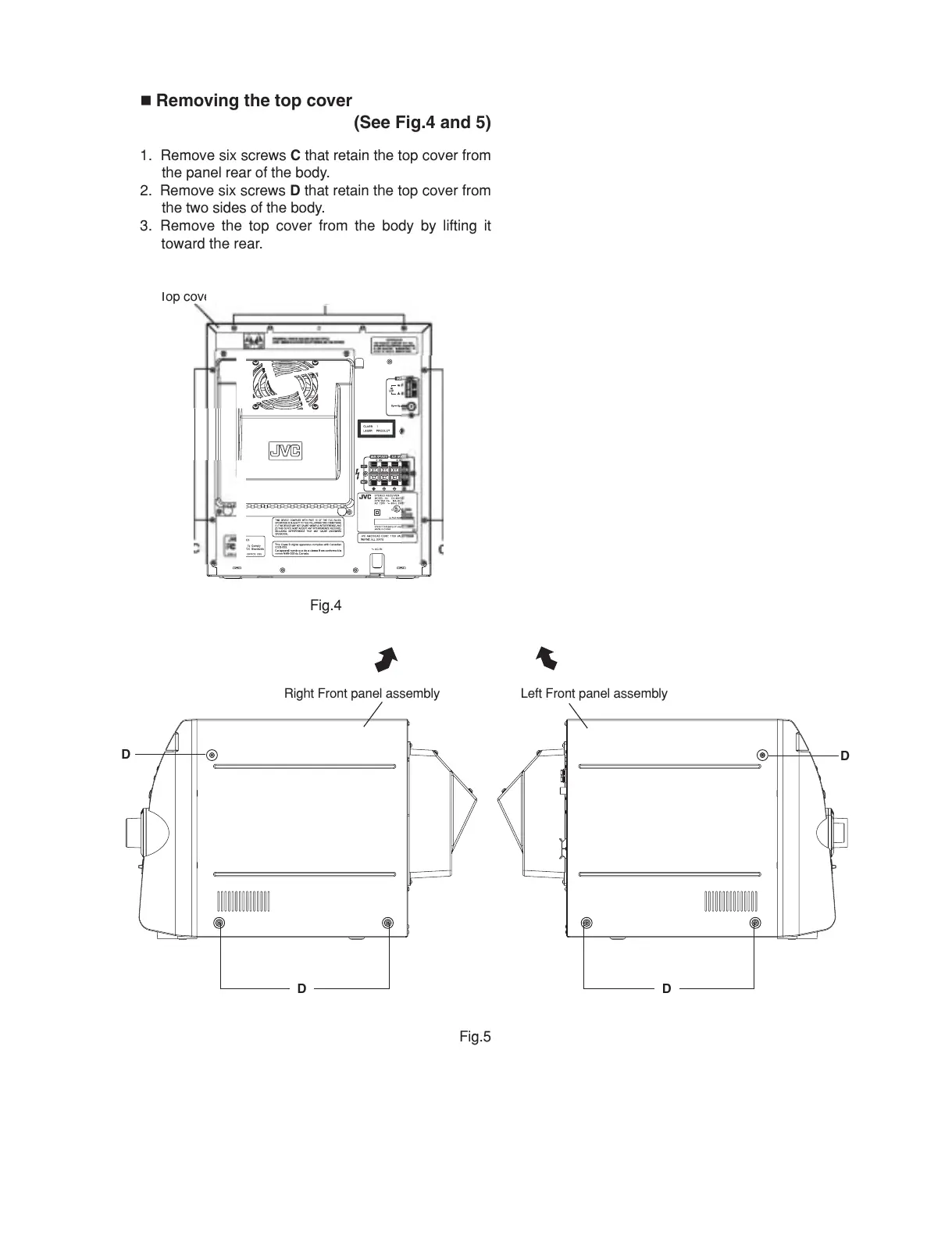

 Removing the top cover
(See Fig.4 and 5)
1. Remove six screws C that retain the top cover from
the panel rear of the body.
2.
Remove six screws D that retain the top cover from
the two sides of the body.
3. Remove the top cover from the body by lifting it
toward the rear.
Top cover
C
C
Fig.4
Right Front panel assembly Left Front panel assembly
D D
D
D
